1100 Series industrial Regulator

Single stage cylinder regulator for high-pressure industrial applications

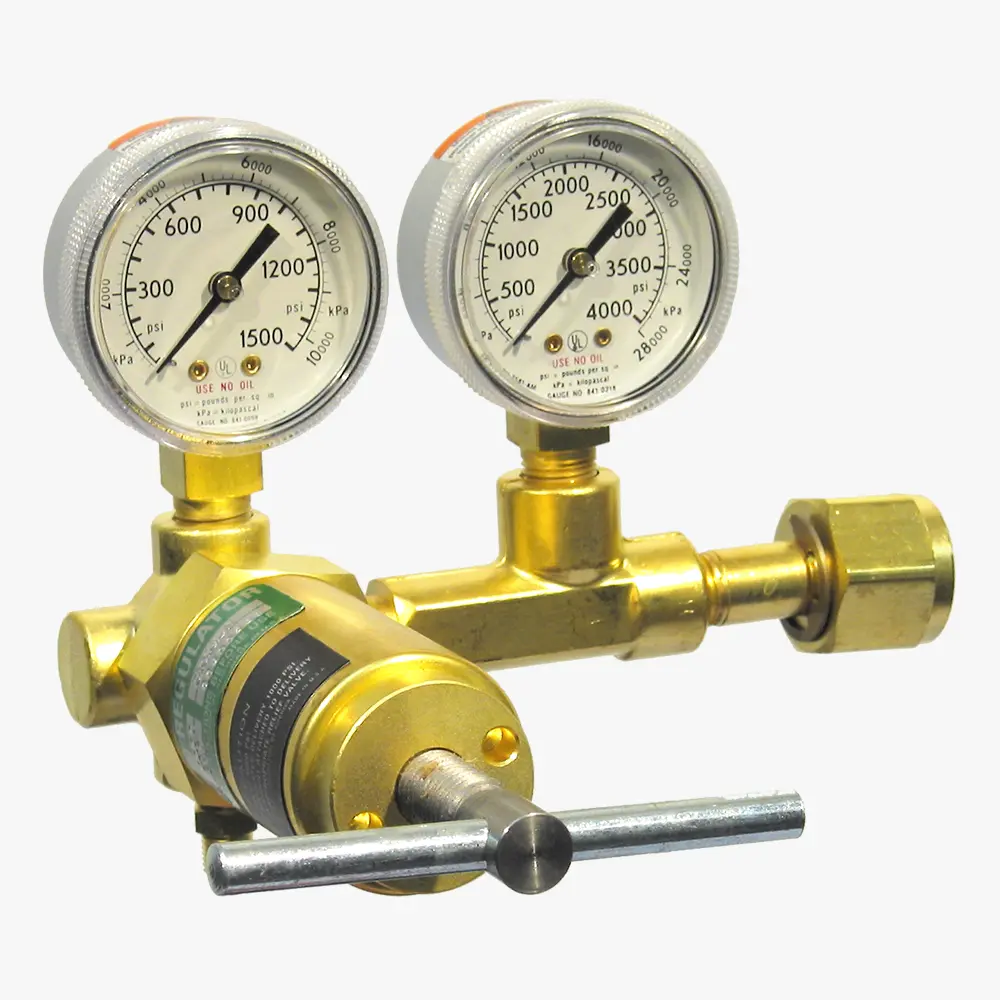

8061130-01-1 shown
Single stage cylinder regulator for high-pressure industrial applications

The1100 Series industrial regulator provides primary control of high pressure gas sources requiring outlet pressures up to 1000 PSIG (70 BAR). The heavy-duty internals ensure steady and reliable pressure control even at high delivery pressures. CONCOA recommends the 1400 Series regulator for primary control of high-pressure gas sources for industrial gas applications requiring ultra-high delivery pressures.

Note: This item has been discontinued. Please see 1400 Series Industrial Regulators.

  • Indirect gas flow path ensures precise flow control
  • 36 in copper tubing supports installation flexibility
  • Tee-screw style handle allows very fine pressure adjustment
  • Max inlet pressure: 3000 PSIG (210 BAR)
  • Body: Forged brass
  • Bonnet: Brass barstock
  • Gauges: 2 in (50 mm) diameter brass; 0-4000 PSIG (0-28,000kPa) inlet and 0-4000 PSIG (0-28,000kPa) outlet
  • Outlet connection: 36 in flexible copper tubing with 1/8 in MNPT
  • Max delivery pressure: 1000 PSIG (70 BAR)
  • Seat: PTFE
  • Cv: 0.1
  • Filter: 25-micron glass wool with sintered Monel® screen
  • Temperature range: -40°F to 140°F (-40°C to 60°C)
  • Diaphragm: Chloroprene
  • Conformances: Cleanliness meets or exceeds CGA G-4.1; ANSI/ASME B40.1
◂ scroll to see more ▸
Part NumberDescription
8061130-01-1Cylinder Regulator for Oxygen Service Featuring Tee-screw Pressure Adjustment and CGA 540 Inlet Connection
8061135-01-1Cylinder Regulator for Inert (Argon, Nitrogen, Helium) Service Featuring Tee-screw Pressure Adjustment and CGA 580 Inlet Connection
8061136-01-1Cylinder Regulator for Nitrogen Service Featuring Tee-screw Pressure Adjustment and CGA 555 Inlet Connection
8061143-01-1Cylinder Regulator for Hydrogen Service Featuring Tee-screw Pressure Adjustment and 350 Inlet Connection
8061189-01-1Cylinder Regulator for Industrial Air Service Featuring Tee-screw Pressure Adjustment and CGA 590 Inlet Connection
◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
Regulators Installation and Operation Instructions
English
ADI1608
L
