307 Series Regulator

Four-port, chrome-plated brass barstock, rear entry point-of-use regulator for high purity inert gases

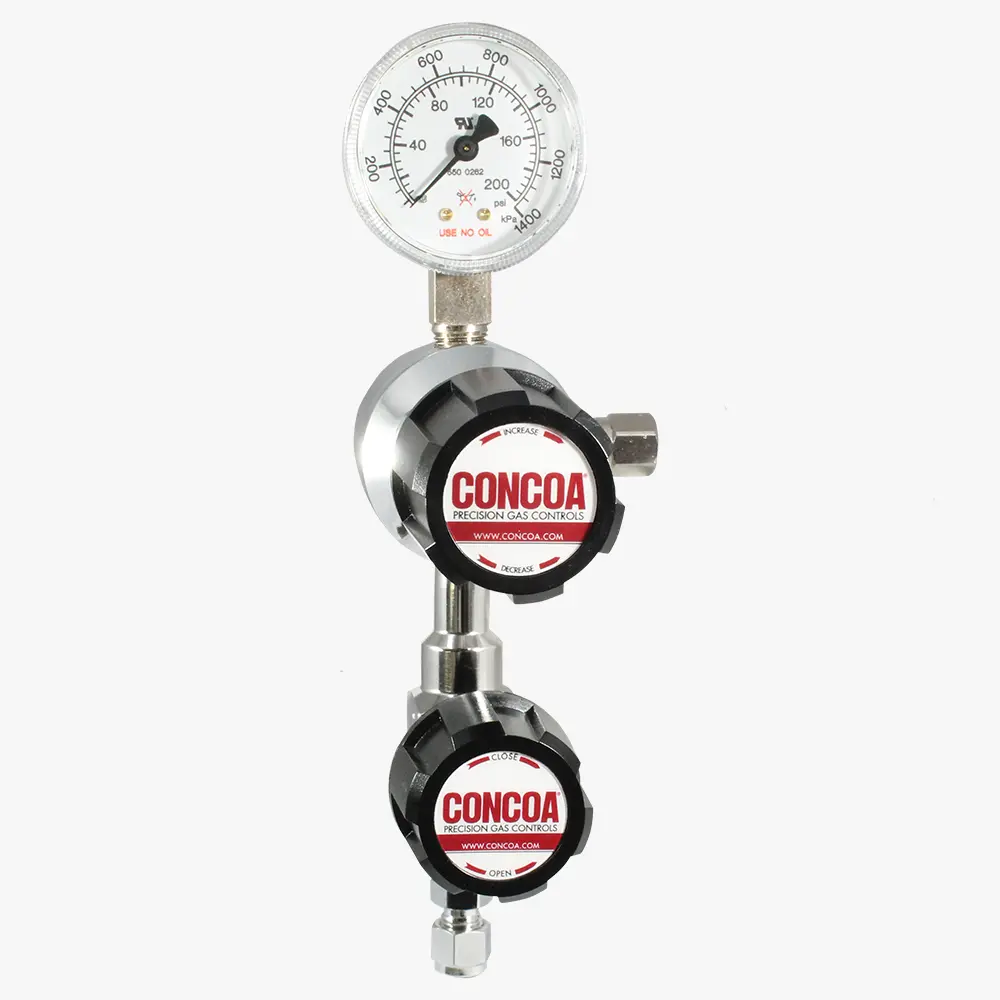

3074031-01-M1L shown
Four-port, chrome-plated brass barstock, rear entry point-of-use regulator for high purity inert gases

The 307 Series regulator provides secondary pressure control of non-corrosive, liquified, and high purity (up to grade 5.5) inert gases. The regulator is also suitable for point-of-use pressure control in high purity gas distribution systems or applications that can tolerate fluctuations in outlet pressure due to diminishing inlet supply or where inlet pressure is constant or under 500 PSIG (34 BAR). Like almost all CONCOA regulators, the maximum inlet pressure for the 307 Series regulator is at least 3000 PSIG (210 BAR) or greater, depending on system configuration. The CONCOA 307 Series rear entry regulator is often used on point-of-use panels and laboratory installations.

  • 316L stainless steel diaphragm prevents inboard diffusion
  • CAPSULE® seat design features integral 360° filtration
  • Low wetted surface area minimizes purge requirements
  • Spectometric helium leak check verifies leak integrity
  • Max inlet pressure (bare body): 3000 PSIG (210 BAR)
  • Body: Chrome-plated brass barstock
  • Bonnet: Chrome-plated, die-cast zinc
  • Gauges: 2 in (50 mm) diameter plated case
  • Seat: PTFE
  • Filter: 10-micron sintered bronze
  • Temperature range: -40°F to 140°F (-40°C to 60°C)
  • Diaphragm: 316L stainless steel
  • Cv: 0.1
  • Helium leak integrity: 1 x 10⁻⁸ scc/sec
  • Internal seals: PTFE
  • Ports (bare body): 1/4 in FNPT
  • Conformances: Cleanliness meets or exceeds CGA G-4.1; PED 2014/68/EU; ANSI/ASME B40.1; CRN OH5216
◂ scroll to see more ▸

See catalog page for ordering information.

◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
307 Series Regulators Catalog Page
English
RS307S
AH
Download
Regulators, Reguladores, Détendeurs Installation and Operation Instructions
English, Spanish, French
ADI2062
M
Download
CRN File OH5216
English
CRNOH5216
26
