327 Series Regulator

Four-port, stainless steel barstock, point-of-use regulator for high purity gases

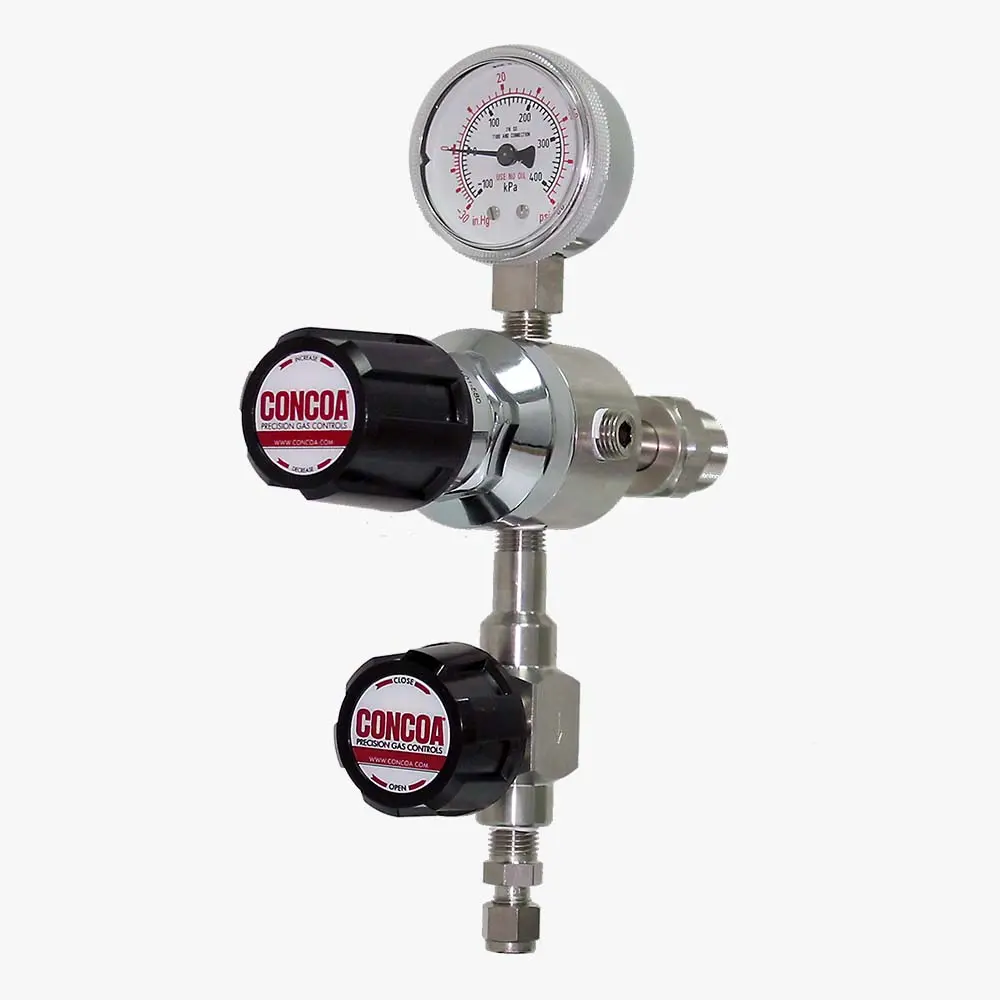

3272031-01-M1L shown
Four-port, stainless steel barstock, point-of-use regulator for high purity gases

The 327 Series regulator provides secondary pressure control of non-corrosive, liquified, or high purity (up to grade 5.5) gases. Unlike most pipeline equipment, the regulator is rated to full cylinder pressure, making it ideal for point-of-use pressure control in high purity gas distribution systems. While the 327 Series regulator may be used with mildly reactive gases, it is not for use with toxic or highly corrosive gases.

  • 316L stainless steel diaphragm prevents inboard diffusion
  • CAPSULE® seat design features integral 360° filtration
  • Low wetted surface area minimizes purge requirements
  • Rear panel mount eases installation
  • Spectometric helium leak check verifies leak integrity
  • Max inlet pressure (bare body): 3000 PSIG (210 BAR)
  • Body: 316L stainless steel barstock
  • Bonnet: Chrome-plated, die-cast zinc
  • Gauges: 2 in (50 mm) diameter stainless steel with plated case
  • Seat: PTFE
  • Filter: 10-micron, 316 stainless steel mesh
  • Temperature range: -40°F to 140°F (-40°C to 60°C)
  • Diaphragm: 316L stainless steel
  • Cv: 0.1
  • Helium leak integrity: 1 x 10⁻⁸ scc/sec
  • Internal seals: PTFE
  • Ports (bare body): 1/4 in FNPT
  • Conformances: Cleanliness meets or exceeds CGA G-4.1; PED 2014/68/EU; ANSI/ASME B40.1; CRN OH5216
◂ scroll to see more ▸

See catalog page for ordering information.

◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
327 Series Regulators Catalog Page
English
RS327S
AH
Download
Regulators, Reguladores, Détendeurs Installation and Operation Instructions
English, Spanish, French
ADI2062
M
Download
CRN File OH5216
English
CRNOH5216
26
