414 Series Regulator
Five-port, bare brass barstock, dual stage, bottom-entry cylinder regulator for ultra-high purity inert gas applications

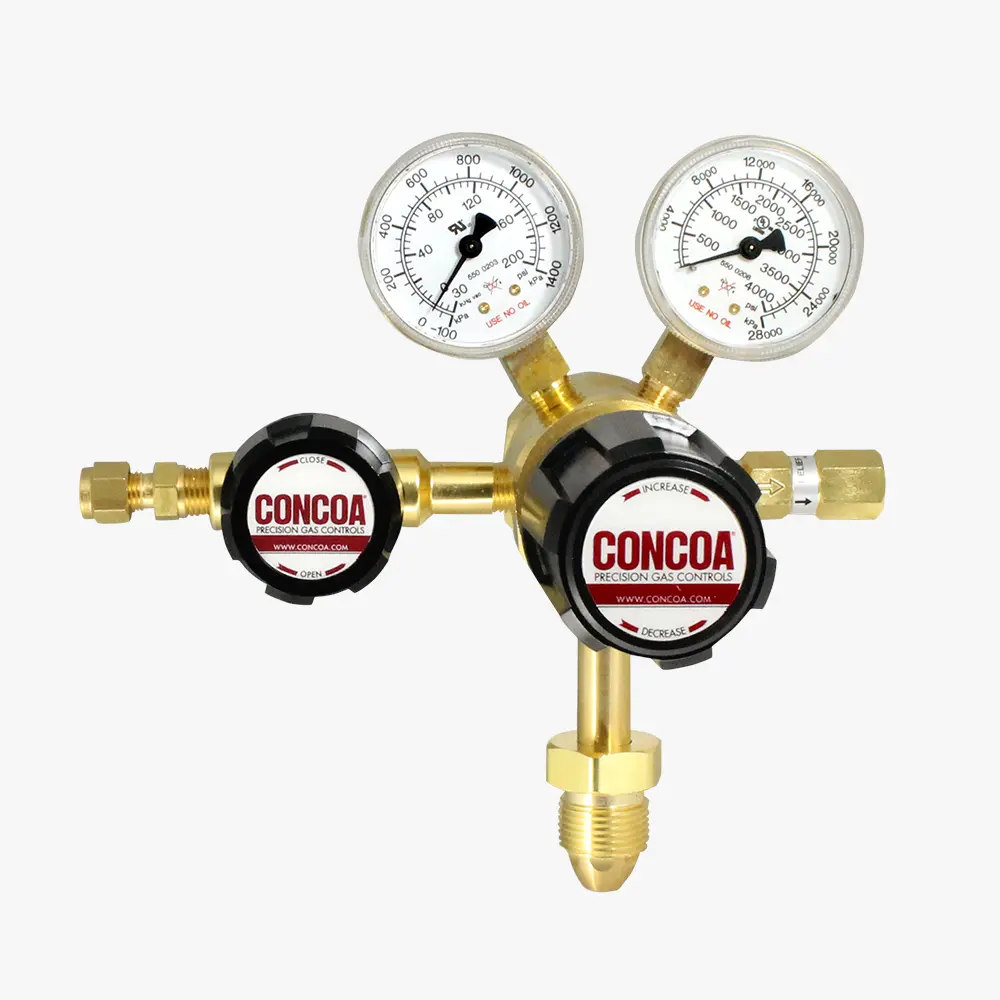

4143331-01-580 shown
The 414 Series regulator provides primary pressure control for non-corrosive, ultra-high purity, or liquified gases. Two stages of pressure regulation minimize pressure variation arising from inlet pressure changes such as the depletion of the supply cylinder, making the 414 Series dual stage regulator ideal for applications where constant delivery pressure is critical. For system flexibility, the CONCOA 414 Series regulator may be installed directly on a top-outlet cylinder or mounted using a bracket and connected to the source via a flexible hose.
- Metal-to-metal diaphragm seal prevents gas contamination
- CAPSULE® seat design features integral 360° filtration in both stages
- Front and rear panel mountable permits easy installation
- Pipe away relief valve vents exhaust gases safely
- Spectometric helium leak check verifies leak integrity
- Cleanroom assembly eliminates contamination at installation
- Captured vent capable bonnet prohibits exposure in the unlikely event of diaphragm failure
