415 Series Regulator
Five-port, stainless steel barstock, dual stage, bottom-entry cylinder regulator for ultra-high purity gas applications

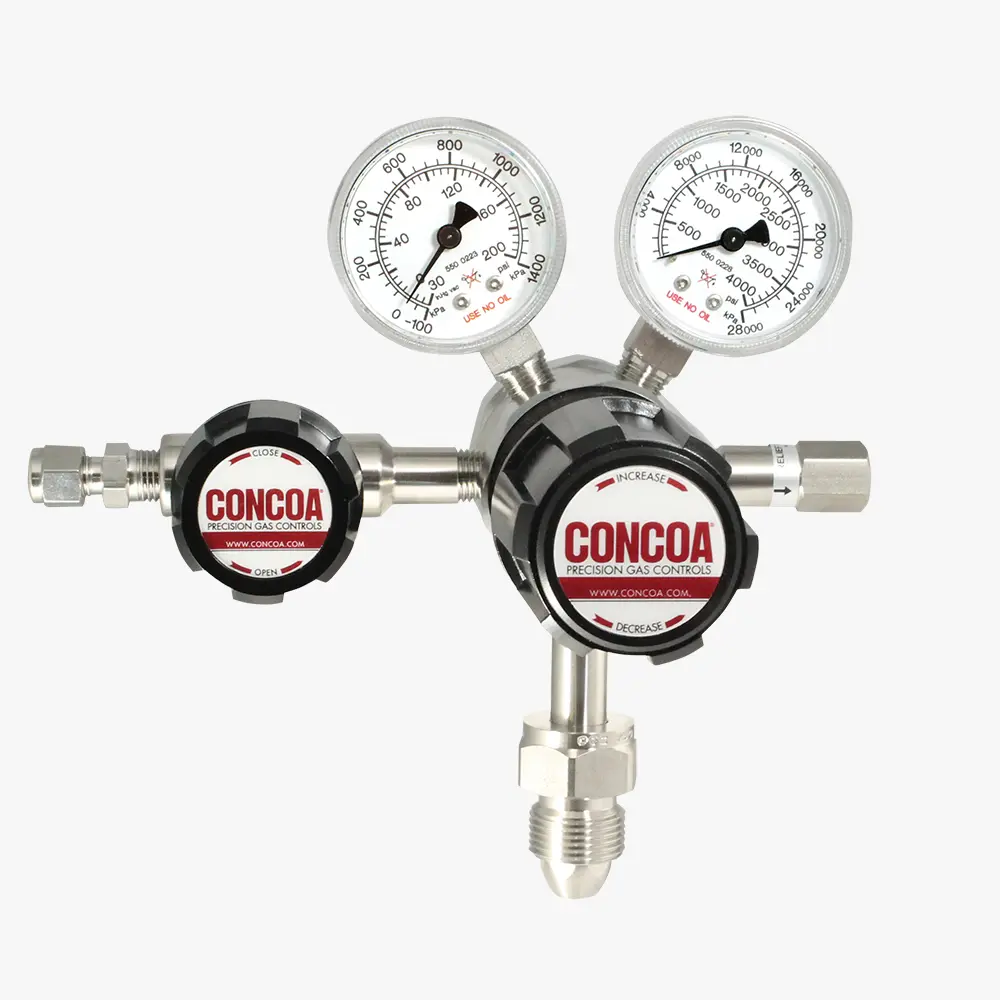

4153311-01-580 shown
The 415 Series regulator provides primary pressure control for ultra-high purity gases including corrosive and toxic gases. Two stages of pressure regulation minimize pressure variation arising from inlet pressure changes such as the depletion of the supply cylinder. The CONCOA 415 Series regulator may be installed directly on a top-outlet cylinder or mounted using a bracket and connected to the source via a flexible hose.
- Metal-to-metal diaphragm seal prevents gas contamination
- CAPSULE® seat design features integral 360° filtration in both stages
- Front and rear panel mountable permits easy installation
- Pipe away relief valve vents exhaust gases safely
- Spectometric helium leak check verifies leak integrity
- Cleanroom assembly eliminates contamination at installation
- Captured vent capable bonnet prohibits exposure in the unlikely event of diaphragm failure
Related Products
WARNING: This product can expose you to chemicals including Lead, Chromium, Nickel, and 1-3 Butadiene, which are known to the state of California to cause cancer, birth defects, or other reproductive harm. And, this product can expose you to chemicals including Bisphenol A (BPA) which is known to the State of California to cause female reproductive harm. For more information go to www. PSWarnings.ca.gov.
CAPSULE® is a registered trademark of Controls Corporation of America
