4700 Series Machine Cutting Torch

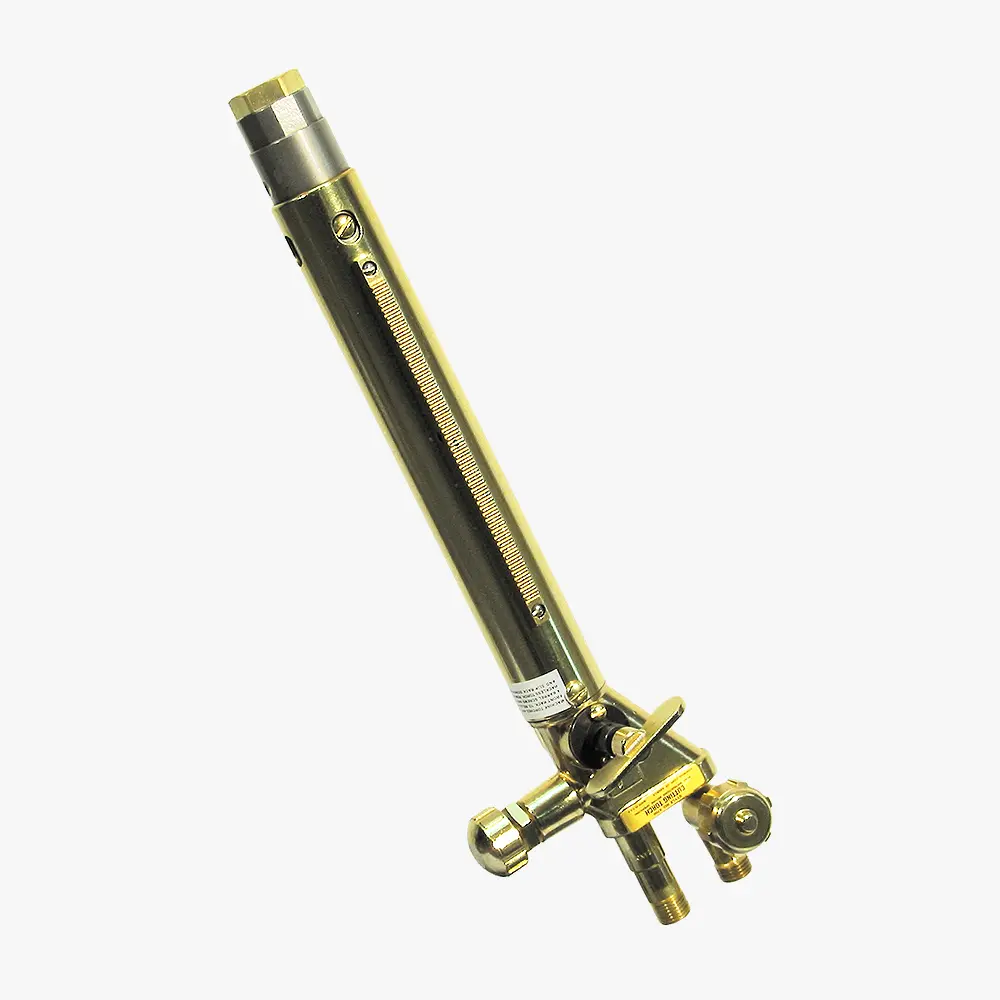

Machine cutting torch with stainless steel torch head
8234700-01-1 shown
4700 Series Machine Cutting Torch

Series 4700 machine cutting torch is designed to handle all applications of machine cutting with natural gas, propane, acetylene, or propylene. The torch is available with a 2 inch (5 cm) hose or 3 inch (7.6 cm) hose and features stainless steel ball valves to assure positive seating and fine adjustment control. CONCOA Series 4700 torch can be used with a variety of cutting tips, including light, preheat, and heavy preheat. The 1 3/8-inch barrel diameter fits most machines, and the torch is designed to handle all applications of industrial machine cutting.

  • Tip mix provides ultimate user safety and versatility
  • 180° stainless steel torch heads ensure better tip seating and longer life
  • Spring-loaded lift-type cutting oxygen valve allows fast on-off
  • Optional check valves prevent the reverse flow of mixed gas
  • Optional automatic flashback arrestors quench flashbacks and prevent back-feeding
  • Body: Forged brass
  • Barrel: Standard 1 3/8 in diameter
  • Rack: Standard 32 teeth/in pitch
  • Heads: Stainless steel
  • Fuel hose connections: 9/16 in -18 (B)
◂ scroll to see more ▸
Part Number Description Weight
8234700-01-1 13.4 in (34.0 cm) Torch with Valve, 180-degree stainless steel head, Rack, Size 2 Hose, 5 in (12.7 cm) Effective Racking Length 4 lbs (1.8 kgs)
8234701-01-1 18.4 in (46.7 cm) Torch with Valve, 180-degree stainless steel head, Rack, Size 2 Hose, 10 in (25.4 cm) Effective Racking Length 4.1 lbs (1.9 kgs)
8234702-01-1 13.8 in (35.1 cm) Torch with Valves, Rack, Size 3 Hose, and 5 in (12.7 cm) Effective Racking Length 4.2 lbs (1 kgs)
8234708-01-1 8.0 in (20.3 cm) Torch with Valves, No Rack, Size 3 Hose, 2.5 in (6.4 cm) Effective Racking Length 3.8 lbs (1.7 kgs)
8234781-01-1 18.4 in (46.7 cm) Torch with Valve, Rack, Size 3 Hose, 10 in (25.4 cm) Effective Racking Length 4.5 lbs (2.0 kgs)
8234783-01-1 24.3 in (61.7 cm) Torch with Valve, Rack, Size 3 Hose, 16 in (40.6 cm) Effective Racking Length 6.2 lbs (2.8 kgs)
8234792-01-1 6.5 in (16.5 cm) Torch with No Valve or Rack, Size 3 Hose, and 3.5 in (8.9 cm) Effective Racking Length 3.8 lbs (1.7 kgs)
◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
Safe Practices in Oxy-Fuel Welding and Cutting Brochure
English
ADE0872
AE
Download
Machine Cutting Torches Series 4700 Installation and Operation
English
ADI1580
E
