529 Series Protocol Switchover Monitor Station
Manual switchover with remote pressure monitor for high purity gas applications

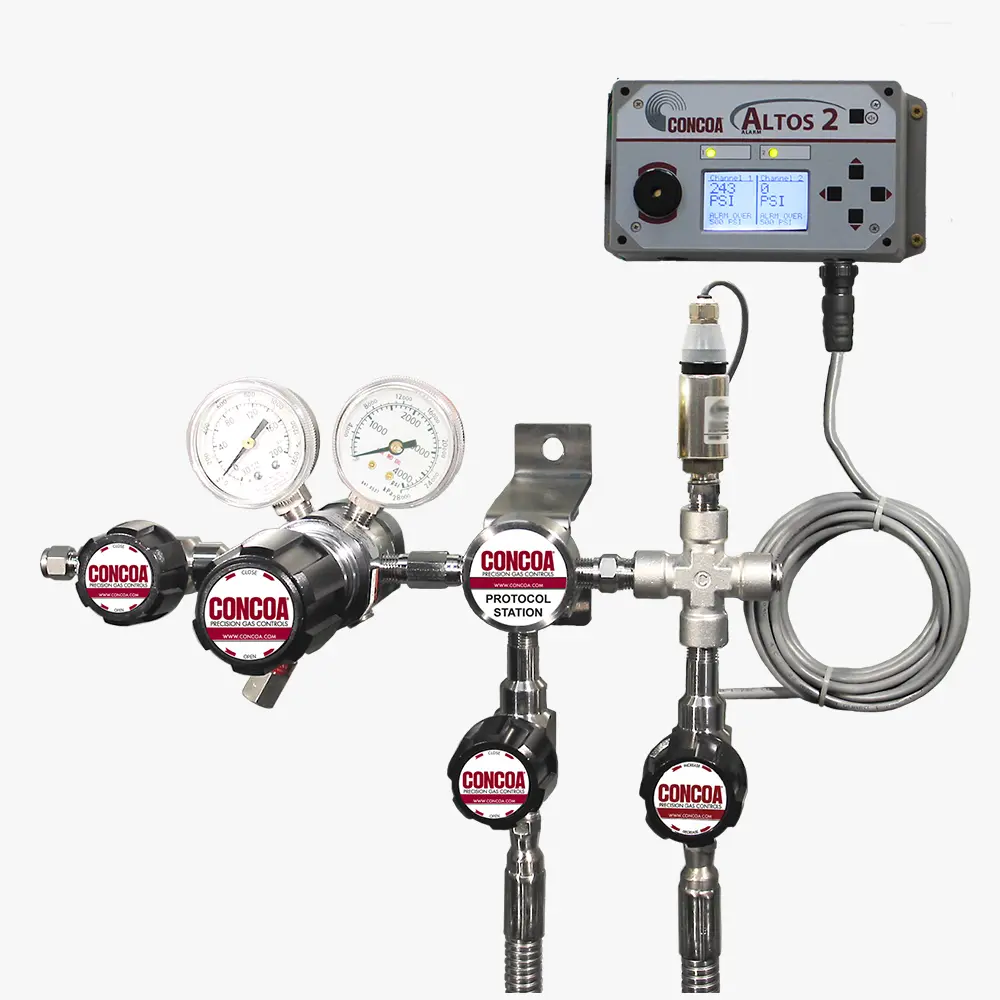

5290156-01-660 shown with regulator
The 529 Series Protocol Switchover Monitor Station features a single pressure transducer that allows the current source pressure to be monitored remotely with an Altos 2™ System Monitor. The user may set the alarm on the Altos 2 to the desired pressure for cylinder depletion notification warning. The protocol switchover monitor station is available in brass, chrome-plated brass, 316L stainless steel, or Silicon CVD coated 316L stainless steel, and may be used with many CONCOA single or dual stage regulators. To order the CONCOA Protocol Switchover Monitor Station with regulator installed at the factory for inert gases used in non-hazardous environments, add the letter "K" after any regulator part number. For hazardous gases or for use in hazardous environments, add the letter “X” after any regulator part number for an intrinsically safe transducer and safety barriers. (For example, to order a 4221332-01-580 regulator with a factory-installed protocol switchover monitor station for use in non-hazardous environments, the part number would be 4221332-01-510K.)
- 4-20 mA pressure transducer transmits pressure to Altos 2 remote alarm
- Altos 2 remote alarm signals audible and visible warnings of cylinder depletion
- Plugged port in gas block facilitates purging
- Integral check valve (in optional hose) at inlet prohibits contamination during cylinder change
- Stainless bracket allows flexible mounting options
