Active
540 Series Back-Up Panel
Back-up panel for high purity gas applications

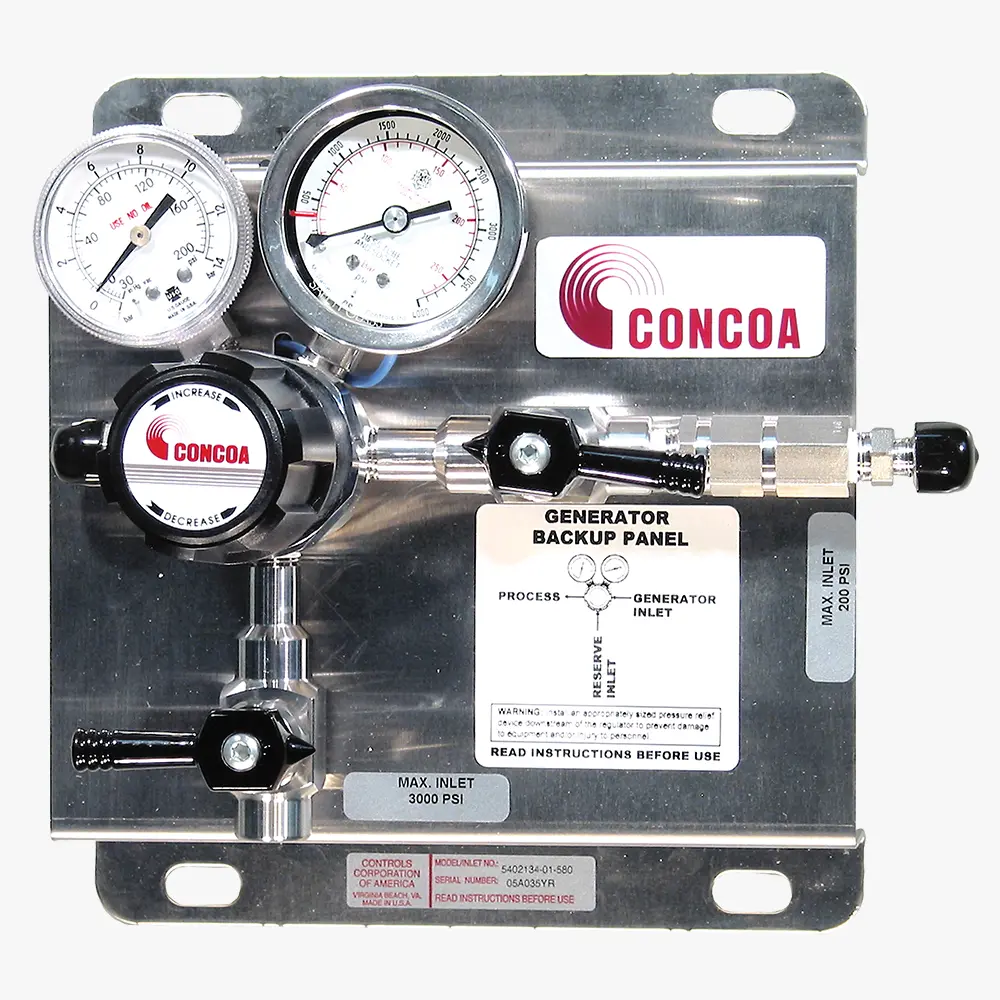

540200B-01-001 shown
The 540 Series Back-Up Panel is designed to provide a reserve supply of gas for a primary reserve system that may cease to supply gas due to malfunction, normal maintenance, or power failure. If the pressure from the primary system falls below the set pressure of the regulator, the emergency reserve system automatically supplies gas to the downstream system to avoid interruption of flow. With optional alarm capability, the 540 Series back-up panel can signal when the system switches to reserve or when the reserve contents are getting low.
- Adjustable regulator pressure allows user to set the pressure at which the backup engages
- Automatic activation assures the uninterrupted supply of critical gases to their processes
- Shut-off valve on both primary and reserve enables isolation and disconnection of either line
- Check valve on primary supply prevents backflow
- Optional pressure switch inlet gauge and remote alarm permits user to set alarm to activate when the system switches to reserve supply or when the reserve contents are getting low
- Max inlet pressure: 3000 PSIG (210 BAR)
- Temperature range: -40°F to 140°F (-40°C to 60°C)
- Gauges: 2 in (50 mm) diameter brass or 316L stainless steel
- Helium leak integrity: 1 x 10⁻⁹ scc/sec
- Adjustable pressure ranges: 0-150 PSIG (0-10 BAR) or 150-500 PSIG (10-34 BAR)
- Cv: 0.1
- Weight: 6.5 lbs (2.95 kg) Brass; 7.25 lbs (3.29 kg) Stainless steel
- Regulator body: Brass or 316L stainless steel barstock
- Bonnet: Brass or chrome-plated brass barstock
- Seats: PTFE
- Filter: 10-micron sintered bronze mesh or patented 316L stainless steel mesh
- Regulator diaphragm: 316L stainless steel
- Cylinder connection: Brass or 316L stainless steel with check valve
- Check valve seat: FKM or Chloroprene
- Panel: 304 stainless steel
- Conformances: Cleanliness meets or exceeds CGA G-4-1; PED 2014/68/EU; ANSI/ASME B40.1; CRN OH5216.5
◂ scroll to see more ▸
See catalog page for ordering information.
◂ scroll to see more ▸
Document
Language
ID Number
Revision
Regulators, Reguladores, Détendeurs Installation and Operation Instructions
English, Spanish, French
ADI2062
M
