565 Series Flowmeter

Variable area flowmeter for scientific gas applications

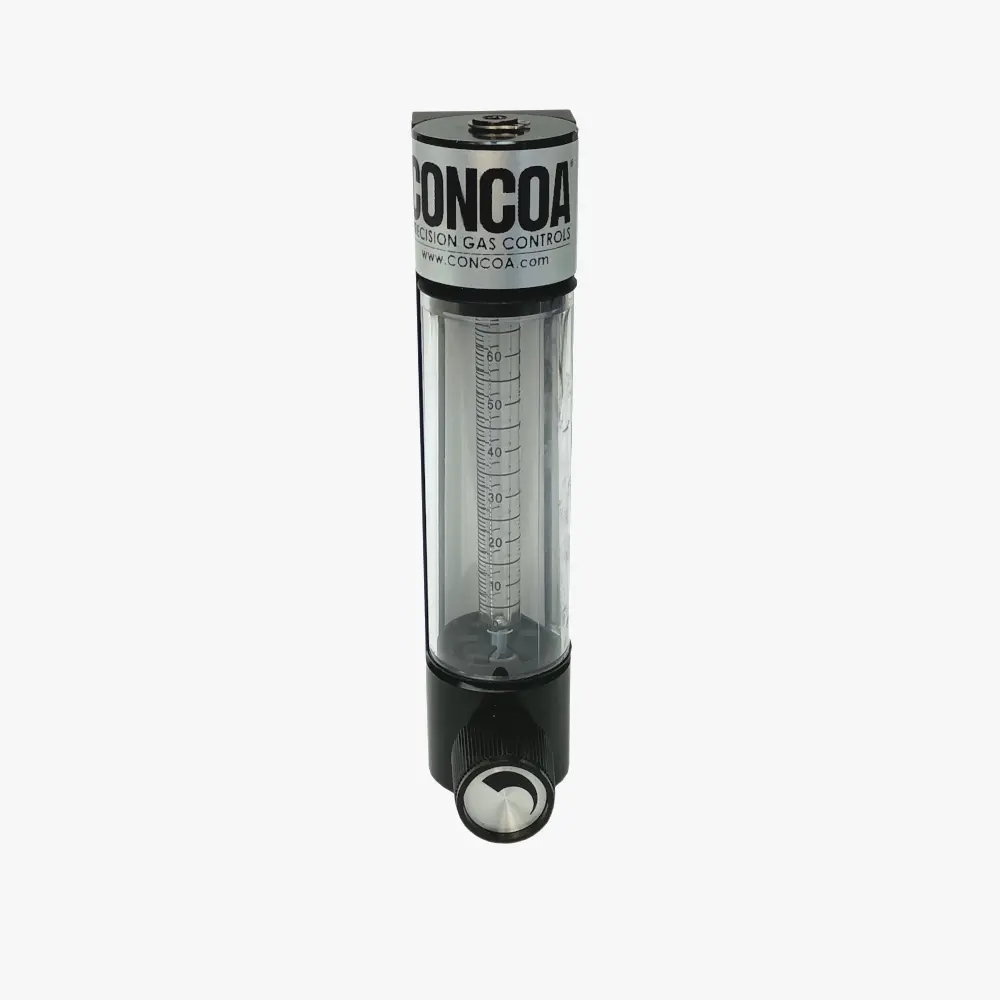

5654311-01-000 shown
Variable area flowmeter for scientific gas applications

The 565 Series Flowmeter offers inherent simplicity, versatility, and economy in a precision flow instrument. The 2.6-inch (65 mm) scale is preferred in industrial panel-mounting applications and for direct mounting to a pressure regulator. Flow readings from the millimeter scale are converted to actual flow using the calibration chart provided with the flow tube. CONCOA offers a wide variety of flow tube and float combinations to provide the most precise flow control for many gas service applications.

Flowmeter Wizard - try the flowmeter wizard today!
  • Rib-guided tube internals provide precise stable flow readings
  • Rotating magnifier lens enhances reading resolution
  • Field changeable flow tube promotes installation flexibility
  • Max pressure: 200 PSIG (14 BAR)
  • Max temperature: 250°F (121°C)
  • Flow tube: Heavy-walled borosilicate glass
  • Front shield: Polycarbonate
  • End connections: Brass or 316L stainless steel
  • Seals: FKM, EPDM (optional); or Kalrez® (optional)
  • Accuracy: ± 5% full scale
  • Repeatability: 0.25% full scale
◂ scroll to see more ▸

Determine part number tube (A) and float (B) from specific air flow


Flow Units





?
Tube Size (A)
Float Material (B)
Max Flow for float/tube (air, atmospheric conditions)

Max flow for float/tube (your parameters)

?
Scale Size
Frame Material (C)
Valve (D)
End Connection (CON)
?
?
Your CONCOA flowmeter part number is:
  - -
  - -
Please confirm the compatibility of any toxic or corrosive gas with CONCOA for the selected flowmeter before placing your order.

Flowmeter Configurator

This configurator may be used to help select a CONCOA flowmeter specific to your application. Tap or click the ? icons for help.

A CONCOA 565 Series flowmeter part number looks like this:
565 ABCD-01-CON

Example part numbers:
565 1200-01-000
565 4312-01-TF2
565 8210-01-HB4

First, select the major component of the mixture. Then, select one or more minor components from the right-hand side (scroll on mobile!) and enter the composition percentage.
Major Component
No minor gases selected yet.
Minor Components
 SG
 Weight (%)
Specific Gravity









A specific gravity of ___ will be used in the flowmeter wizard after clicking OK.

◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
565 Series Flowmeters Catalog Page
English
RS565FL
AG
Download
560 and 565 Series Flowmeters Installation and Operation Instructions
English
ADI3160
B
Download
CONCOA Scientific Research Apparatus Brochure
