575 Series Advantium 16 System Alarm

Web-enabled, 16-channel system monitors with ethernet connectivity for high purity gas systems

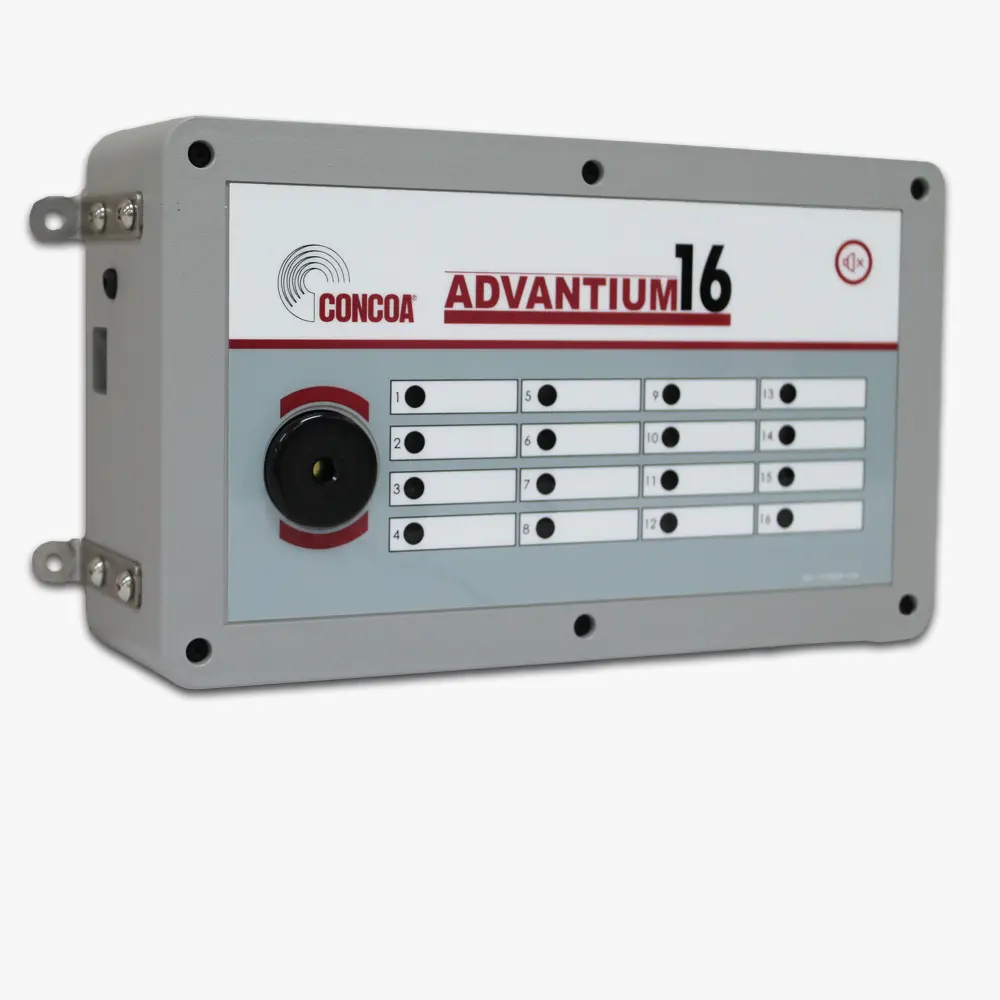

5750164-01-000 shown
Web-enabled, 16-channel system monitors with ethernet connectivity for high purity gas systems

The 575 Series Advantium 16 System Alarm reports and records the status of up to 16 individual points of observation (or 8 switchovers). Inputs to the Advantium 16 alarm may be grouped by sub-system for display and notification. The status of all inputs is displayed locally with high-visibility, multicolor LEDs turning red when an input exits its normal condition and blinking when all inputs in a user-defined system exit. Additionally, the system status may be accessed through user-programmable dry contact outputs, an integral web server, or e-mails sent by an onboard mail server based on user-defined triggers. Ideal for monitoring automatic switchovers and other gas delivery installations, the highly configurable Advantium 16 Alarm is specifically designed for complex gas systems.

  • Highly programmable monitor allows customization for specific installations
  • User-definable input groups support switchovers and third-leg reserves
  • Reversible mounting brackets permit flush or on-surface mounting
  • Onboard web and mail server enables remote monitoring and notification
  • Eighteen output relays facilitate flexible system integration
  • Event log provides an auditable trail of uptime and failure
  • Flame-retardant and UV stabilized enclosure ensures improved durability and sturdiness for longer service life
  • Sound: 93 dB audible alarm
  • Power input: 100-240 VAC external power supply (International adapters included)
  • Dry contact outputs (18): Normally open or normally closed (field adjustable)
  • Relay inputs (16): Normally open or normally closed (field adjustable)
  • Relay contact rating: 0.5A @ 24 VDC Max
  • Ethernet: RJ-45
  • Weight: 4.5 lbs (2.04 kg)
◂ scroll to see more ▸
Part NumberDescription
5750164-01-000Advantium 16 System Monitor
5759901Advantium 16 Flush Mount Kit Including Trim and Hardware
◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
Advantium 16 System Monitors Catalog Page
English
RSADV16
AG
Download
Advantium 16 System Monitor Installation and Operation
English
ADI9531
J
Download
Advantium 16 System Monitor Configuration Instructions
English
ADI9532
B
Download
Advantium 16 Alarm Using Flush-Mount Kit 575 9901 Installation and Operation
English
ADI9534
A
