Active
580 Series Toxic and Corrosive Gas Detector
Sensor and monitor for toxic and corrosive gases

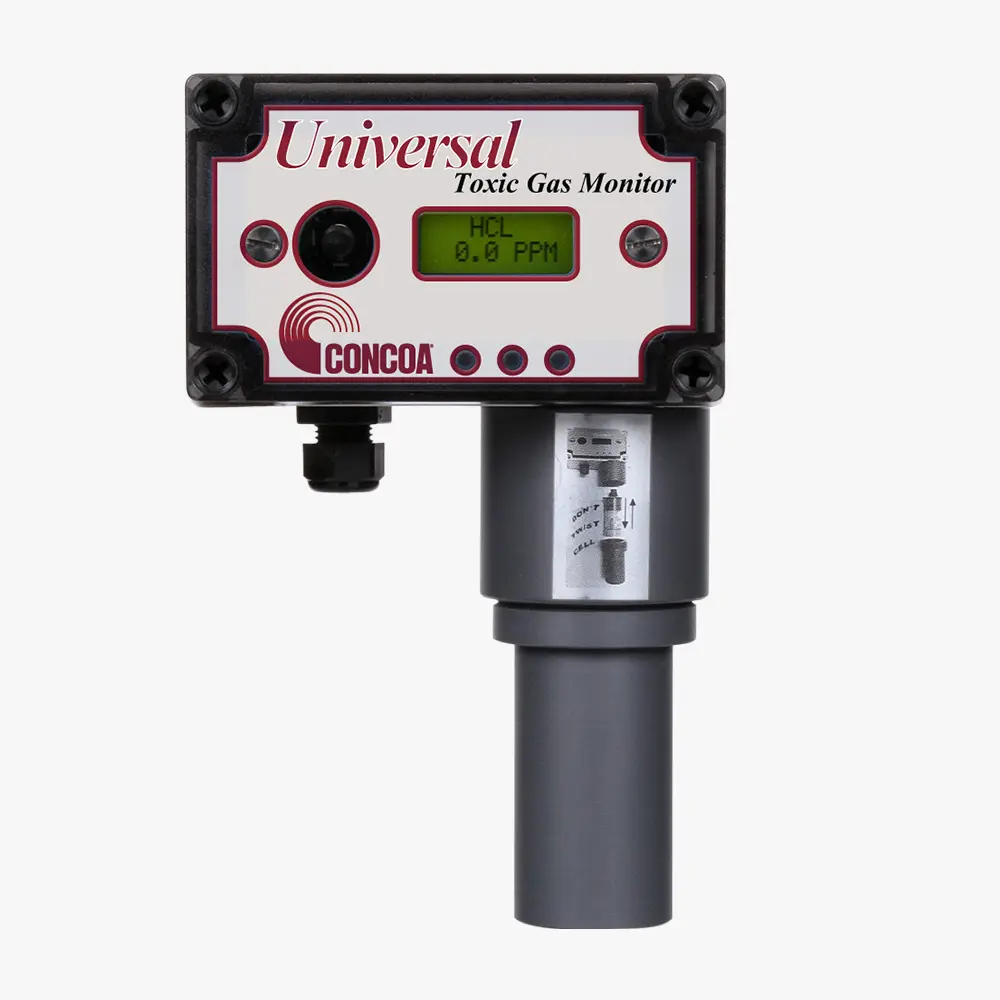

5803030 shown
The 580 Series Toxic and Corrosive Gas Detector provides effective protection for laboratories and confined workspaces where hazardous gases are used. A single generic controller is connected to a renewable sensor specific to a particular gas and measurement range. The sensor has a built-in microprocessor that stores gas, range, and calibration information. Sensor status is continuously monitored and is easily recharged or replaced. Digital display with built-in horn and LED alarm indicators quickly alert personnel to a hazardous condition. The universal CONCOA 580 Series toxic and corrosive gas detector is designed to work as a stand-alone monitor or can be integrated with the CONCOA 580 Series Horn and Strobe, 585 Series emergency shut-off controller, or other programmable gas monitoring system.
- Plug and play sensor automatically inputs gas and measurement range into the universal controller
- Dedicated microcontroller in removable sensor allows sensor calibration and maintenance
- Built-in digital display shows type of gas detected and concentration in ppm, ppb, or percentage
- 90dB built-in audible horn activates when concentration levels go above the selected alarm thresholds
- Sampling method: Diffusion
- Accuracy: ±10% of full scale
- Sensor type: Renewable electrochemical self-checking
- Sensor life: 3-8 years
- Operating temperature: -25°F to 122°F (-32°C to 50°C)
- Signal output: Dual level
- Analog output: 4-20 mA
- Power requirement: 250 mA @ 24 VDC
- Enclosure: Polycarbonate
- Weight: 1.2 lbs (0.5 kg)
- Conformances: CE, UL/cUL
◂ scroll to see more ▸
| Part Number | Description |
|---|---|
| 5803030 | Universal Toxic and Corrosive Gas Monitor Controller (requires specific gas sensor 5803031-5803042, sold separately) |
| 5803031 | Ammonia Sensor |
| 5803032 | Boron Trifluoride Sensor |
| 5803033 | Chlorine Sensor |
| 5803034 | Fluorine Sensor |
| 5803035 | Hydrogen Cyanide Sensor |
| 5803036 | Hydrogen Fluoride Sensor |
| 5803037 | Hydrogen Sulfide Sensor |
| 5803038 | Nitrogen Dioxide Sensor |
| 5803039 | Hydrogen Chloride Sensor |
| 5803040 | Sulfur Dioxide Sensor |
| 5803041 | Diborane Sensor |
| 5803042 | Silane Sensor |
| 8355205-01-1 | 24 VDC Power Supply Unit |
◂ scroll to see more ▸
