586 Series Emergency Shut-Off Valve

Pneumatically-actuated shut-off valve for high purity gas applications

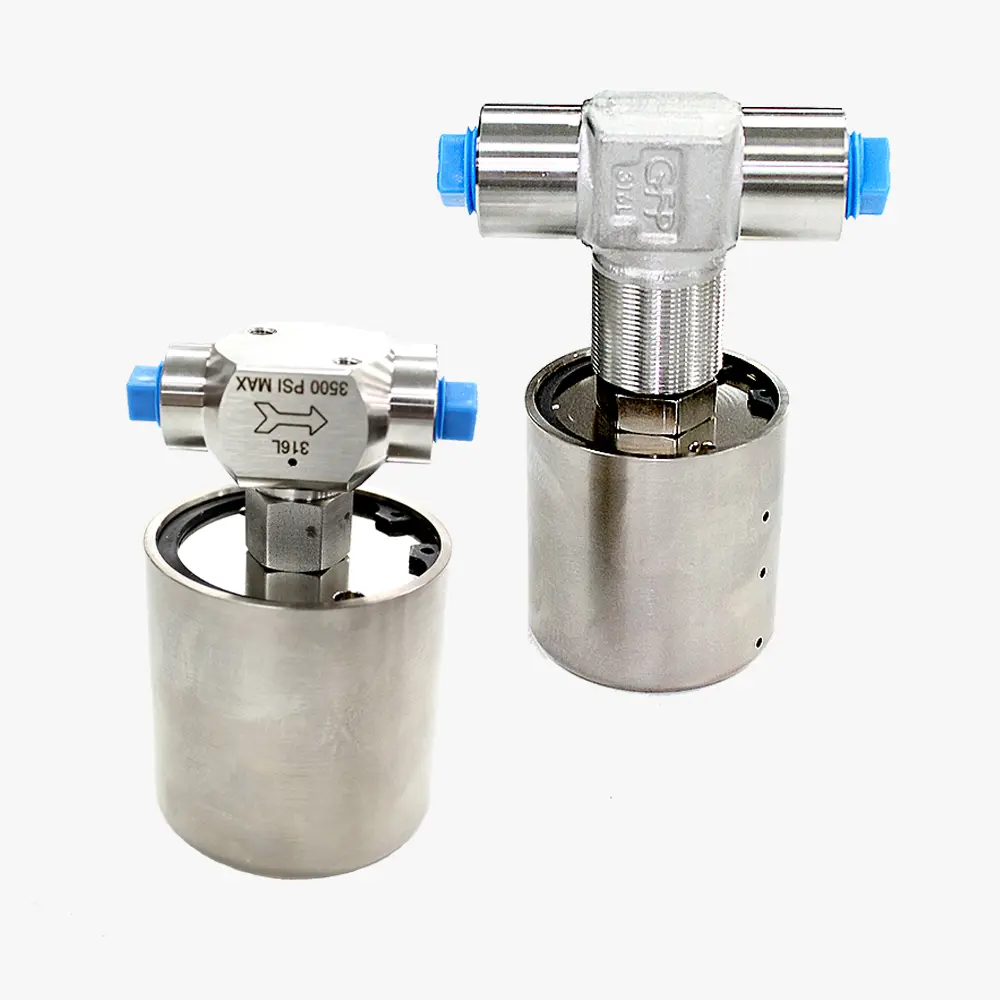

5335008, 5337008 shown
Pneumatically-actuated shut-off valve for high purity gas applications

The 586 Series Emergency Shut-Off Valve is ideal for use as a safety device in high purity, flammable, toxic, or corrosive gas systems where fail-safe shutdown of gas supply and flow is required. Unlike typical solenoid valves, these shut-off valves feature metal-to-metal diaphragm seals, making them suitable for laboratory applications. The emergency shut-off valve is designed to provide process control for automated laboratory systems. The high-purity, emergency shut-off valve kit attaches to the inlets of CONCOA regulators and switchovers between the product and the inlet source. They are ready for out-of-the-box control with the CONCOA 585 emergency shut-off controller and can be integrated into any gas delivery system to provide instantaneous shut-off.

  • Metal-to-metal seals to prevent gas contamination
  • Elgiloy® diaphragms support long life and high performance
  • Pneumatically-actuated design ensures responsiveness and high durability
  • Max inlet pressure: 3500 PSIG (240 BAR)
  • Body: 316L stainless steel
  • Max seat leakage: 2 x 10⁻⁸ scc/sec helium
  • Temperature range: -65°F to 150°F (-54°C to 66°C)
  • Helium leak integrity: 1 x 10⁻⁸ scc/sec
  • Actuator housing: Nickel-plated aluminum
  • Actuation pressure: 70 PSIG - 125 PSIG (5 BAR - 8 BAR) to open
◂ scroll to see more ▸
Part Number Description Flow CooefficientMax Inlet Pressure
5335008 High Pressure Emergency Shut-Off Valve featuring 1/4 in FNPT Process Ports and 1/8 in FNPT Pneumatic Inlet 0.14 Cv 3500 PSIG (240 BAR)
5337008 High Pressure Emergency Shut-Off Valve featuring 1/2 in FNPT Process Ports and 1/8 in FNPT Pneumatic Inlet 0.30 Cv 3500 PSIG (240 BAR)
533H008 High- Flow Emergency Shut-Off Valve featuring 1/2 in FNPT Process Ports and 1/8 in FNPT Pneumatic Inlet 0.96 Cv 1000 PSIG (70 BAR)
5861001 Single Valve Kit for 585 Series Emergency Shut-Off Controller featuring One 1/4 in FNPT ESO Valve (5335008), One 1/4 in MNPT Swivel Connector, 1/8 in Hose Barb on Pneumatic Inlet (for connection to either side of the ESO valve), and Four Adhesive-backed Routing Clips 0.14 Cv 3500 PSIG (240 BAR)
5861002 Dual Valve Kit for 585 Series Emergency Shut-Off Controller featuring Two 1/4 in FNPT ESO Valves (5335008), Two 1/4 in MNPT Swivel Connectors (for connection to either side of the ESO valve), 1/8 in Hose Barbs on Pneumatic Inlet Ports, Tee with 42 in Urethane Tubing, and Four Adhesive-backed Routing Clips 0.14 Cv 3500 PSIG (240 BAR)
5862001 Single Valve Kit for 585 Series Emergency Shut-Off Controller featuring One 1/2 in FNPT ESO Valve (5337008), 1/2 in MNPT Swivel Connector, 1/8 in Hose Barb on Pneumatic Inlet (for connection to either side of the ESO valve), and Four Adhesive-backed Routing Clips 0.30 Cv 3500 PSIG (240 BAR)
5862002 Dual Valve Kit for 585 Series Emergency Shut-Off Controller featuring Two 1/2 in FNPT ESO Valves (5337008), Two 1/2 in MNPT Swivel Connectors (for connection to either side of the ESO valve), 1/8 in Hose Barbs on Pneumatic Inlet Ports, Tee with 42 in Urethane Tubing, and Four Adhesive-backed Routing Clips 0.30 Cv 3500 PSIG (240 BAR)
5863001 High Flow Single Valve Kit featuring One 1/2 in FNPT ESO Valve (533H008), 1/2 in MNPT Swivel Connector, 1/8 in Hose Barb on Pneumatic Inlet (for connection to either side of the ESO valve), and Four Adhesive-backed Routing Clips 0.96 Cv 1000 PSIG (70 BAR)
5863002 High Flow Dual Valve Kit featuring Two 1/2 in FNPT ESO Valves (533H008), Two 1/2 in MNPT Swivel Connectors, 1/8 in Hose Barb on Pneumatic Inlets (for connection to either side of the ESO valve), Tee with 42 in Urethane Tubing, and Four Adhesive-backed Routing Clips 0.96 Cv 1000 PSIG (70 BAR)
◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
Emergency Shut-Off Valves Catalog Page
English
RS586VLV
AG
Download
Emergency Shut-Off Valve Kits Installation and Operation
English
ADI5852
C
Download
CONCOA Safe Handling of Flammable Gases in Laboratories Brochure
English
SPF650
C
