6520 Series Two Stage Cylinder Regulator

Dual stage cylinder regulator for medium heavy-duty welding, heating and cutting applications

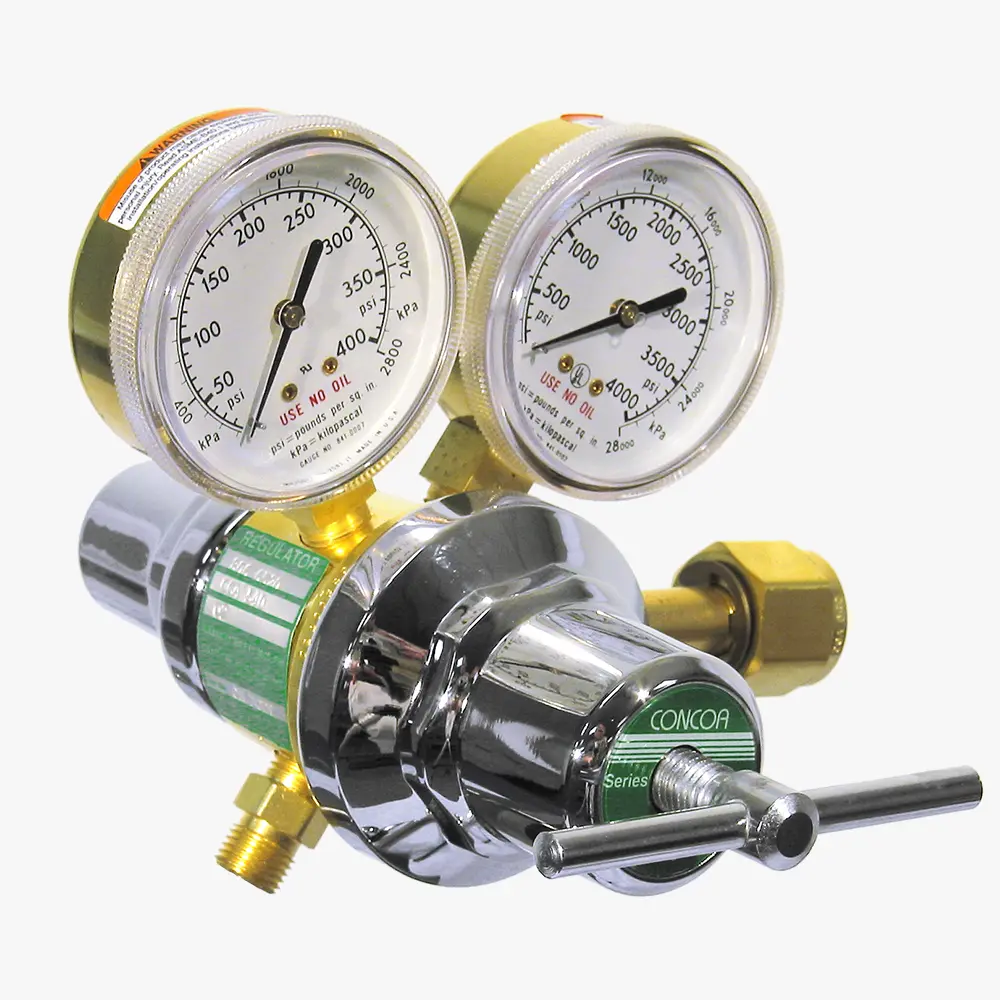

8066520-01-1 shown
Dual stage cylinder regulator for medium heavy-duty welding, heating and cutting applications

The 6520 Series two stage regulator is for medium-duty welding, heating, and cutting provide primary pressure control of industrial gas cylinders in applications requiring moderate flow rates with delivery pressures up to 200 PSIG (14 BAR). The encapsulated seat design increases pressure control accuracy and provides an extended component lifecycle, while the chloroprene diaphragm provides steady and reliable pressure control.

  • Medium-large seat displacement permits good flow capacity
  • Chloroprene diaphragm maintains steady pressure control
  • Chrome-plated, die-cast zinc bonnet provides clean appearance
  • Body: Forged brass
  • Bonnet: Chrome-plated, die-cast zinc
  • Gauges: 2 1/2 in (63 mm) diameter brass
  • Filter: 25-micron sintered bronze
  • Temperature range: -40°F to 140°F (-40°C to 60°C)
  • Seat (1st stage): PTFE
  • Diaphragm: Stainless steel
  • Cv: 0.2
  • Conformances: Cleanliness meets or exceeds CGA G-4.1; ANSI/ASME B40.1; CRN OH5216.5R2
◂ scroll to see more ▸
Part Number Gas
Service		 Seat (2nd stage) Inlet Connection Max Inlet Pressure Outlet Connection Max Delivery Pressure Pressure Gauges
8066522-01-1 Acetylene PTFE CGA 300 300 PSIG
(21 BAR) 		9/16 in -18 (B)
LH Ext 		15 PSIG
(1 BAR) 		0-30 PSIG/0-200 kPa
and 0-400 PSIG/0-2800 kPa
8066523-01-1 Argon, Nitrogen,
Helium 		PTFE CGA 580 3000 PSIG
(210 BAR)		 5/8 in -18 (B)
RH Ext 		200 PSIG
(14 BAR) 		0-400 PSIG/0-2800 kPa and
0-4000 PSIG/0-28,000 kPa
8066525-01-1 Argon, Nitrogen,
Helium 		PTFE CGA 580 3000 PSIG
(210 BAR) 		5/8 in -18 (B)
RH Ext 		120 PSIG
(8 BAR) 		0-200 PSIG/0-1400 kPa and
0-4000 PSIG/0-28,000 kPa
8066526-01-1 Oxygen PTFE CGA 540 3000 PSIG
(210 BAR) 		9/16 in -18 (B)
RH Ext 		120 PSIG
(8 BAR) 		0-200 PSIG/0-1400 kPa and
0-4000 PSIG/0-28,000 kPa
8066527-01-1 Industrial Air PCTFE CGA 347 5500 PSIG
(380 BAR) 		1/4 in MNPT 120 PSIG
(8 BAR) 		0-200 PSIG/0-1400 kPa and
0-6000 PSIG/0-42,000 kPa
8066528-01-1 Acetylene PCTFE CGA 680 5500 PSIG
(380 BAR) 		5/8 in -18 (B)
RH Ext		 120 PSIG
(8 BAR)		 0-200 PSIG/0-1400 kPa and
0-6000 PSIG/0-42,000 kPa
8066529-01-1 Acetylene PTFE CGA 510 300 PSIG
(21 BAR) 		9/16 in -18 (B)
LH Ext 		15 PSIG
(1 BAR) 		0-30 PSIG/0-200 kPa and
0-400 PSIG/0-2800 kPa
◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
6520 Series Cylinder Regulators Catalog Page
English
IN6520CR
M
Download
Regulators Installation and Operation Instructions
English
ADI1608
L
Download
CRN File OH5216
English
CRNOH5216
26
