6590 Series Flowmeter Regulator

Rugged flowmeter regulator for medium heavy-duty heating and cutting applications

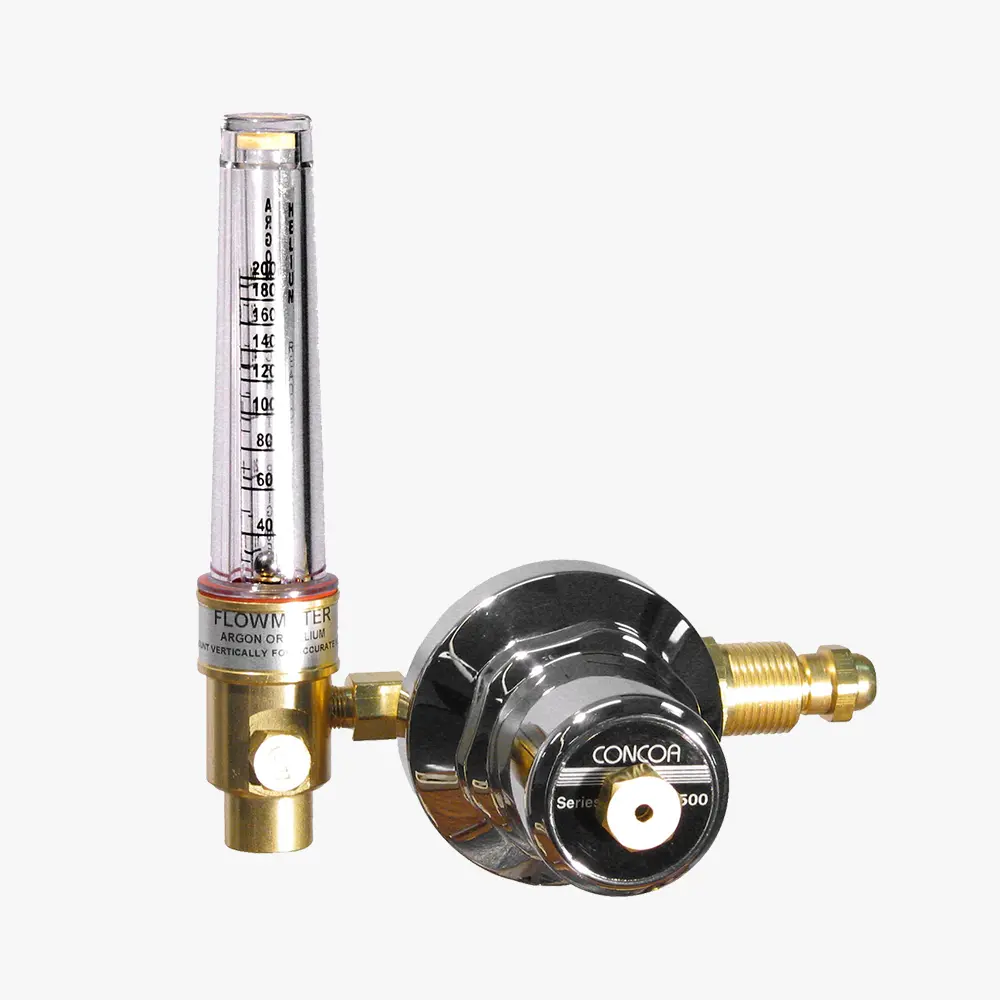

8066574-01-1 shown

The 6590 Series medium heavy-duty heating and cutting regulator provides steady and reliable flow control in point-of-use applications such as MIG and TIG shielding gas control. The encapsulated seat design provides accurate flow control and an extended component lifecycle. The optional gas-saver model keeps a constant level of gas pressure in the downstream system during the welding process. This prevents pressure and flow surges that can create gas waste and cause a poor weld. The CONCOA 6590 Series flowmeter regulator offers a wide range of delivery flows, making it an ideal choice for point-of-use applications.

Gas Saver wizard
  • Chloroprene diaphragm ensures steady pressure control
  • Medium-large seat displacement supports high flow capacity
  • CAPSULE® seat design provides maximum reliability and easy maintenance
  • Optional gas-saver model permits constant gas pressure and minimizes waste
  • Max inlet pressure: 200 PSIG (14 BAR)
  • Body: Forged brass
  • Bonnet: Chrome-plated, die-cast zinc
  • Seat: PTFE
  • Inlet filter: 25-micron sintered bronze
  • Temperature range: -40°F to 140°F (-40°C to 60°C)
  • Diaphragm: Chloroprene
  • Cv: 0.1
  • Inlet connections: CGA 034
  • Outlet connections: 5/8 in -18 (B) RH Int
  • Conformances: Cleanliness meets or exceeds CGA G-4.1; CRN OH5216.5
◂ scroll to see more ▸
Part Number Description Gas Service Flowmeter
8066590-01-1 Gas-saver, Adjustable Flowmeter Regulator Argon, Helium 10-60 SCFH Argon/
30-200 SCFH Helium Flowmeter
8066591-01-1 30 PSIG (2 BAR) Preset Delivery Pressure,
Flowmeter Regulator 		Argon, Carbon Dioxide 10-60 SCFH Argon/
10-55 SCFH Carbon Dioxide Flowmeter
8066594-01-1 30 PSIG (2 BAR) Preset Delivery Pressure,
Dual-flowmeter Regulator 		Argon, Carbon Dioxide Two 10-60 SCFH Argon/
10-55 SCFH Carbon Dioxide Flowmeters
8066597-01-1 30 PSIG (2 BAR) Preset Delivery Pressure,
Flowmeter Regulator 		Argon, Helium 10-60 SCFH Argon/
30-200 SCFH Helium Flowmeter
◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
6590 Series Flowmeter Regulators Catalog Page
English
IN6590FR
M
Download
Regulators Installation and Operation Instructions
English
ADI1608
L
Download
CONCOA Gas-Saver Brochure
English
SPF200
A
Download
CRN File OC15806
English
CRNOC15806
34
