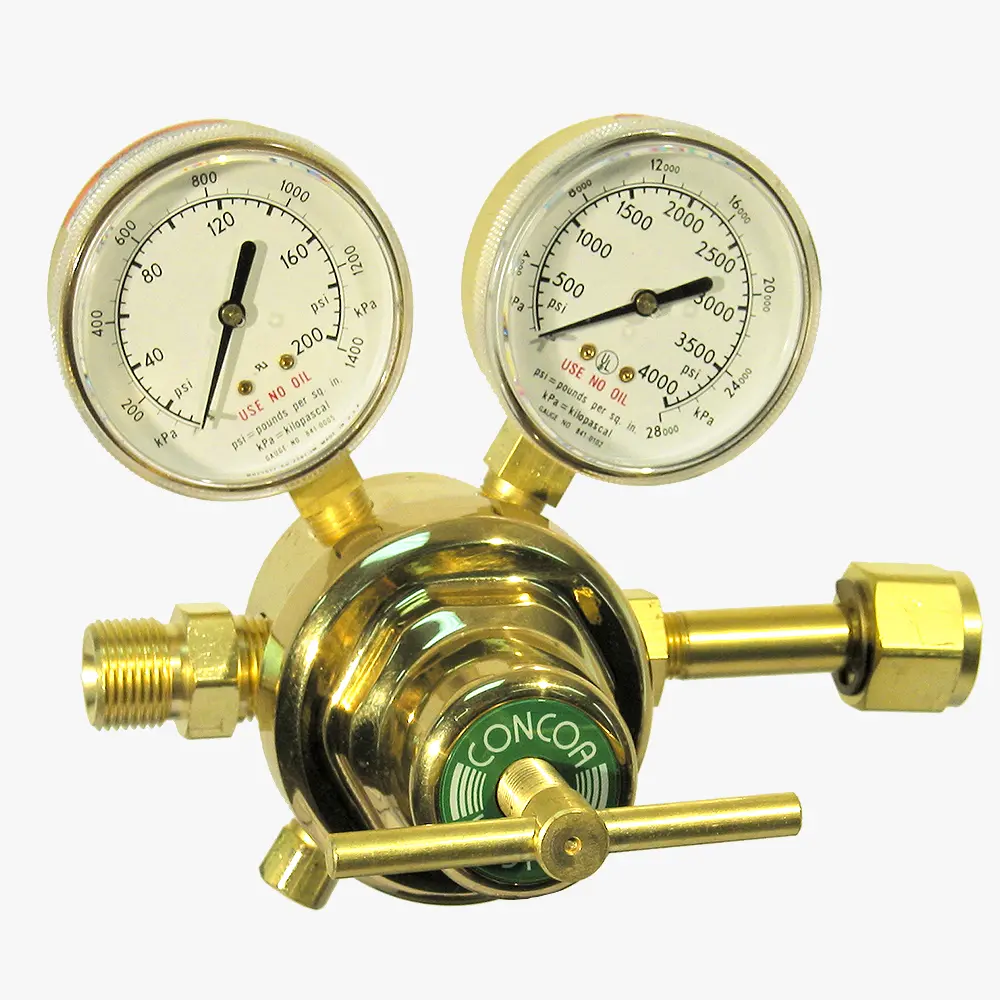

6700 Series Cylinder Regulator
The 6700 Series heavy-duty heating and cutting regulator provides steady and reliable pressure control in industrial gas cylinder applications requiring high flow rates. The balanced stem seat design minimizes static increment, shortens response times, and increases the usable range of delivery pressure control. Combined with robust materials of construction and a wide range of delivery pressures, the CONCOA 6700 Series regulator is ideal for rugged heating and cutting applications being supplied by gas cylinders.
- 1/2 in seat and inlet ports support ultra-high flow capacity
- 0-15 PSIG (0-1 BAR) to 0-200 PSIG (0-14 BAR) pressure range allows a broad range of applications
- Heavy machined brass bonnet ensures high durability
- Max inlet pressure (without peripherals): 3000 PSIG (210 BAR)
- Body: Brass barstock
- Bonnet: Forged brass
- Gauges: 2 1/2 in (63 mm) diameter brass
- Filter: 40-micron 316L stainless steel
- Temperature range: -40°F to 140°F (-40°C to 60°C)
- Diaphragm: Chloroprene
- Cv: 2.0
- Conformances: Cleanliness meets or exceeds CGA G-4.1; ANSI/ASME B40.1; CRN OF11809.2
Part Number | Gas Service | Seat | Inlet Connection | Outlet Connection | Max Delivery Pressure | Pressure Gauges |
---|---|---|---|---|---|---|
8066702-01-1 | Acetylene | Chloroprene | CGA 300 | 7/8 in -14 (C) LH Ext | 15 PSIG (1 BAR) |
0-30 PSIG/0-200 kPa and 0-400 PSIG/0-2800 kPa |
8066703-01-1 | Argon, Nitrogen, Helium, Carbon Dioxide Mixtures (inert gas) | FKM | CGA 580 | 7/8 in -14 (C) RH Int | 200 PSIG (14 BAR) |
0-400 PSIG/0-2800 kPa and 0-4000 PSIG/0-28,000 kPa |
8066705-01-1 | Argon, Nitrogen, Helium, Carbon Dioxide Mixtures (inert gas) | FKM | CGA 580 | 7/8 in -14 (C) RH Int | 120 PSIG (8 BAR) |
0-200 PSIG/0-1400 kPa and 0-4000 PSIG/0-28,000 kPa |
8066706-01-1 | Oxygen | FKM | CGA 540 | 7/8 in -14 (C) RH Ext | 120 PSIG (8 BAR) |
0-200 PSIG/0-1400 kPa and 0-4000 PSIG/0-28,000 kPa |
8066707-01-1 | Hydrogen/Methane | FKM | CGA 350 | 7/8 in -14 (C) LH Ext | 120 PSIG (8 BAR) |
0-200 PSIG/0-1400 kPa and 0-4000 PSIG/0-28,000 kPa |
8066708-01-1 | Compressed Air | FKM | CGA 346 | 7/8 in -14 (C) RH Ext | 120 PSIG (8 BAR) |
0-200 PSIG/0-1400 kPa and 0-4000 PSIG/0-28,000 kPa |
8066709-01-1 | Acetylene | Chloroprene | CGA 510 | 7/8 in -14 (C) LH Ext | 15 PSIG (1 BAR) |
0-30 PSIG/0-200 kPa and 0-400 PSIG/0-2800 kPa |
8066710-01-1 | Acetylene | Chloroprene | CGA 410 | 9/16 in -18 (B) LH Ext | 15 PSIG (1 BAR) |
0-30 PSIG/0-200 kPa and 0-400 PSIG/0-2800 kPa |
8066716-01-1 | Oxygen | FKM | CGA 540 | 7/8 in -14 (C) RH Ext | 200 PSIG (14 BAR) |
0-400 PSIG/0-2800 kPa and 0-4000 PSIG/0-28,000 kPa |
8066717-01-1 | Oxygen | FKM | CGA 540 | 9/16 in -18 (B) RH Ext | 200 PSIG (14 BAR) |
0-400 PSIG/0-2800 kPa and 0-4000 PSIG/0-28,000 kPa |
8066718-01-1 | Compressed Air | FKM | CGA 346 | 7/8 in -14 (C) RH Ext | 200 PSIG (14 BAR) |
0-400 PSIG/0-2800 kPa and 0-4000 PSIG/0-28,000 kPa |
8066732-01-1 | Fuel Gas | Chloroprene | CGA 510 | 7/8 in -14 (C) LH Ext | 40 PSIG (3 BAR) |
0-60 PSIG/0-415 kPa and 0-400 PSIG/0-2800 kPa |
8066733-01-1 | Fuel Gas | Chloroprene | CGA 510 | 9/16 in -18 (B) LH Ext | 40 PSIG (3 BAR) |
0-60 PSIG/0-400 kPa and 0-400 PSIG/0-2800 kPa |
8066787-01-1 | Carbon Dioxide | EPDM | CGA 320 | 7/8 in -14 (C) RH Int | 120 PSIG (8 BAR) |
0-200 PSIG/0-1400 kPa and 0-4000 PSIG/0-28,000 kPa |
8066788-01-1 | Carbon Dioxide | EPDM | CGA 320 | 7/8 in -14 (C) RH Int | 200 PSIG (14 BAR) |
0-400 PSIG/0-2800 kPa and 0-4000 PSIG/0-28,000 kPa |
