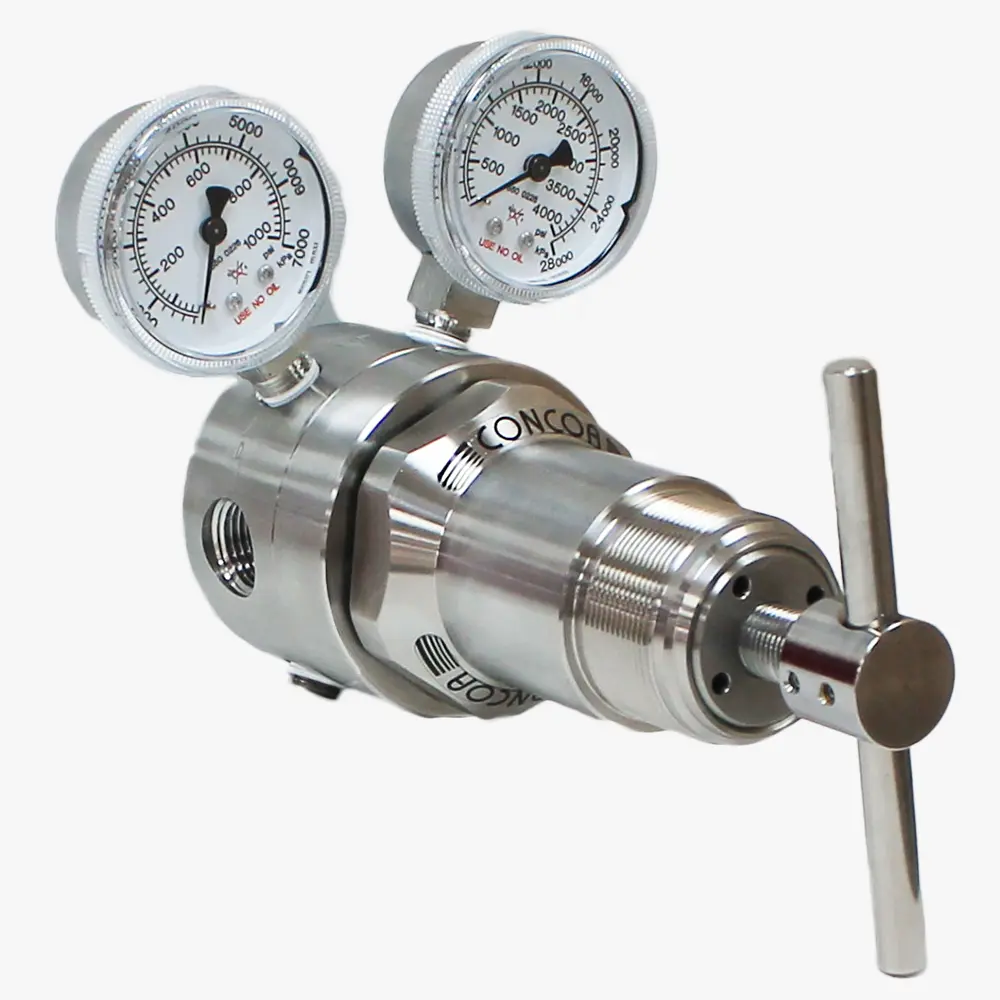

67S Series Regulator

Six-port, single stage, stainless steel barstock regulator for ultra-high flow applications
67S530N-01-000
Six-port, single stage, stainless steel barstock regulator for ultra-high flow applications
The 67S Series regulator provides steady and reliable control from liquid and high pressure gas sources requiring delivery pressures up to 750 PSIG (51 BAR) and flow rates up to 24,000 SCFH. The balanced stem seat design enables constant outlet pressure regardless of inlet pressure fluctuations. The CONCOA 67S Series high pressure, ultra-high flow regulator is ideal for high-pressure source applications.
  • FKM or EPDM seat allows customization and integration capabilities
  • Low static design delivers steady, reliable control
  • Delivery options up to 750 PSIG (51 BAR) accommodate a broad range of applications
  • Front and rear panel mount eases installation
  • 40-micron internal filter limits the possibility of gas contamination
  • Max inlet pressure (bare body): 3000 PSIG (210 BAR)
  • Body: 316L stainless steel barstock
  • Bonnet: 316L stainless steel barstock
  • Gauges: 2 in (50 mm) stainless steel
  • Seat: FKM or EPDM
  • Filter: 40-micron 316L stainless steel mesh
  • Temperature range: -40°F to 140°F (-40°C to 60°C)
  • Cv: 2.3
  • Ports (bare body): 1/2 in or 3/4 in FNPT (primary); 1/4 in FNPT (auxiliary)
  • Weight: 7.5 lbs (3.4 kg)
  • Conformances: Cleanliness meets or exceeds CGA G-4.1; PED 2014/68/EU; ANSI/ASME B40.1; CRN OH5216.5
◂ scroll to see more ▸

See catalog page for ordering information.

◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
67S Series Regulators Catalog Page
English
RS67S
AH
Download
Regulators Installation and Operation Instructions
English
ADI1608
L
Download
CRN File OH5216
English
CRNOH5216
26
