801 Series Station Outlet Valve

Station valve for industrial gas pipeline applications

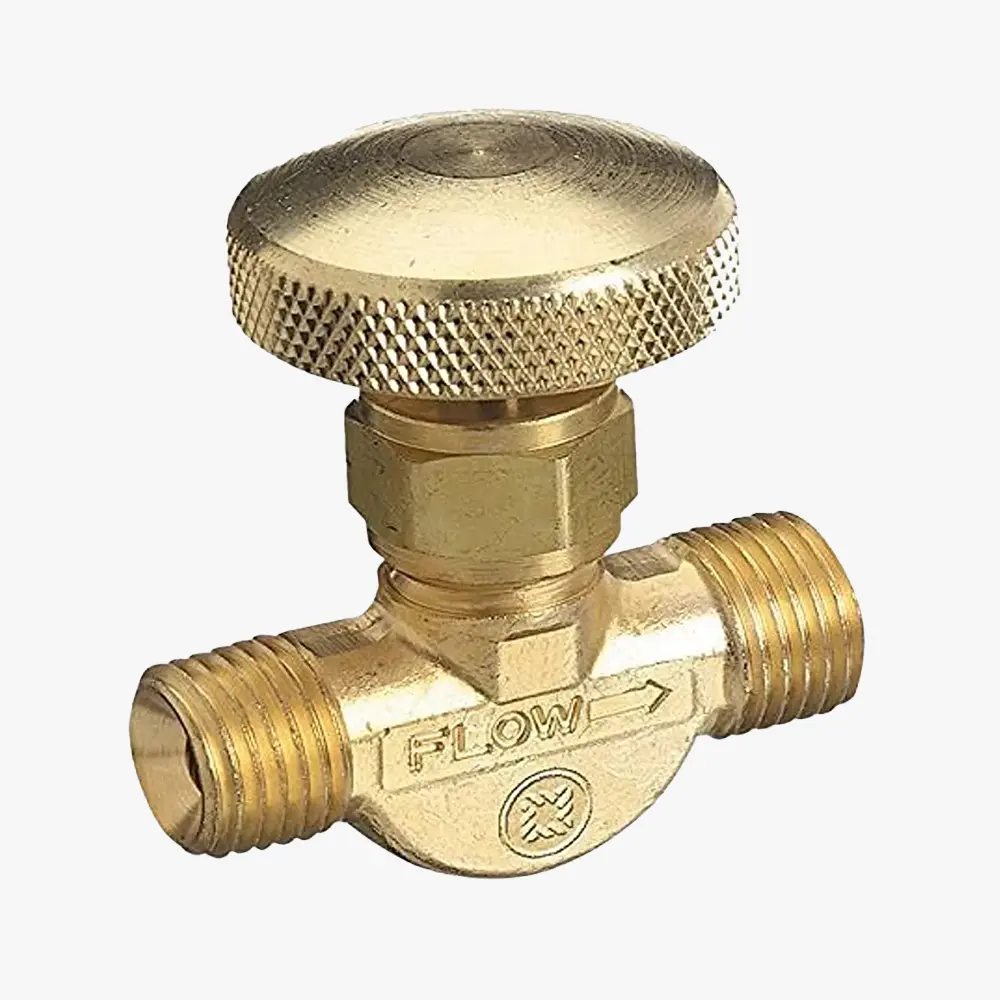

8010257 shown
Station valve for industrial gas pipeline applications

The 801 Series Station Outlet Valve is a brass seat shut-off valve used in low pressure distribution systems to ensure line pressure is maintained by isolating the point of use. The CONCOA industrial station outlet valve has a high flow capacity and is designed for station outlet line distribution, which uses oxygen, fuel gas, and inert gas.

  • Inlet and outlet options facilitate a variety of gas service requirements
  • Dynamic stem seal provides a tighter seal as pressure increases
  • Heavy duty brass body ensures functionality and durability
  • Optional plug and chain assembly prevents contamination when not in use
  • Body: Forged brass
  • Seat: Brass
  • Conformances: Cleanliness meets or exceeds CGA G-4.1
◂ scroll to see more ▸
Part Number Description Plug and Chain Assembly (Sold Separately)
8010257 Station Outlet Valve for Oxygen Service featuring 200 PSIG (14 BAR) Max Inlet Pressure and 1/4 in MNPT x 9/16 in -18 (B) RH Ext (CGA 022) Inlet/Outlet Connections 8010265
8010258 Station Outlet Valve for Fuel Gas Service featuring 200 PSIG (14 BAR) Max Inlet Pressure and 1/4 MNPT in x 9/16 in -18 (B) LH Ext (CGA 023) Inlet/Outlet Connections 8010266
8010259 Station Outlet Valve for Inert Gas Service featuring 200 PSIG (14 BAR) Max Inlet Pressure and 1/4 in MNPT x 5/8 in -18 (B) RH Ext (CGA 032) Inlet/Outlet Connections 8010267
8010379 Station Outlet Valve for General Gas Service featuring 3000 PSIG (210 BAR) Max Inlet Pressure and 1/4 in MNPT x 1/4 in FNPT Inlet/Outlet Connections NA
◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
Station Outlet Valves and Flow Adapters Catalog Page
English
INVA
M
