Cryogenic Vent Hose

Flexible stainless steel hose for vent connections to cryogenic liquid cylinders

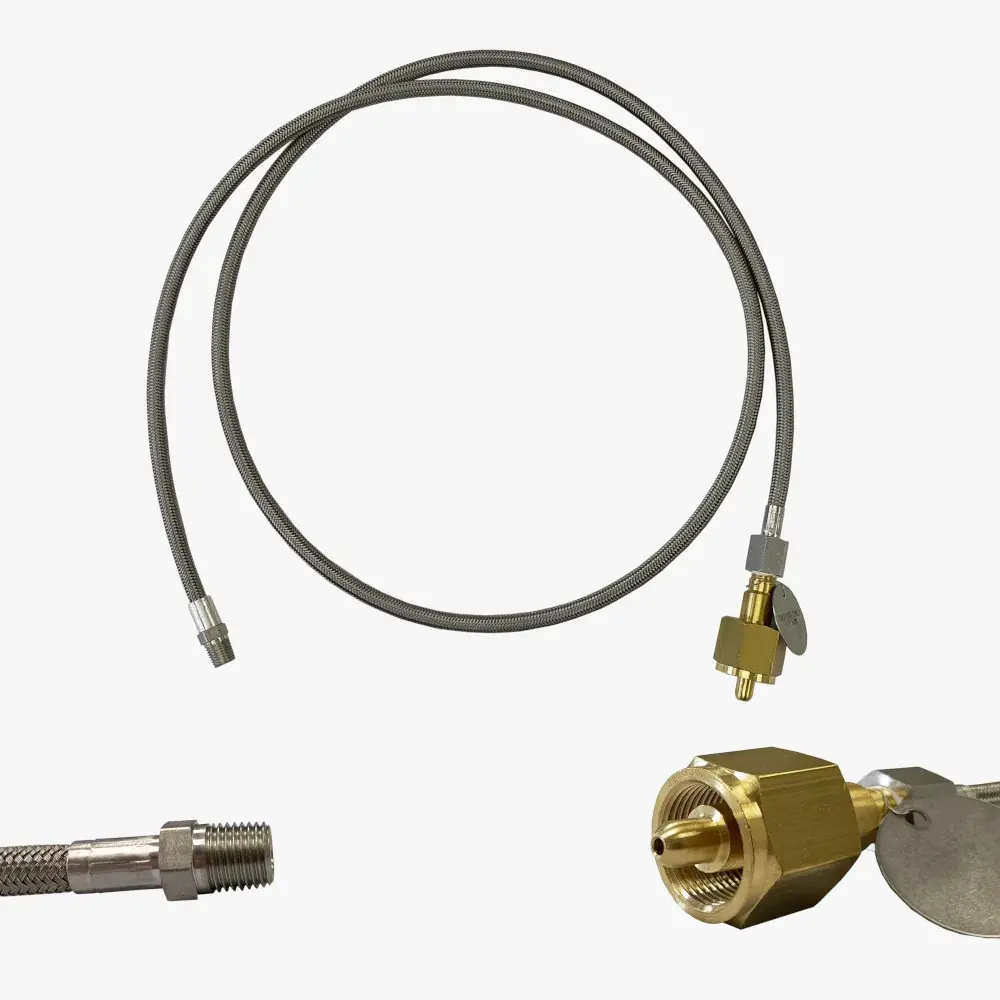

529 0242-01-622 shown
Flexible ss hose for vent connections to cryogenic liquid cylinders

The Cryogenic Vent Hose is specifically designed for the transfer of cryogenic gases. These stainless hoses offer complete flexibility, durability, and fast cool-down. Machined end connections and a long collar extend the hose life, and low-profile corrugations provide faster filling, lower pressure drop, and less product loss. The cryogenic vent hose is suitable for use with the 52L Series vent micromanifold and 629 micromanifold vent kit.

  • Stainless steel braid or kink-resistant armor casing protects the hose from damage and abrasions
  • Temperature range: -450°F to 1500°F (-265°C to 815°C)
  • Inner diameter: 0.250 in
  • Outer diameter: 0.375 in
  • Minimum bend radius: 6 in (152.4 mm)
  • Conformances: Cleaned for oxygen service; CRN OD18143.50
◂ scroll to see more ▸
Part NumberDescription Max Working Pressure
5290240-01-2956 ft (1.8 m) Cryogenic Vent Hose for Liquid Nitrogen and Argon featuring 1/4 in MNPT Outlet x CGA 295 Stainless Steel Cylinder Connection, Stainless Steel Core, and 304 Stainless Steel Armor Casing 500 PSIG (35 BAR)
5290241-01-4406 ft (1.8 m) Cryogenic Vent Hose for Liquid Oxygen featuring 1/4 in MNPT Outlet x CGA 440 Stainless Cylinder Connection, Stainless Steel Core, and 304 Stainless Steel Armor Casing 500 PSIG (35 BAR)
5290242-01-6226 ft (1.8 m) Cryogenic Vent Hose featuring 1/4 in MNPT Outlet x CGA 622 Brass Cylinder Connection, PTFE Core, and 304 Stainless Steel Braided Casing 500 PSIG (35 BAR)
◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
Tube Trailer and Flexible Hoses Catalog Page
English
INFH1
M
Download
CONCOA Life Sciences Brochure
English
SPF1010
B
Related Products

52L Series Vent MicroManifold
Modular vent manifold system for cryogenic liquid cylinder applications

629 Series MicroManifold
Compact manifold system for industrial gas applications
