Gas Cabinet Shells and Accessories

Gas cabinet shells and accessories for laboratory applications

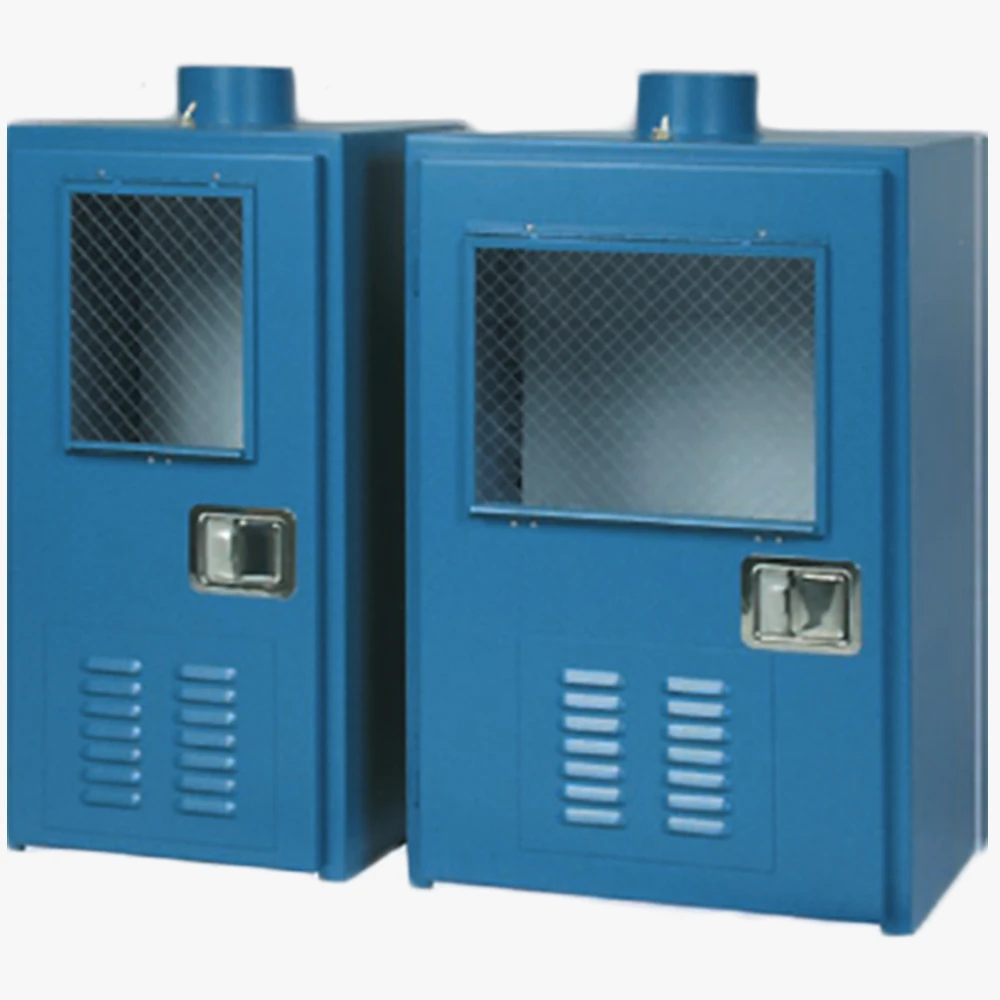

5182011 and 5182012 shown
Vented gas cabinet shells and accessories for toxic laboratory gases

CONCOA offers a wide range of gas cabinet shells with options and accessories to meet specific applications. Cabinet enclosures of one- to four-cylinder configurations are available. Accessories include gas cabinet vents, globe vent caps, replacement door windows, replacement door latches, shelving, and safety device options that are designed to add functional performance while providing the safest and most reliable means to deliver common flammable and hazardous laboratory gases. For fully integrated vented gas cabinet systems designed and manufactured under CONCOA ISO9000:2015 quality standards, consider CONCOA C-Series Standard Gas Cabinets or CONCOA Custom Gas Cabinet Systems.

  • Cabinet shells with extra heavy-duty welded steel construction protect cylinders and valves
  • Wire-reinforced door windows permit visual inspection for increased safety
  • Top-mounted sprinkler head with beeswax coating provides isolated fire protection
  • Keyed door latch prevents unwanted access to the cylinder and gas system
  • All stainless steel fasteners assure added durability and longevity
  • Cabinet material: 12-gauge steel (0.105 in)
  • Exhaust duct: 6 in (152 mm) diameter and 3 in (76 mm) high
  • Sprinkler activation point: 160°F - 165°F (71°C - 74°C)
  • Sprinkler head connection: 1/2 in MNPT
  • Cylinder brackets: 7 in - 10 in (177 mm - 254 mm ) diameter, chain and strap included
  • Fire-rated window: 1/4 in clear wire glass
  • Fasteners: Stainless steel
  • Conformances: S2-93 Safety guidelines; Meets international fire codes
◂ scroll to see more ▸
Part Number Description
5182001 One Cylinder Cabinet Shell, Blue, 250 lbs (113 kg)
5182002 Two Cylinder Cabinet Shell, Blue, 275 lbs (125 kg)
5182003 Three Cylinder Cabinet Shell, Blue, 375 lbs (170 kg)
5182004 Four Cylinder Cabinet Shell, Blue, 470 lbs (213 kg)
5182001-FD One Cylinder Cabinet Shell with Fire Damper, Blue, 250 lbs (113 kg)
5182002-FD Two Cylinder Cabinet Shell with Fire Damper, Blue, 275 lbs (125 kg)
5182003-FD Three Cylinder Cabinet with Fire Damper, Blue, 375 lbs (170 kg)
5182004-FD Four Cylinder Cabinet Shell with Fire Damper, Blue, 470 lbs (213 kg)
5182001-W One Cylinder Cabinet Shell, White, 250 lbs (113 kg)
5182002-W Two Cylinder Cabinet Shell, White, 275 lbs (125 kg)
5182003-W Three Cylinder Cabinet Shell, White, 375 lbs (170 kg)
5182004-W Four Cylinder Cabinet Shell, White, 470 lbs (213 kg)
5182001-WFD One Cylinder Cabinet Shell with Fire Damper, White, 250 lbs (113 kg)
5182002-WFD Two Cylinder Cabinet Shell with Fire Damper, White, 275 lbs (125 kg)
5182003-WFD Three Cylinder Cabinet Shell with Fire Damper, White, 375 lbs (170 kg)
5182004-WFD Four Cylinder Cabinet Shell with Fire Damper, White, 470 lbs (213kg)
5182101-01-1 Gas Cabinet Replacement Door Windows, Small 10 in x 13 in
5182102-01-1 Gas Cabinet Replacement Door Windows, Large 17 in x 13 in
5182103 Gas Cabinet Single Cylinder Shelf
5182107 Gas Cabinet Replacement Door Latch
5182108 Gas Cabinet Door Filter
5182109 Gas Cabinet Panel for use with One-Cylinder Cabinets, 17.5 in x 26 in
5182110 Gas Cabinet Panel for use with Two- and Four-Cylinder Cabinets, 22.5 x 26
5182111 Gas Cabinet Panel for use with Three-Cylinder Cabinets, 33 in x 26 in
5183000 Gas Cabinet Hood Vent Globe

For ordering informationContact Us

◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
C-Series Gas Cabinets Installation and Operation
English
ADI0008
A
Download
Emergency Shut-Off System Installation and Operating Instructions
English
ADI5850
K
Download
CONCOA Safe Handling of Flammable Gases in Laboratories Brochure
English
SPF650
C
