Laser Installation Kit

Complete gas delivery package for industrial laser setup

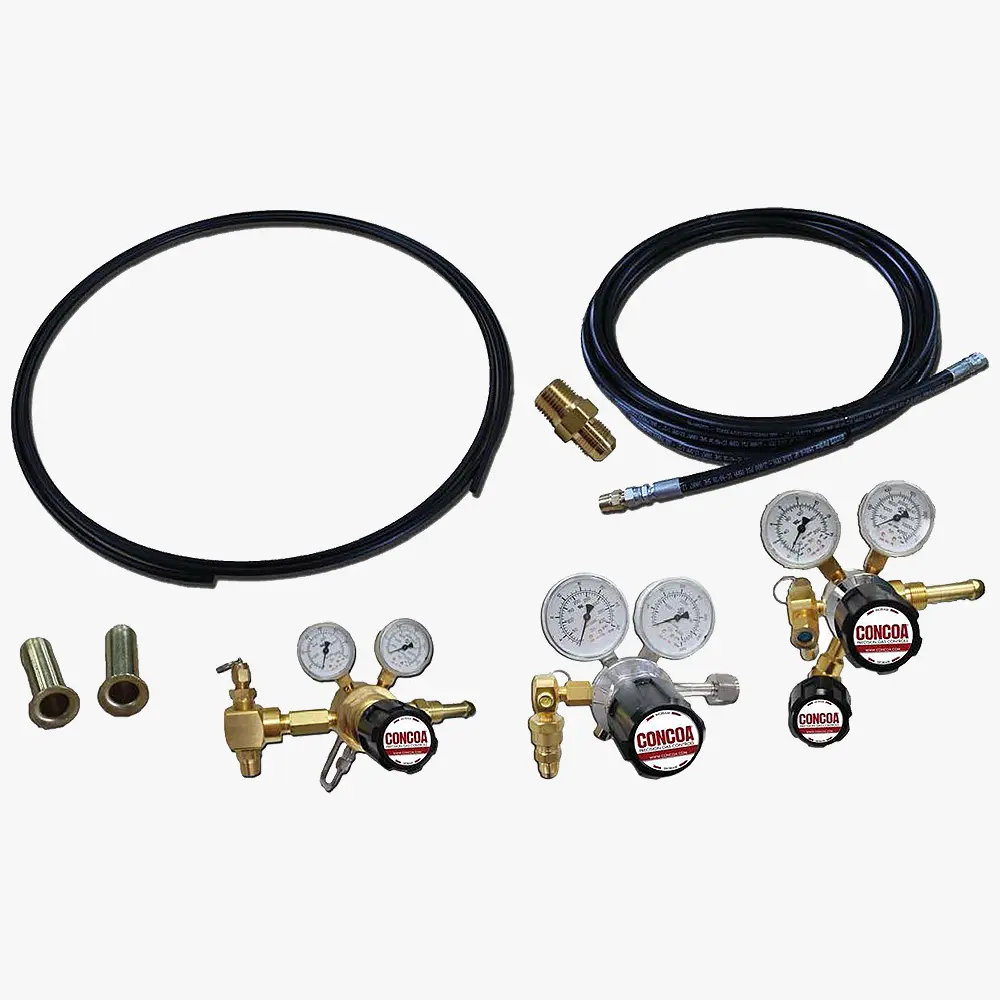

69KCC04 shown
Complete gas delivery package for industrial laser setup

The laser installation kit provides technicians with the necessary components to optimize laser gas performance from either high pressure or bulk gas sources. The 67B and 605 Series regulators included in the CONCOA Assist Kit utilize the innovative Isoflow™ technology to ensure dross-free piercing and rapid thick plate cutting. The CONCOA Resonator Kit includes the 601 Series, two stage regulator with integral purge, and utilizes low diffusion HDPE tubing to maintain gas purity when installing carbon dioxide lasers.

  • Variety of pre-packaged laser kits provide the necessary equipment for gas lasers, including laser resonator, laser assist, and process gases
  • High-quality kit components designed for laser applications ensure optimal performance and reliability
  • Max working pressure: 2000 PSIG (140 BAR)
  • Conformances: Cleanliness meets or exceeds CGA G-4.1; ANSI/ASME B40.1; CRN OH5216.5
◂ scroll to see more ▸
Part NumberDescription
69KCC01 Laser Assist Gas Kit featuring One (1) 67B Series Ultra-high Flow Regulator for Nitrogen (CGA 580), One (1) 605 Series Single Stage Regulator for Oxygen (CGA 540), Two (2) 25 ft Nylon Core, Fiber Reinforced, Polyurethane Coated 1/2 in Hoses with Steel 37° Female Flare Hose End Connections, and Four (4) Brass Male Adapters
69KCC02 Laser Resonator Pre-mix Kit featuring One (1) 601 Series Dual Stage Regulator with Integrated Purge for Premix Resonator Gas (CGA 580), One (1) 25 ft HDPE 1/4 in Hose, Two (2) Brass Compression Hose End Fittings, and Two (2) Brass Hose Inserts
69KCC03Laser Beam Purge Kit featuring One (1) 5268 Series Single Stage Regulator (CGA 580), Two (2) Brass Compression Hose End Fittings, and Two (2) Brass Hose Inserts
69KCC05 Individual Resonator Gas Kit featuring Three (3) 601 Series Dual Stage Regulators with Integrated Purge for Nitrogen, Helium, and Carbon Dioxide, Three (3) 25 ft HDPE 1/4 in Hoses, Six (6) Brass Compression Hose End Fittings, and Six (6) Brass Hose Inserts
◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
Industrial Laser Kits Catalog Page
English
LAKIT
K
Download
CONCOA Laser Installation Kits/67B Series Regulators Brochure
English
SPF850
A
Download
CRN File OH5216
English
CRNOH5216
26
