Medical Air Flowmeter

Flowmeter for medical air applications

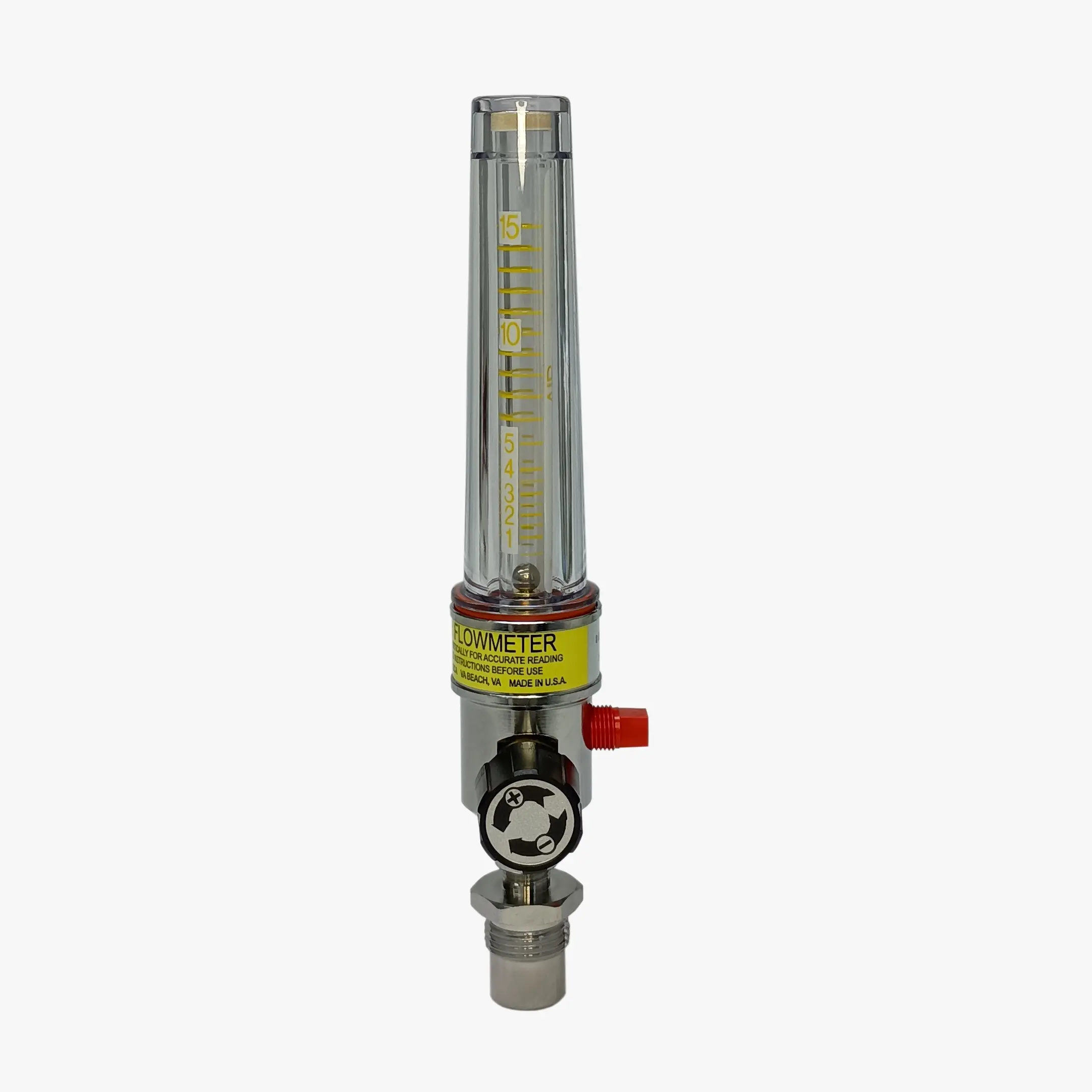

8052155-01-1 shown
Flowmeter for medical air applications

The 2000 Series medical air flowmeters precisely measure the flow rate of medical air within a range of 1-15 LPM. The 2000 Series flowmeter has a patented relief mechanism for increased protection to both operator and equipment in the event of over-pressurization. The 2000 Series medical air flowmeter is the right choice for clinical applications that require close monitoring and control of medical air delivery.

  • Compensated at 50 PSIG (3.5 BAR) ensures accurate reading
  • Resettable relief mechanism lowers maintenance costs
  • Gas service: Medical air
  • Body: Chrome-plated brass
  • Flowtube: polycarbonate
  • Compensation: 50 PSIG (3.5 BAR)
  • Conformances: FDA-listed; CRN OF15806.5
◂ scroll to see more ▸
Part Number Description Flow Range (@ 50 PSIG)
8052084-01-1 Medical Air Flowmeter with 1/4 in MNPT Inlet Connection
and DISS 1160 Outlet Connection 		1-8 LPM
8052085-01-1 Medical Air Flowmeter with 1/8 in FNPT Inlet Connection
and DISS 1160 Outlet Connection		 1-8 LPM
8052154-01-1 Medical Air Flowmeter with 1/4 in MNPT Inlet Connection
and DISS 1160 Outlet Connection 		1-15 LPM
8052155-01-1 Medical Air Flowmeter with 1/8 in FNPT Inlet Connection
and DISS 1160 Outlet Connection 		1-15 LPM
8052164-01-1 Medical Air Flowmeter with 1/8 in FNPT Inlet Connection
and DISS 1240 Outlet Connection		 1-8 LPM
8052165-01-1 Medical Air Flowmeter with1/8 in FNPT Inlet Connection
and DISS 1240 Outlet Connection		 1-15 LPM
8052251-01-1 Medical Air Flowmeter with OES Inlet Connection
and DISS 1240 Outlet Connection		 1-15 LPM
8052270-01-1 Medical Air Flowmeter with Hand-I-Twist Inlet Connection
and DISS 1240 Outlet Connection		 1-8 LPM
8052275-01-1 Medical Air Flowmeter with Diamond Long Inlet Connection
and DISS 1240 Outlet Connection		 1-8 LPM
8052277-01-1 Medical Air Flowmeter with Puritan Inlet Connection
and DISS 1240 Outlet Connection		 1-8 LPM
8052279-01-1 Medical Air Flowmeter with NCG Inlet Connection
and DISS 1240 Outlet Connection		 1-8 LPM
8052290-01-1 Medical Air Flowmeter with Hand-I-Twist Inlet Connection
and DISS 1240 Outlet Connection		 1-15 LPM
8052291-01-1 Medical Air Flowmeter with Union Nut & Gland Inlet Connection
and DISS 1240 Outlet Connection		 1-15 LPM
8052293-01-1 Medical Air Flowmeter with Med Star Inlet Connection
and DISS 1240 Outlet Connection		 1-15 LPM
8052295-01-1 Medical Air Flowmeter with Diamond Long Inlet Connection
and DISS 1240 Outlet Connection		 1-15 LPM
8052296-01-1 Medical Air Flowmeter with OES Inlet Connection
and DISS 1240 Outlet Connection		 1-15 LPM
8052297-01-1 Medical Air Flowmeter with Puritan Inlet Connection
and DISS 1240 Outlet Connection		 1-15 LPM
8052298-01-1 Medical Air Flowmeter with Diamond Short Inlet Connection
and DISS 1240 Outlet Connection		 1-15 LPM
8052299-01-1 Medical Air Flowmeter with NCG Inlet Connection
and DISS 1240 Outlet Connection		 1-15 LPM
◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
Medical Air Flowmeters Catalog Page
English
MMAF
R
Download
Medical Flowmeters Installation and Operation
English
ADI2111
D
Download
CRN File OF15806
English
CRNOF15806
34
