Medical Air Regulator

Regulator for medical air applications

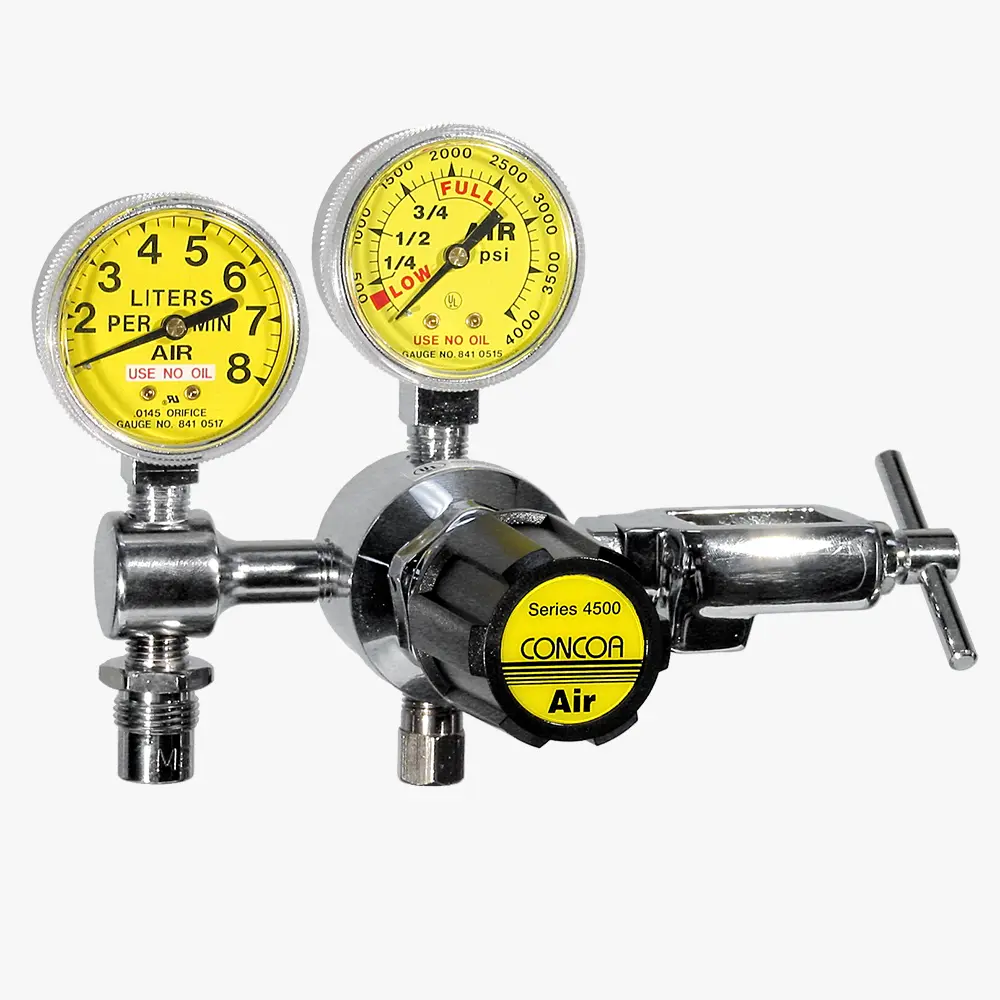

8064567-01-1 shown
Regulator for medical air applications

CONCOA offers a broad selection of medical regulators, including flowmeter regulators, flowgauge regulators, and adjustable and preset pressure regulators for medical air applications. Medical air regulators are designed for any situation requiring a continuous flow of medical air. They are designed for trouble-free service even under heavy demand, with a variety of connectors available to match the most popular methods of attachment for small, medium, or large cylinder applications, making them ideal for a variety of home health care, ambulance, and hospital applications. CONCOA medical regulators are FDA-listed for therapeutic use. However, they may not conform to local requirements for medical gas use outside the United States, and no CONCOA regulator is CE-listed for medical applications in Europe.

  • Large, easy-to-read color coated gauges ensure maximum readability
  • Adjustable knob allows easy pressure or flow adjustments (Adjustable models only)
  • Sintered filter provides additional safety and extends regulator life
  • PTFE seat material maximizes performance and service life
  • Max inlet pressure: 3000 PSIG (210 BAR)
  • Gas service: Medical air
  • Body: Chrome-plated brass barstock
  • Bonnet: Chrome-plated, die-cast zinc
  • Gauges: 2 in (50 mm) diameter plated case
  • Filter: 25-micron sintered bronze
  • Ports (bare body): 1/4 in FNPT
  • Seat: PTFE
  • Conformances: Cleanliness meets or exceeds CGA G-4.1; ANSI/ASME B40.1; CRN OH5216.5R2
◂ scroll to see more ▸
Part Number Description Inlet Connection Flow Range Outlet Connection Flowmeter/Gauges/
8064559-01-1 Flowmeter Regulator CGA 346 1-8 LPM DISS 1160 0-8 LPM Flowmeter and
0-4000 PSIG Inlet Gauge
8064560-01-1 Flowmeter Regulator CGA 346-H 1-8 LPM DISS 1160 0-8 LPM Flowmeter and
0-4000 PSIG Inlet Gauge
8064561-01-1 Flowmeter Regulator CGA 950 (Yoke) 1-8 LPM DISS 1160 0-8 LPM Flowmeter and
0-4000 PSIG Inlet Gauge
8064562-01-1 Flowmeter Regulator CGA 346 1-15 LPM DISS 1160 0-8 LPM Flowmeter and
0-4000 PSIG Inlet Gauge
8064563-01-1 Flowmeter Regulator CGA 346-H 1-15 LPM DISS 1160 0-15 LPM Flowmeter and
0-4000 PSIG Inlet Gauge
8064564-01-1 Flowmeter Regulator CGA 950 (Yoke) 1-15 LPM DISS 1160 0-15 LPM Flowmeter and
0-4000 PSIG Inlet Gauge
8064565-01-1 Flowgauge Regulator CGA 346 2-8 LPM DISS 1160 0-8 LPM Outlet Gauge and
0-4000 PSIG Inlet Gauge
8064566-01-1 Flowgauge Regulator CGA 346-H 2-8 LPM DISS 1160 0-8 LPM Flowgauge and
0-4000 PSIG Inlet Gauge
8064567-01-1 Flowgauge Regulator CGA 950 (Yoke) 2-8 LPM DISS 1160 0-8 LPM Flowgauge and
0-4000 PSIG Inlet Gauge
8064568-01-1 Preset Pressure Regulator CGA 346 50 PSIG
(3.5 BAR)		 DISS 1160 No Outlet Gauge and
0-4000 PSIG Inlet Gauge
8064569-01-1 Preset Pressure Regulator CGA 346-H 50 PSIG
(3.5 BAR)		 DISS 1160 No Outlet Gauge and
0-4000 PSIG Inlet Gauge
8064570-01-1 Preset Pressure Regulator CGA 950 (Yoke) 50 PSIG
(3.5 BAR)		 DISS 1160 No Outlet Gauge and
0-4000 PSIG Inlet Gauge
8064571-01-1 Adjustable Pressure Regulator (no flow control) CGA 346 0-100 PSIG
(0-7 BAR) 		DISS 1160 0-100 PSIG Outlet Gauge
and 0-4000 PSIG Inlet Gauge
8064572-01-1 Adjustable Pressure Regulator (no flow control) CGA 346-H 0-100 PSIG
(0-7 BAR)		 DISS 1160 0-100 PSIG Outlet Gauge
and 0-4000 PSIG Inlet Gauge
8064573-01-1 Adjustable Pressure Regulator (no flow control) CGA 950 (Yoke) 0-100 PSIG
(0-7 BAR)		 DISS 1160 (0-7 BAR) 0-100 PSIG Outlet Gauge
and 0-4000 PSIG Inlet Gauge
8064574-01-1 Flowmeter Regulator CGA 346 1-8 LPM DISS 1240 0-8 LPM Flowmeter and
0-4000 PSIG Inlet Gauge
8064575-01-1 Flowmeter Regulator CGA 346-H 1-8 LPM DISS 1240 0-8 LPM Flowmeter and
0-4000 PSIG Inlet Gauge
8064576-01-1 Flowmeter Regulator CGA 950 (Yoke) 1-8 LPM DISS 1240 0-8 LPM Flowmeter and
0-4000 PSIG Inlet Gauge
8064577-01-1 Flowmeter Regulator CGA 346 1-15 LPM DISS 1240 0-15 LPM Flowmeter and
0-4000 PSIG Inlet Gauge
8064578-01-1 Flowmeter Regulator CGA 346-H 1-15 LPM DISS 1240 0-15 LPM Flowmeter and
0-4000 PSIG Inlet Gauge
8064579-01-1 Flowmeter Regulator CGA 950 (Yoke) 1-15 LPM DISS 1240 0-15 LPM Flowmeter
and 0-4000 PSIG Inlet Gauge
◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
Medical Air Regulators Catalog Page
English
MMAR
R
Download
Medical Gas Cylinder Pressure and Flow Control Regulators Installation and Operation
English
ADI2051
K
Download
CRN File OH5216
English
CRNOH5216
26
