MPH Heating Head

Propylene heating head for 800 Series torch

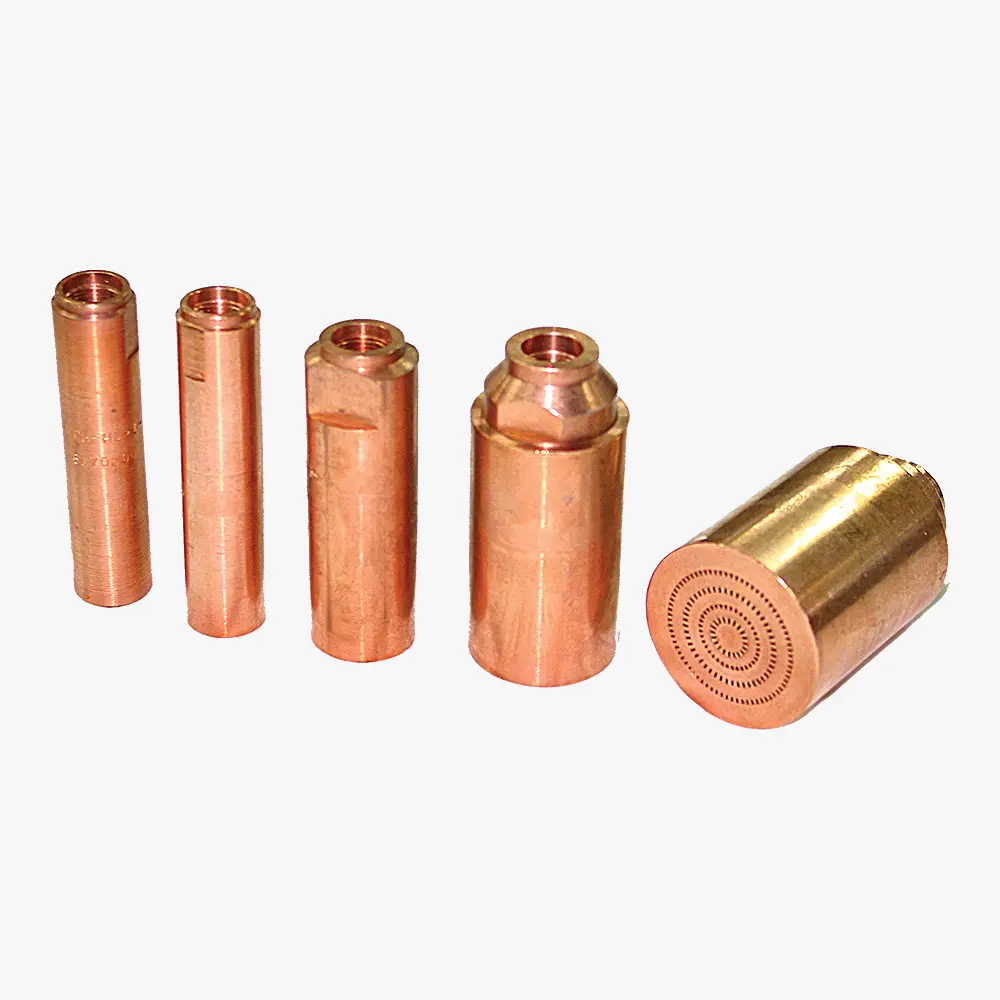

8170500-8170504-01-1 shown
CONCOA MPH heating head

The CONCOA MPH heating head for use with propylene gas is compatible with all flame ends. The head is removable for replacement or for changing to other flame head sizes. The MPH heating head for use with the CONCOA 800 Series torch requires a CONCOA external thread adapter, a jet mixer, and a gooseneck extension. The gooseneck extension is available in either 18-inch (46 cm), 24-inch (61 cm), or 42-inch (107 cm) lengths to provide extended reach based on job requirements.
Please Note: The adapter, jet mixer, and gooseneck extension are not included and must be ordered separately.

◂ scroll to see more ▸
Part Number Style Requires Mixer (not included) Requires Adapter (not included) Requires Extension (not included)
8170500-01-1 MPH-HD1 8110899 8170327 8110853 Gooseneck Extension 18 in (46 cm),
8110991 Gooseneck Extension 24 in (61 cm),
8110992 Gooseneck Extension 42 in (107 cm)
8170501-01-1 MPH-HD2 8110899 8170327 8110853 Gooseneck Extension 18 in (46 cm),
8110991 Gooseneck Extension 24 in (61 cm),
8110992 Gooseneck Extension 42 in (107 cm)
8170502-01-1 MPH-HD3 8110899 8170327 8110853 Gooseneck Extension 18 in (46 cm),
8110991 Gooseneck Extension 24 in (61 cm),
8110992 Gooseneck Extension 42 in (107 cm)
8170503-01-1 MPH-HD4 8110899 8170327 8110853 Gooseneck Extension 18 in (46 cm),
8110991 Gooseneck Extension 24 in (61 cm),
8110992 Gooseneck Extension 42 in (107 cm)
8170504-01-1 MPH-HD5 8110899 8170327 8110853 Gooseneck Extension 18 in (46 cm),
8110991 Gooseneck Extension 24 in (61 cm),
8110992 Gooseneck Extension 42 in (107 cm)
◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
Heating Tips and Heating Heads Catalog Page
English
IN860HT
M
Download
Safe Practices in Oxy-Fuel Welding and Cutting Brochure
English
ADE0872
AE
