Style 45 Machine Cutting Tip

One-piece, brass acetylene machine cutting tip

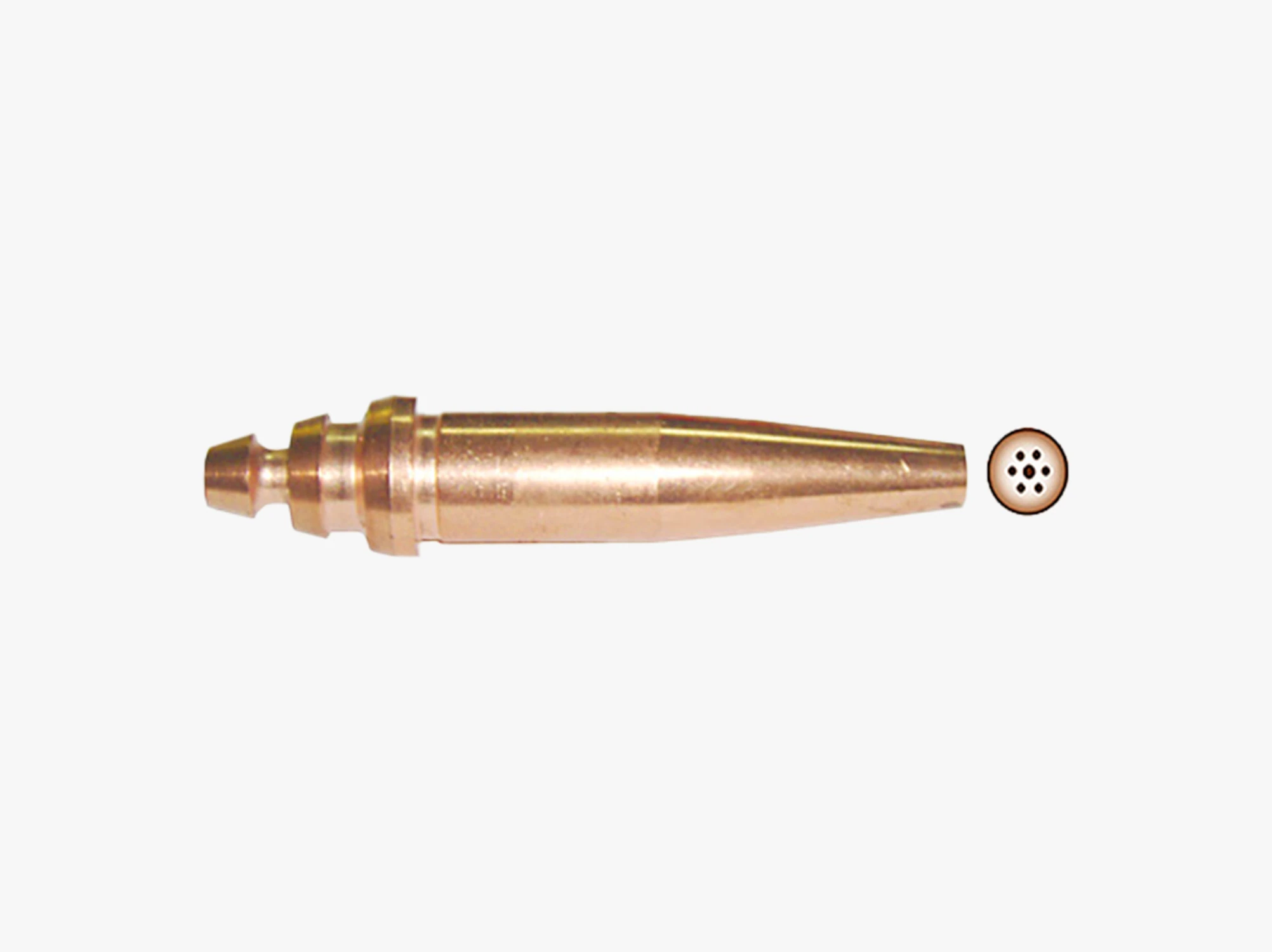

8544502-01-1 shown
Style 45 One-piece, brass acetylene machine cutting tip
Style 45 one-piece brass acetylene machine cutting tip is designed with a divergent bore. The medium preheat Style 45 tip has six preheat flames ideal for shape cutting.

Note: Style 45 one-piece cutting tips cutting tips are no longer available. Please see Style 164 one-piece cutting tips and refer to the Ordering Information matrix for specifications and comparable tip sizes.

◂ scroll to see more ▸
Part Number Tip Size Drill Size Material Thickness Speed Oxygen Fuel
8134500-00-1 #0 74 (.022 in) 1/4 in (.6 cm) 24-28 IPM 120 PSIG/70 SCFH 3 PSIG/14 SCFH
8134501-00-1 #1 69 (.029 in) 3/8 in (.9 cm) 23-26 IPM 85 PSIG/87 SCFH 3 PSIG/18 SCFH
8134501-00-1 #1 69 (.029 in) 1/2 in (1.3 cm) 18-22 IPM 100 PSIG/98 SCFH 3 PSIG/18 SCFH
8134502-00-1 #2 65 (.035 in) 3/4 in (1.9 cm) 17-21 IPM 100 PSIG/122 SCFH 3 PSIG/18 SCFH
8134502-00-1 #2 65 (.035 in) 1 in (2.5 cm) 16-20 IPM 110 PSIG/130 SCFH 3 PSIG/18 SCFH
8134503-01-1 #3 58 (.042 in) 1 1/4 in (3.2 cm) 16-19 IPM 85 PSIG/153 SCFH 4 PSIG/25 SCFH
8134503-01-1 #3 58 (.042 in) 1 1/2 in (3.8 cm) 14-17 IPM 100 PSIG/171 SCFH 4 PSIG/25 SCFH
8134504-01-1 #4 56 (.046 in) 2 in (5.1 cm) 11-15 IPM 100 PSIG/228 SCFH 4 PSIG/25 SCFH
8134504-01-1 #4 56 (.046 in) 2 1/2 in (6.4 cm) 9-13 IPM 110 PSIG/244 SCFH 4 PSIG/25 SCFH
◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
Safe Practices in Oxy-Fuel Welding and Cutting Brochure
English
ADE0872
AE
