Style 80 Long-Flame Welding Tip

Long-flame welding tip and mixer assembly for 800 Series torch

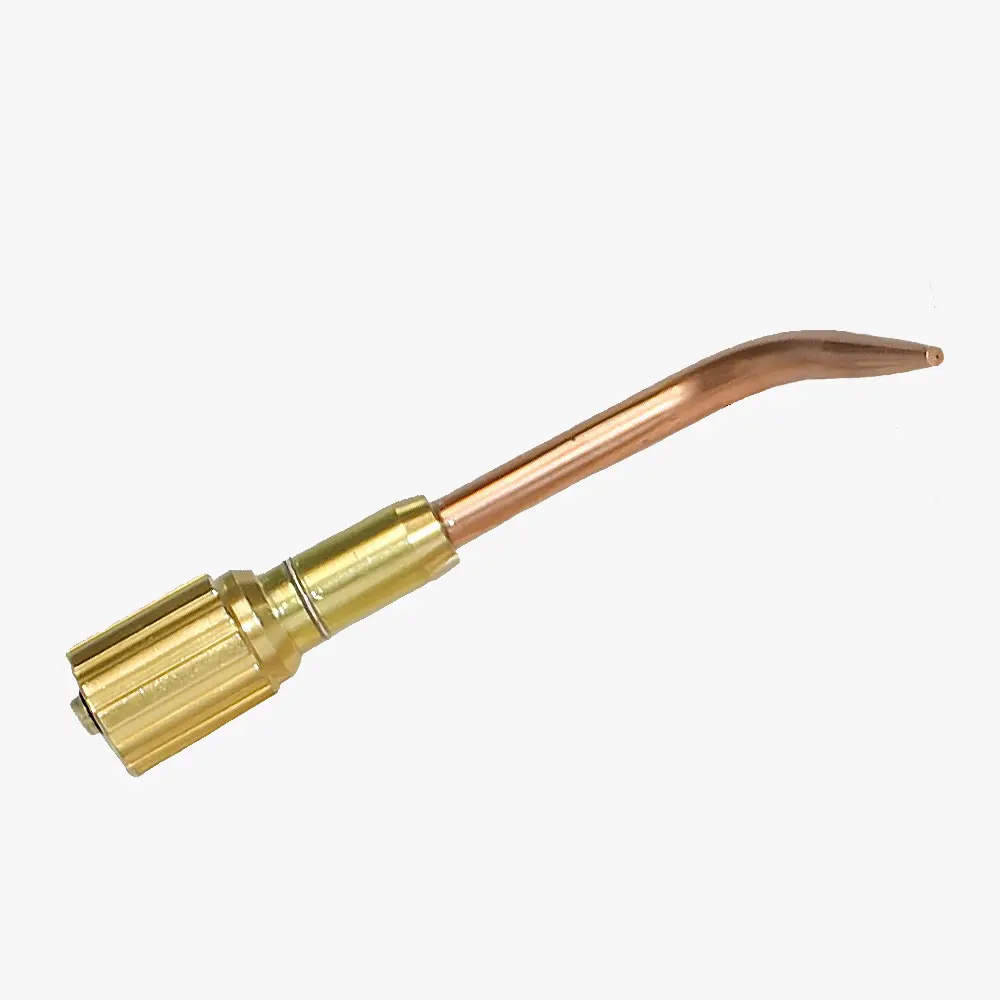

8118000-00-1 shown
Style 80 Long-flame welding tip

Style 80 Long-flame welding tip is for use with CONCOA 800 Series torch handles. Style 80 long-flame welding tip and mixer assembly includes a Style 98 welding tip and matched mixer. The matched mixer is large enough to allow sufficient gas flow and assures a full-range flame, making it ideal for all welding and brazing applications.

◂ scroll to see more ▸
Part Number Includes Tip Style 98 Tip Size Drill Size Includes Mixer Acetylene Oxygen Propylene Oxygen
8118000-00-1 8119800-00-1 #0 72
(.025 in) 		8110890 2 PSIG/
2.1 SCFH		 2 PSIG/
2.3 SCFH		 1 PSIG 2-3 PSIG
8118001-00-1 8119801-00-1 #1 68
(.031 in) 		8110890 2 PSIG/
2.5 SCFH		 2 PSIG/
2.75 SCFH		 1-2 PSIG 3-4 PSIG
8118002-00-1 8119802-00-1 #2 62
(.032in) 		8110890 2 PSIG/
4 SCFH		 2 PSIG/
4.4 SCFH		 1-2 PSIG 3-4 PSIG
8118003-00-1 8119803-00-1 #3 56
(.047 in) 		8110890 2 PSIG/
5.5 SCFH		 2 PSIG/
6.0 SCFH		 1-2 PSIG 3-4 PSIG
8118004-00-1 8119804-00-1 #4 54
(.055 in) 		8110890 2 PSIG/
7.5 SCFH		 2 PSIG/
8.25 SCFH		 1-2 PSIG 3-5 PSIG
8118005-00-1 8119805-00-1 #5 51
(.067 in) 		8110890 2 PSIG/
10 SCFH		 3 PSIG/
11 SCFH		 1-3 PSIG 3-5 PSIG
8118006-00-1 8119806-00-1 #6 48
(.076 in) 		8110890 2 PSIG/
15 SCFH		 3 PSIG/
16.5 SCFH		 1-3 PSIG 3-5 PSIG
8118007-00-1 8119807-00-1 #7 44
(.086 in) 		8110890 3 PSIG/
22 SCFH		 4 PSIG/
24 SCFH		 2-4 PSIG 3-6 PSIG
8118008-00-1 8119808-00-1 #8 40
(.098 in) 		8110890 4 PSIG/
32 SCFH		 5 PSIG/
32.2 SCFH		 3-5 PSIG 5-9 PSIG
8118009-00-1 8119809-00-1 #9 35
(.110 in) 		8110890 5 PSIG/
44 SCFH		 6 PSIG/
48.4 SCFH		 3-5 PSIG 5-9 PSIG
8118010-00-1 8119810-00-1 #10 30
(.129 in) 		8110890 7 PSIG/
60 SCFH		 10 PSIG/
66 SCFH		 3-5 PSIG 5-9 PSIG
◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
Style 80 Welding Tips Catalog Page
English
INS80
M
Download
Safe Practices in Oxy-Fuel Welding and Cutting Brochure
English
ADE0872
AE
