Style A-SP Cutting Tip

One-piece, straight bore cutting tip for use with propylene
Style A-SP One-piece, straight bore cutting tip for use with propylene

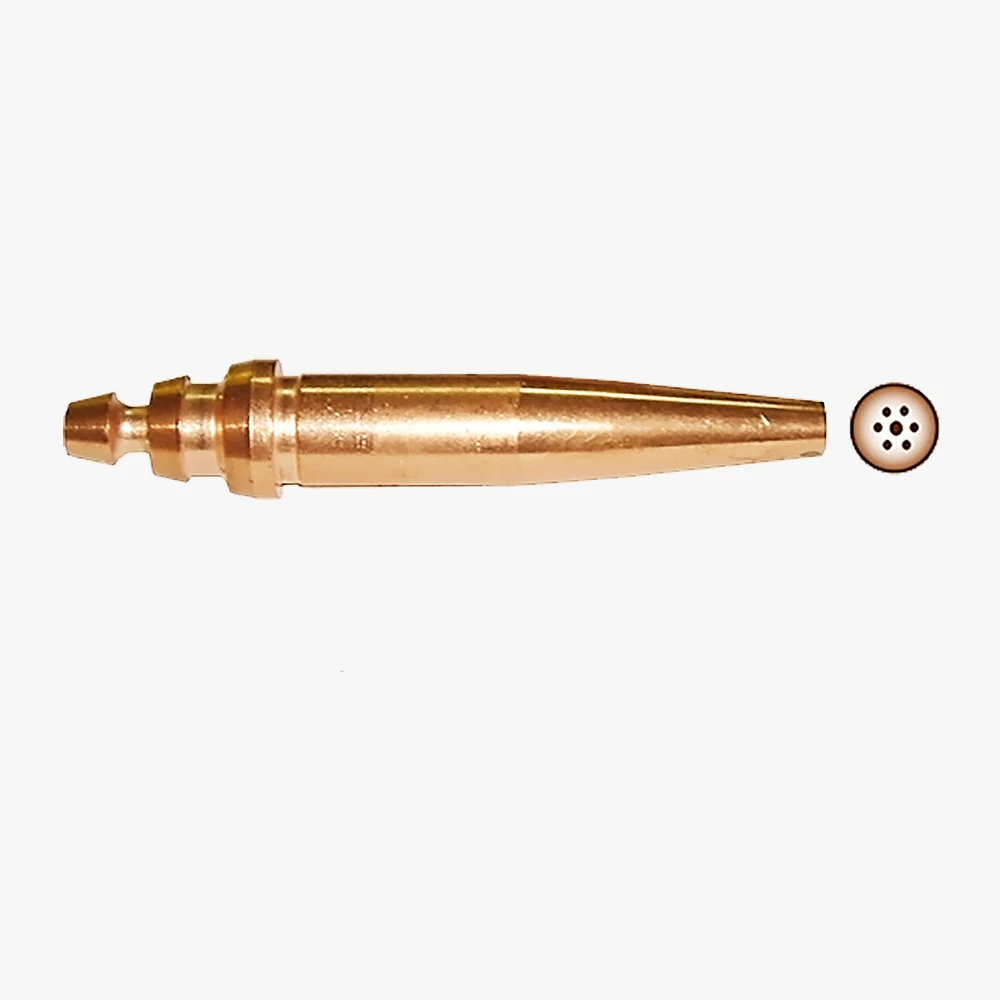

CONCOA Style A-SP one-piece tip is a solid copper, standard speed cutting tip with a straight bore oxygen orifice. Style A-SP medium preheat tips are most commonly used for hand cutting material up to 15 inches (38 cm) with propylene

Note: Style A-SP one-piece cutting tips are no longer available. Please see CONCOA Style 245 General Purpose Cutting Tips. Refer to the Ordering Information matrix for comparable tip sizes and specifications.

◂ scroll to see more ▸
Part Number Tip Size Drill Size Material Thickness Speed Oxygen Fuel Gas
8560072-00-1 #00 72 (.025 in) 3/16 in (0.5 cm) 17-24 IPM 55 PSIG/40-45 SCFH 2-3 PSIG/6-8 SCFH
8560068-00-1 #0 68 (.031 in) 1/4 in (0.6 cm) 16-23 IPM 40 PSIG/55-65 SCFH 2-3 PSIG/6-8 SCFH
8560065-00-1 #0 65 (.035 in) 3/8 in (0.9 cm) 16-23 IPM 45 PSIG/55-65 SCFH 3-4 PSIG/7-10 SCFH
8560060-00-1 #1 60 (.040 in) 1/2 in (1.3 cm) 14-18 IPM 50 PSIG/80-90 SCFH 3-4 PSIG/7-10 SCFH
8560056-00-1 #2 56 (.046 in) 3/4 in (1.8 cm) 10-14 IPM 55 PSIG/115-120 SCFH 4-5 PSIG/10-14 SCFH
8560054-00-1 #3 54 (.055 in) 1.25 in (3.2 cm) 9-13 IPM 55 PSIG/165-180 SCFH 4-5 PSIG/10-14 SCFH
8560052-00-1 #4 52 (.063 in) 2 in (5.1 cm) 8-12 IPM 55 PSIG/230-245 SCFH 5-6 PSIG/14-18 SCFH
8560049-00-1 #5 49 (.073 in) 3 in (7.6 cm) 7-11 IPM 50 PSIG/285-300 SCFH 5-6 PSIG/14-18 SCFH
8560044-00-1 #6 44 (.086 in) 4 in (10.2 cm) 6-9 IPM 60 PSIG/670-685 SCFH 6-7 PSIG/14-18 SCFH
8560038-00-1 #6 38 (.102 in) 8 in (20.3 cm) 6-9 IPM 65 PSIG/715-730 SCFH 6-7 PSIG/14-18 SCFH
8560031-00-1 #7 31 (.120 in) 10 in (25.4 cm) 5-8 IPM 65 PSIG/935-945 SCFH 7-8 PSIG/18-20 SCFH
8560028-00-1 #7 28 (.140 in) 12 in (30.5 cm) 5-8 IPM 70 PSIG/985-1000 SCFH 7-8 PSIG/18-20 SCFH
8560019-00-1 #8 19 (.166 in) 14 in (35.6 cm) 4-6 IPM 70 PSIG/1075-1090 SCFH 7-8 PSIG/18-20 SCFH
8560015-00-1 #8 19 (.166 in) 15 in (38 cm) 4-6 IPM 70 PSIG/1075-1090 SCFH 7-8 PSIG/18-20 SCFH
