Switchover Stand

Floor stand and process station for manifold extensions and switchovers

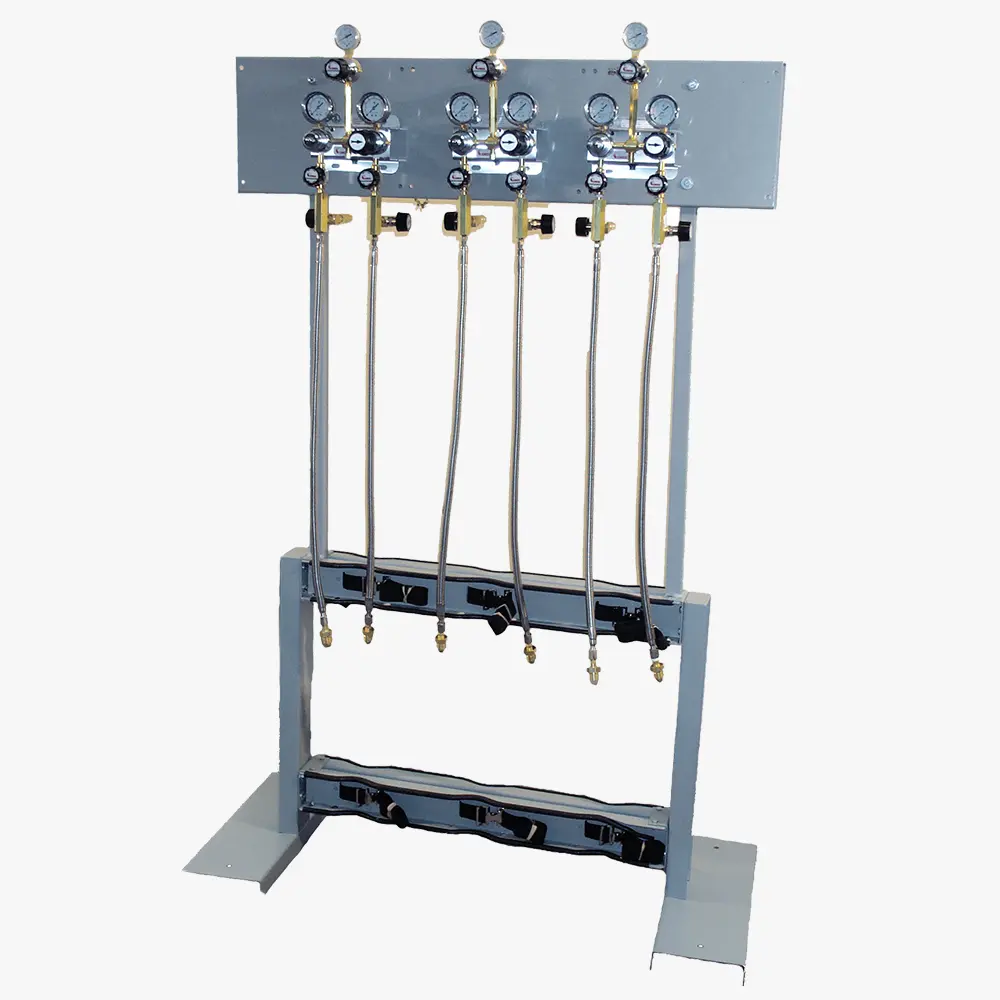

5181725-01-001 shown
Floor stand and process station for manifold extensions and switchovers

CONCOA switchover floor stand designed to mount the 526 or 527 Series switchover or manifold extension in locations where a permanent structure is unavailable, or wall mounting is inconvenient. Stands are pre-drilled for floor mounting, supplied with heavy-duty polypropylene support straps, include openings to retrofit secondary support chains for an improved level of safety, and are available in two to six-cylinder configurations. CONCOA switchover and manifold floor stands are designed and built for the safe storage of industrial and commercial use gas cylinders.

  • Powder-coated painted steel construction ensures chemical resistance and long service life
  • Steel reinforced bumper guard edging provides extra grip and protects cylinders from damage
  • Steel frame and strap design secures cylinders from 4 in (102 mm) to 12 in (305 mm) in diameter
  • Stand material: Powder-coated steel
  • Cylinder bracket material: 11-gauge, hot rolled steel
  • Strap material: 1.5 in x 54 in polypropylene with plated spring buckle
◂ scroll to see more ▸
Part Number Description Dimensions (W x D x H)
5181610 Cylinder Floor Mount Stand Holds 1-Cylinder in the Vertical Position with Top and Bottom Tiedown Straps 18 in x 13.75 in x 72 in
(457 mm x 349 mm x 1829 mm)
5181624 Single Switchover Floor Mount Process Station for 2-Cylinder Storage with Top and Bottom Tiedown Straps 28 in x 10.5 in x 72 in
(711 mm x 267 mm x 1829 mm)
5181625 Single Switchover Floor Mount Process Station for 2-Cylinder Storage with Top Tiedown Straps 28 in x 10.5 in x 72 in
(711 mm x 267 mm x 1829 mm)
5181645 Switchover Floor Mount Process Station for 4-Cylinder Storage with Top and Bottom Tiedown Straps 52 in x 14 in x 72 in
(1321 mm x 356 mm x 1829 mm)
5181725-01-001 6-Cylinder Floor Mount Process Station with Back-to-Back Configuration of 3-Cylinders per Side 44 in x 23 in x 72 in
(1118 mm x 584 mm x 1829 mm)
8307437 Free Standing Manifold Floor Stand Supports up to Two Standard Length (12 in (305 mm)) Extensions Installed Consecutively 6 in x 6 in x 84 in
(152 mm x 152 mm x 2134 mm)
8307439 Free Standing AutoSwitch/IntelliSwitch Floor Stand with Dual Vertical Post Support 12 in x 12 in x 84 in
(305 mm x 305 mm x 2134 mm)
◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
Switchover Stations Catalog Page
English
RSSTND
AH
Download
Mani-Flex™ AutoSwitch Installation and Operation
English
ADI3059
B
Download
Manifold/AutoSwitch Free Standing Assembly Instructions
English
ADI3239
A
