1600 Series Industrial Flowmeter

Industrial gas flowmeter for high flow welding and blanketing

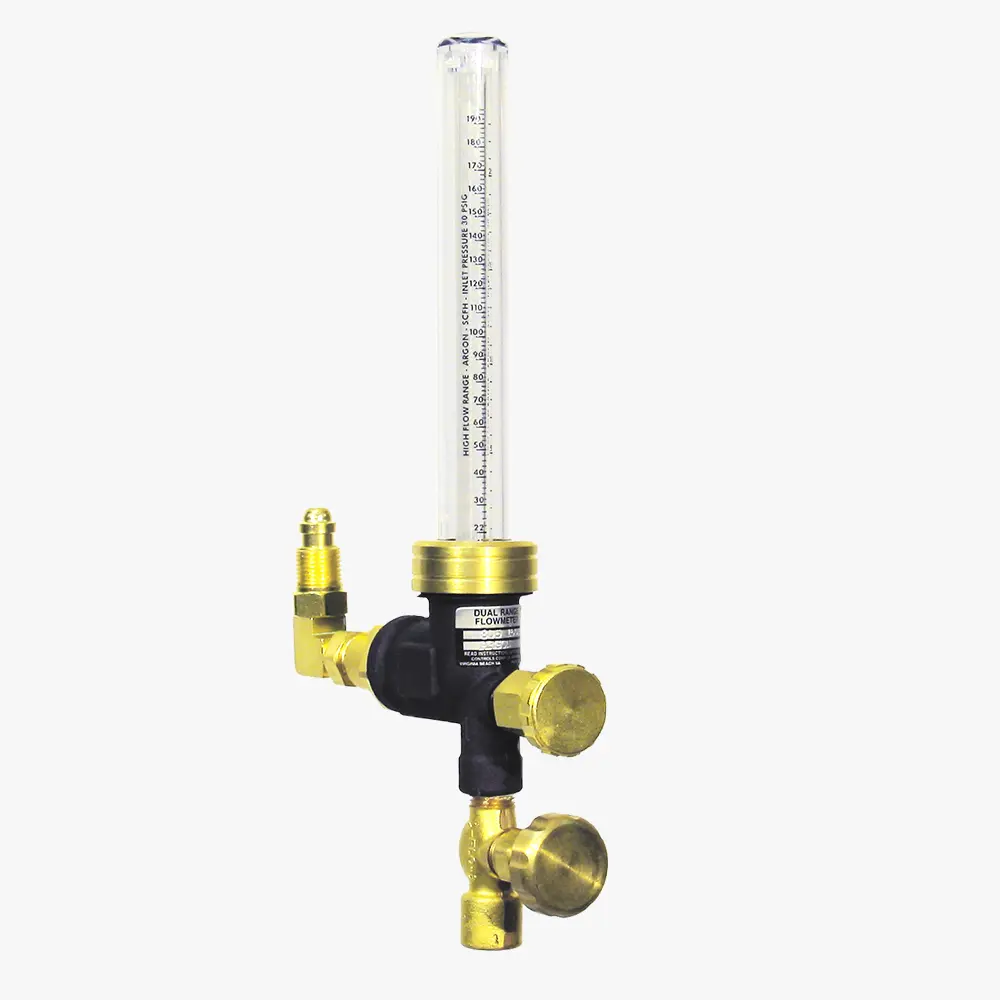

8051601-01-1 shown

CONCOA 1600 Series dual range flowmeters are ideal for the metering of gas in welding applications where control and a constant visual check of flowrate, in standard cubic feet per hour, are required. A control valve regulates the rate of flow in either a high or low range, and a selector valve provides instant, in-service switching from one flow range to the other. The uniquely designed inlet connection assembly enables the flowmeter to be placed in a vertical position regardless of the angle of projection of the gas supply outlet. The 1600 Series industrial flowmeters, in combination with one or more additional flowmeters of its type, can be used for proportioning a number of gases, making it ideal for a variety of industrial applications.

Note: This item has been discontinued. Please see 700 Series Industrial Flowmeters.

  • Dual range flowmeter enables precise gas metering
  • Articulating inlet connection permits installation flexibility
  • Body: Machined aluminum
  • Filter: 50-micron sintered bronze
  • Temperature range: -40°F to 140°F (-40°C to 60°C)
  • Compensation: 30 PSIG (2 BAR)
  • Flowmeter scale: Dual range (low/high)
  • Outlet valve: Brass
  • Seals: Buna-N®
◂ scroll to see more ▸
Part Number Description Low Flow Range / High Flow Range (Compensated @ 30 PSIG)
8051600-01-1 Dual Range Flowmeter for Helium Service with 5/8 in -18 (B) RH Ext Inlet Connection and 5/8 in -18 (B) RH Int Outlet Connection 0.5-37 SCFH / 30-200 SCFH
8051601-01-1 Dual Range Flowmeter for Argon Service with 5/8 in -18 (B) RH Ext Inlet Connection and 5/8 in -18 (B) RH Int Outlet Connection 1.0-24 SCFH / 22-198 SCFH
8051602-01-1 Dual Range Flowmeter for Oxygen Service with 9/16 in -18 (B) RH Int Inlet Connection and 9/16 in -18 (B) RH Ext Outlet Connection 0.1-4.5 SCFH / 3.5-20 SCFH
8051603-01-1 Dual Range Flowmeter for Nitrogen Service with 5/8 in -18 (B) RH Ext Inlet Connection and 5/8 in-18 (B) RH Int Outlet Connection 1.0-29 SCFH / 27-245 SCFH
8051604-01-1 Dual Range Flowmeter for Hydrogen Service with 9/16 in -18 (B) LH Int Inlet Connection and 9/16 in -18 (B) LH Ext Outlet Connection 2.0-52 SCFH / 40-300 SCFH
8051605-01-1 Dual Range Flowmeter for Carbon Dioxide Service with 5/8 in -18 (B) RH Ext Inlet Connection and 5/8 in -18 (B) RH Int Outlet Connection 1.0-24 SCFH / 23-150 SCFH
8051606-01-1 Dual Range Flowmeter for Argon Service with 5/8 in -18 (B) RH Ext Inlet Connection and 5/8 in -18 (B) RH Int Outlet Connection 3.0-23 SCFH / 32-192 SCFH
8051606-01-1 Dual Range Flowmeter for Helium Service with 5/8 in -18 (B) RH Ext Inlet Connection and 5/8 in -18 (B) RH Int Outlet Connection 2.5-70 SCFH / 65-525 SCFH
8051606-01-1 Dual Range Flowmeter for Nitrogen Service with 5/8 in -18 (B) RH Ext Inlet Connection and 5/8 in -18 (B) RH Int Outlet Connection 2.0-28 SCFH / 35-220 SCFH
8051606-01-1 Dual Range Flowmeter for Carbon Dioxide Service with 5/8 in -18 (B) RH Ext Inlet Connection and 5/8 in -18 (B) RH Int Outlet Connection 2.0-24 SCFH / 26-176 SCFH
8051606-01-1 Dual Range General Purpose Flowmeter for 75% Argon 25% Carbon Dioxide Welding Gas Mix with 5/8 in -18 (B) RH Ext Inlet Connection and 5/8 in -18 (B) RH Int Outlet Connection 1.5-37 SCFH / 45-290 SCFH
◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
1600 Series Dual-Range Flowmeters Installation and Operation
English
ADI1219
M
