3000 Series Cutting Torch

Ergonomic, heavy-duty torch for precision hand cutting

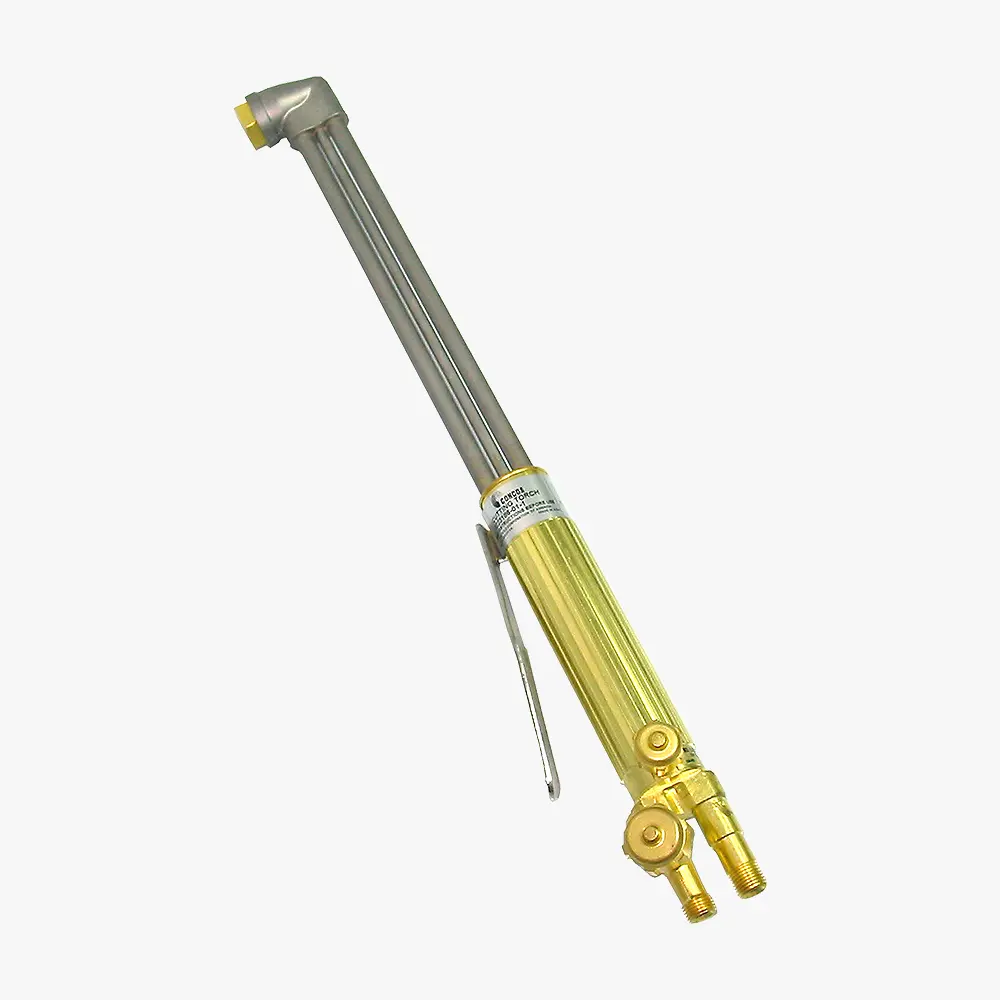

8223186-01-1 shown
CONCOA 3000 Series cutting torch

CONCOA 3000 Series cutting torch combines safe tip mix technology with a lightweight, gas-flow design, and high-powered, hand-cutting capacity. The three-tube design includes a separate tube for the fuel gas and the pre-heat oxygen, with a third tube for the cutting oxygen to provide a smooth, sufficient oxygen flow for optimal performance through the full cut profile, especially while cutting thicker material. Straight tube construction provides greater visibility of the cutting path and better arc control. Available with 75° and 90° head angle configurations, CONCOA 3000 Series hand-cutting torch offers maximum performance and is safe to use with multiple fuels and in multiple applications.

  • Corrosion-resistant, stainless steel inline tubes offer maximum performance while keeping gases separated to mix safely in the cutting tip
  • Corn Cob® style brass handle provides comfortable and secure, non-slip grip
  • Spring-loaded fuel valve lever ensures smooth torque control and anti-backlash for precise flame control
  • Tip mix system reduces the risk of flashback and backfire
  • Stainless steel torch heads offer better tip seating and longer life
  • Head: Stainless steel
  • Tubes: 304 Stainless steel
  • Handle: Extruded brass
  • Hose connections: 9/16 in -18 (B) LH
  • Torch length: 21 in (53 cm)
◂ scroll to see more ▸
Part NumberDescription
8223085-01-1Cutting Torch with 75° Angled Head and Locking Trigger; 2.4 lbs (1.1 kgs)
8223086-01-1Cutting Torch with 90° Angled Head and Locking Trigger; 2.4 lbs (1.1 kgs)
8223185-01-1Cutting Torch featuring 75° Angled Head and Ease-on Lever Control; 2.8 lbs (1.3 kgs)
8223186-01-1Cutting Torch featuring 90° Angled Head and Ease-on Lever Control; 2.8 lbs (1.3 kgs)
◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
3000 Series Cutting Torches Catalog Page
English
IN3000CT
M
Download
Hand Welding and Cutting Torches and Cutting Attachments Installation and Operation
English
ADI1647
K
Download
Safe Practices in Oxy-Fuel Welding and Cutting Brochure
English
ADE0872
AE
