Style 275 Cutting Tip

Two-piece, natural gas and propane cutting tip

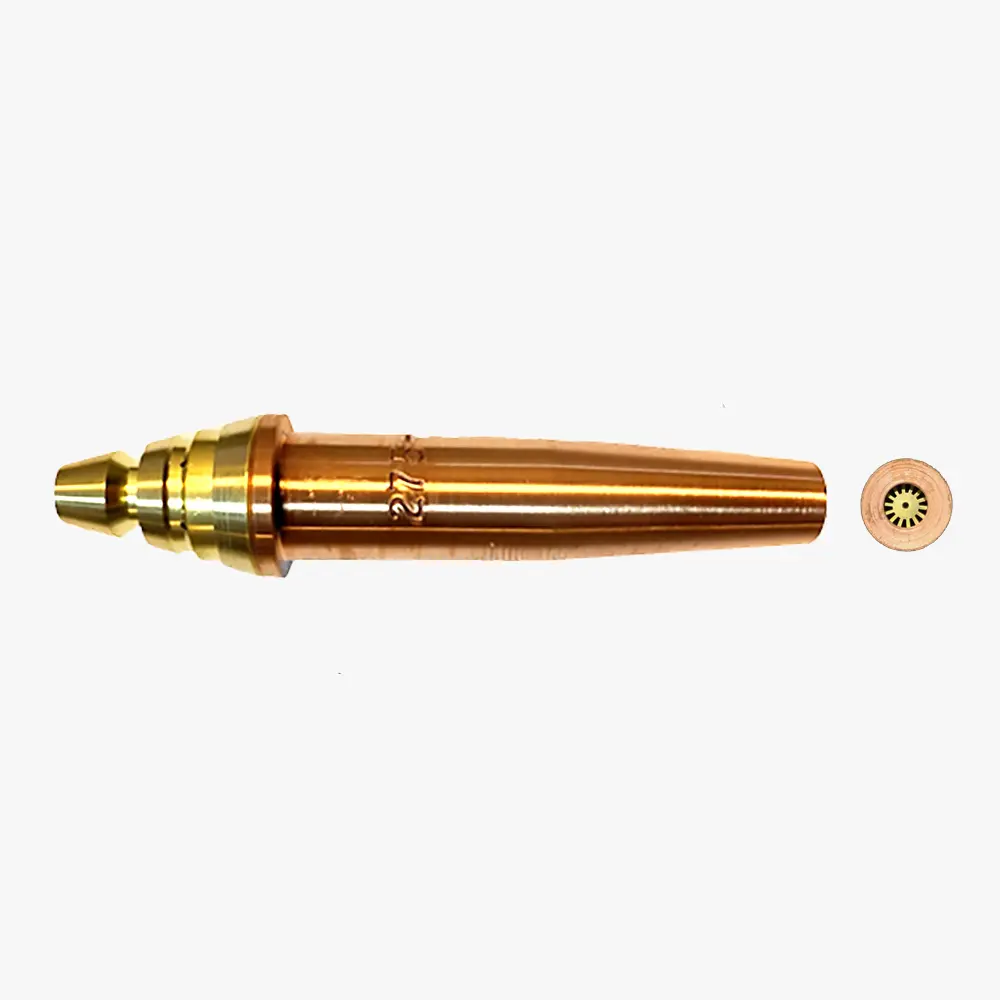

8132799-00-1 shown
CONCOA Style 275 two-piece cutting tip

CONCOA Style 275 two-piece cutting tip is suitable for hand cutting up to 14 inches (35.5 cm) with natural gas or propane. This precision-made tip features a Stinger® design which is a significantly better design than conventional cutting tips because it allows sharp, defined preheat flames for uniform heat transfer resulting in a perfect, oxygen-cutting stream for smooth face cuts every time. Sizes #00 through #5 feature a 22° “V" spline design that provides maximum heat transfer and flame stability. Sizes #6, #7, and #8 employ a 36° “V" spline design to provide increased gas flows and extra secondary flame length required on a thicker plate.

◂ scroll to see more ▸
Part Number Tip Size Drill Size Material Thickness Speed Oxygen Natural Gas Propane
8132799-00-1 #00 72 (.025 in) 3/16 in (0.5 cm) 20-24 IPM 25 PSIG/55 SCFH 2-4 PSIG/18 SCFH 2 PSIG/8 SCFH
8132750-00-1 #0 68 (.031 in) 1/4 in (0.6 cm) 20-24 IPM 35 PSIG/65 SCFH 2-4 PSIG/18 SCFH 2 PSIG/8 SCFH
8132750-00-1 #0 68 (.031 in) 3/8 in (1.0 cm) 19-23 IPM 40 PSIG/86 SCFH 3-5 PSIG/25 SCFH 3 PSIG/11 SCFH
8132751-00-1 #1 62 (.038 in) 1/2 in (1.3 cm) 19-23 IPM 45 PSIG/115 SCFH 3-5 PSIG/28 SCFH 3 PSIG/12 SCFH
8132752-00-1 #2 56 (.046 in) 1 in (2.5 cm) 14-19 IPM 55 PSIG/177 SCFH 3-5 PSIG/28 SCFH 3 PSIG/12 SCFH
8132753-00-1 #3 54 (.055 in) 1.5 in (3.8 cm) 12-16 IPM 55 PSIG/235 SCFH 4-7 PSIG/30 SCFH 4 PSIG/14 SCFH
8132754-00-1 #4 52 (.063 in) 2.5 in (6.4 cm) 9-13 IPM 55 PSIG/300 SCFH 4-7 PSIG/30 SCFH 4 PSIG/14 SCFH
8132755-00-1 #5 49 (.073 in) 3 in (7.6 cm) 8-11 IPM 50 PSIG/365 SCFH 5-8 PSIG/35 SCFH 5 PSIG/16 SCFH
8132756-00-1 #6 39 (.128 in) 6 in (15.2 cm) 5-8 IPM 60 PSIG/610 SCFH 5-8 PSIG/35 SCFH 5 PSIG/16 SCFH
8132756-00-1 #6 39 (.128 in) 8 in (20.3 cm) 4-6 IPM 65 PSIG/635 SCFH 5-8 PSIG/35 SCFH 5 PSIG/16 SCFH
8132757-00-1 #7 30 (.169 in) 10 in (25.4 cm) 3-5 IPM 65 PSIG/900 SCFH 5-8 PSIG/50 SCFH 6 PSIG/18 SCFH
8132757-00-1 #7 30 (.169 in) 12 in (30.5 cm) 3-5 IPM 70 PSIG/975 SCFH 5-8 PSIG/50 SCFH 6 PSIG/18 SCFH
8132758-00-1 #8 18 (.169 in) 14 in (35.6 cm) 2-4 IPM 70 PSIG/1290 SCFH 5-8 PSIG/50 SCFH 6 PSIG/18 SCFH
◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
Style 275 and Style 375 Cutting Tips Catalog Page
English
IN275T
M
Download
Safe Practices in Oxy-Fuel Welding and Cutting Brochure
English
ADE0872
AE
