Active
502 Series Tee Purge
Tee purge for high purity gas applications

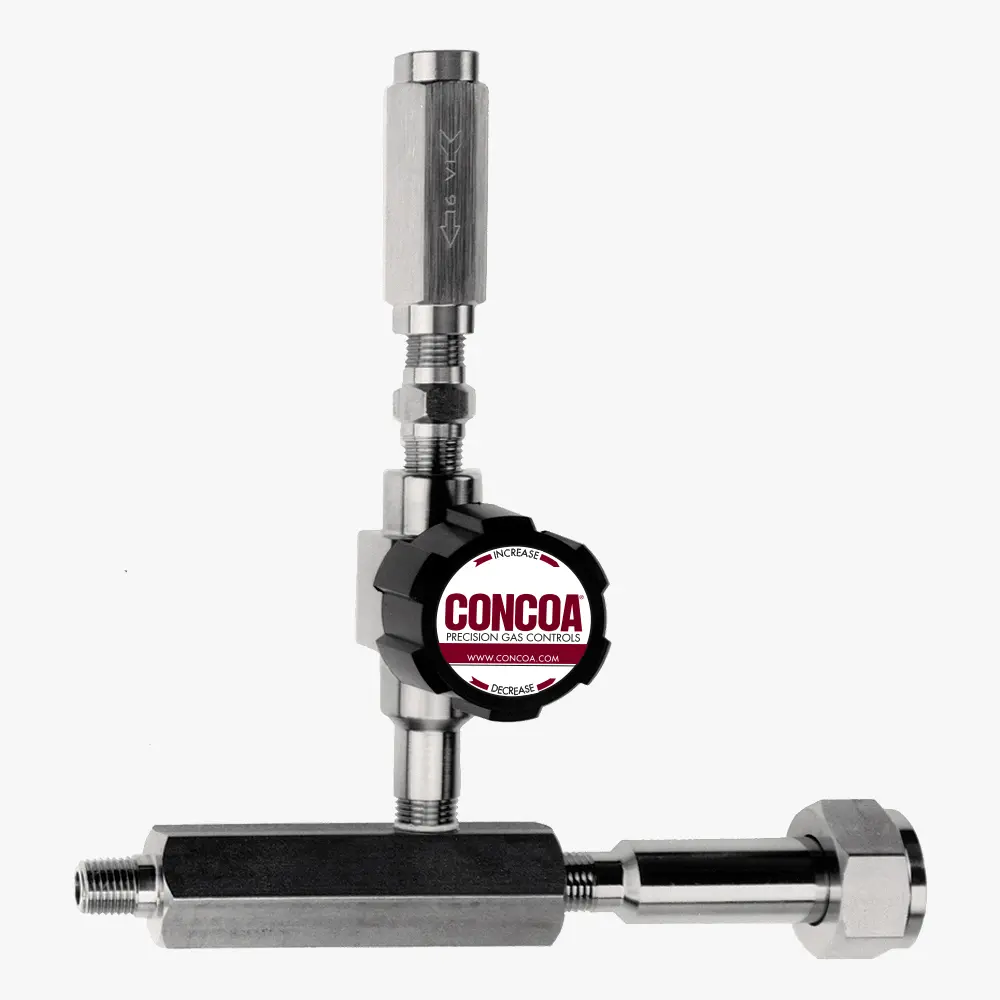

5022005-01-000 shown
The 502 Series Tee Purge is designed for use with high purity gases to ensure system integrity upon the breakdown of components or during gas source changes. The purge provides safety by preventing the release of toxic or corrosive gases into the workplace, corrosion resistance by preventing corrosive or halogen gases from coming into contact with atmospheric moisture, and purity by preventing air from infiltrating high purity systems. The CONCOA 502 Series tee purge is available in two configurations. An inboard purge allows inert gas to enter the system for displacement or cycle purging. An outboard purge permits a process gas or inert purge gas to safely exit the system. These two tee purge configurations can be used together in a "block-and-bleed" configuration to effectively purge any system.
- Integral check valve avoids internal contamination during cylinder change
- Optional inboard purge or outboard purge configurations permit system flexibility
- Metal-to-metal diaphragm seal prevents system contamination
