533 Series High Flow Diaphragm Valve
High flow diaphragm valve for high purity gas pipeline applications

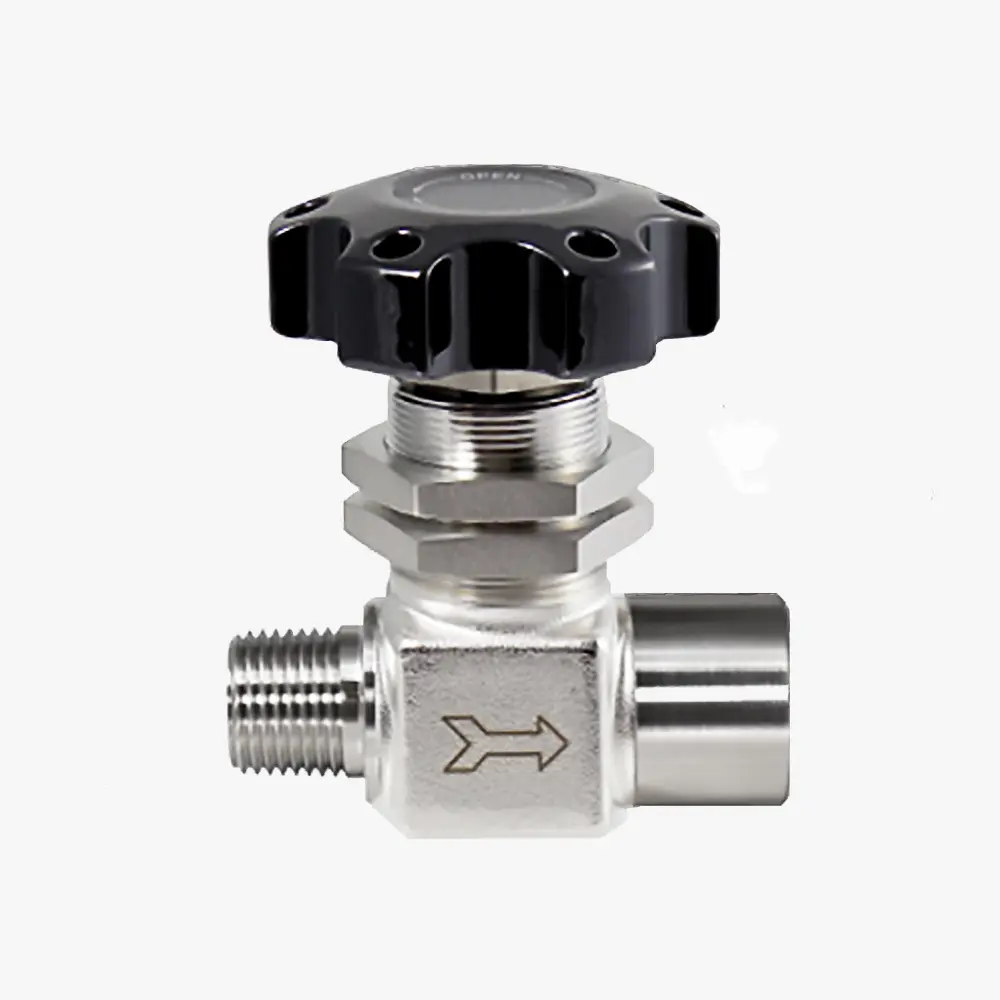

5338002-01-001 shown
The 533 Series High Flow Diaphragm Valve provides primary or pipeline control in high purity or corrosive gas services. This spring-type diaphragm valve provides positive shut-off, extended service life, and smooth operation in high flow and specialty gas systems with pressure ranges from vacuum to 3500 PSIG (240 BAR).
- Metal-to-metal diaphragm seal prevents gas contamination
- Soft seat material provides positive shut-off and eliminates any leakage
- Cleanroom assembly eliminates contamination at installation
- Body: Forged 316L stainless steel
- Seals: Metal-to-metal
- Seats: PCTFE
- Diaphragms: Elgiloy®
- Helium leak integrity: 2 x 10⁻⁸
- Conformances: Cleanliness meets or exceeds CGA G-4.1
◂ scroll to see more ▸
| Part Number | Description | Max Inlet Pressure | Max Differential Back Pressure |
|---|---|---|---|
| 8351332 | High Flow Indicating Valve featuring 1/2 in FNPT X 1/2 in FNPT Inlet/Outlet Connections with 1/4 in Gauge Ports and 1.2 Cv | 1000 PSIG (70 BAR) | 200 PSIG (14 BAR) |
| 5338002-01-001 | High Flow Diaphragm Valve featuring 1/2 in MNPT X 1/2 in FNPT Inlet/Outlet Connections and 0.30 Cv | 3500 PSIG (240 BAR) | 3500 PSIG (240 BAR) |
| 5338008-01-001 | High Flow Diaphragm Valve featuring 1/2 in FNPT X 1/2 in FNPT Inlet/Outlet Connections and 0.30 Cv | 3500 PSIG (240 BAR) | 3500 PSIG (240 BAR) |
| 5338018-01-001 | High Flow Diaphragm Valve featuring and 1/2 in M Face Seal X 1/2 in M Face Seal Inlet/Outlet Connections and 1.0 Cv | 500 PSIG (35 BAR) | 200 PSIG (14 BAR) |
| 5338028-01-001 | High Flow Diaphragm Valve featuring 1/2 in F Face Seal X 1/2 in F Face Seal Inlet/Outlet Connections and 1.0 Cv | 500 PSIG (35 BAR) | 200 PSIG (14 BAR) |
| 5338041-01-001 | High Flow Diaphragm Valve featuring 1/2 in Compression Tube X 1/2 in Compression Tube Inlet/Outlet Connections and 0.30 Cv | 3500 PSIG (240 BAR) | 3500 PSIG (240 BAR) |
| 5338042-01-001 | High Flow Diaphragm Valve featuring 1/2 in Compression Tube X 1/2 in Compression Tube Inlet/Outlet Connections, and 0.30 Cv | 3500 PSIG (240 BAR) | 3500 PSIG (240 BAR) |
| 5338043-01-001 | High Flow Diaphragm Valve featuring 1/2 in MNPT X 1/2 in Compression Tube Inlet/Outlet Connections and 0.30 Cv | 3500 PSIG (240 BAR) | 3500 PSIG (240 BAR) |
| 5338045-01-001 | High Flow Diaphragm Valve featuring 1/2 in Tube Stub X 1/2 in Compression Tube Inlet/Outlet Connections and 0.30 Cv | 3500 PSIG (240 BAR) | 3500 PSIG (240 BAR) |
| 5338046-01-001 | High Flow Diaphragm Valve featuring 1/2 in Tube Stub X 1/2 in Compression Tube Stub Inlet/Outlet Connections and 0.30 Cv | 3500 PSIG (240 BAR) | 3500 PSIG (240 BAR) |
| 5338047-01-001 | High Flow Diaphragm Valve featuring 1/2 in MNPT X 1/2 in Compression Tube Fitting Inlet/Outlet Connections and 0.30 Cv | 3500 PSIG (240 BAR) | 3500 PSIG (240 BAR) |
| 5338050-01-001 | High Flow Diaphragm Valve featuring 1/2 in Compression Tube X 1/2 in Tube Stub Inlet/Outlet Connections and 0.30 Cv | 3500 PSIG (240 BAR) | 3500 PSIG (240 BAR) |
| 5338051-01-001 | High Flow Diaphragm Valve featuring 1/2 in Compression Tube X 1/2 in Tube Stub Inlet/Outlet Connections and 0.30 Cv | 3500 PSIG (240 BAR) | 3500 PSIG (240 BAR) |
| 5338052-01-001 | High Flow Diaphragm Valve featuring 1/2 in Tube Stub X 1/2 in FNPT Inlet/Outlet Connections and 0.30 Cv | 3500 PSIG (240 BAR) | 3500 PSIG (240 BAR) |
| 5338053-01-001 | High Flow Diaphragm Valve featuring 1/2 in FNPT X 1/2 in Tube Stub Inlet/Outlet Connections and 0.30 Cv | 3500 PSIG (240 BAR) | 3500 PSIG (240 BAR) |
| 5338054-01-001 | High Flow Diaphragm Valve featuring 1/2 in Tube Stub X 1/2 in FNPT Inlet/Outlet Connections and 0.30 Cv | 3500 PSIG (240 BAR) | 3500 PSIG (240 BAR) |
| 5338055-01-001 | High Flow Diaphragm Valve featuring 1/2 in FNPT X 1/2 in Tube Stub Inlet/Outlet Connections and 0.30 Cv | 3500 PSIG (240 BAR) | 3500 PSIG (240 BAR) |
