529 Series Protocol Switchover Station
Manual switchover system for high purity gas applications

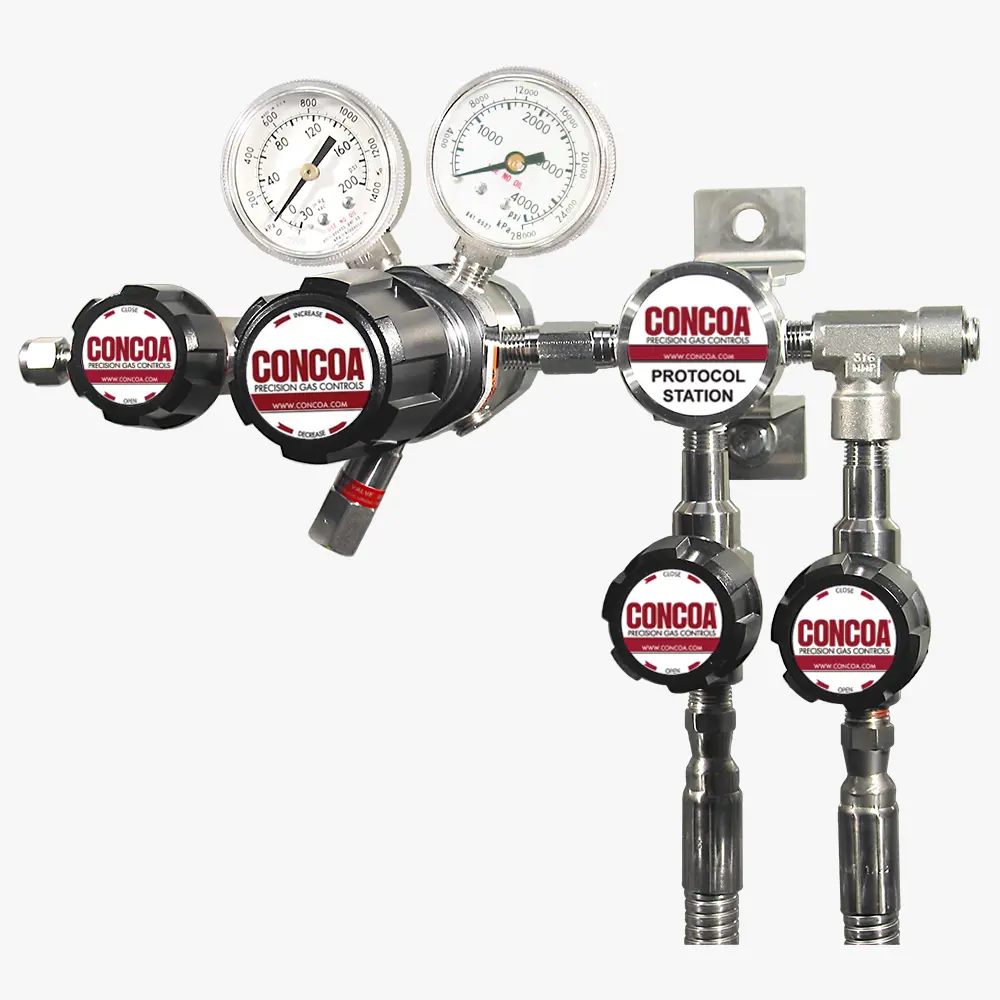

5290156-01-580 shown with regulator
The 529 Series Protocol Switchover Station combines all of the safety and convenience features of a standard protocol station with the added efficiency of having a reserve cylinder connected to the system. The protocol switchover station valving allows manual switching and isolation of the depleted cylinder for safe change out. The system comes complete with a protocol station, two 3 ft (900 mm) all stainless steel hoses with armor casing, and a diaphragm valve (for systems up to 3000 PSIG) or needle valve (for systems over 3000 PSIG). CONCOA Protocol Switchover Stations are available in brass, chrome-plated brass, 316L stainless steel, or Silicon CVD coated stainless steel, and may be used with many CONCOA single or dual stage regulators. To order the CONCOA 529 Series Protocol Switchover Station with regulator installed at the factory, add the letter "C" after any regulator part number (e.g. To order a 4327831-01-680 regulator with a factory-installed protocol switchover station, the part number would be 4327831-01-680C).
- Plugged port in gas block facilitates purging
- Stainless bracket allows flexible mounting options
- Integral check valve (in optional hose) inlet gland eliminates internal contamination during cylinder change
