551 Series Ultra-Flexible Vacuum-Jacketed Hose

Ultra-Flexible Vacuum-jacketed hose for cryogenic liquid supply

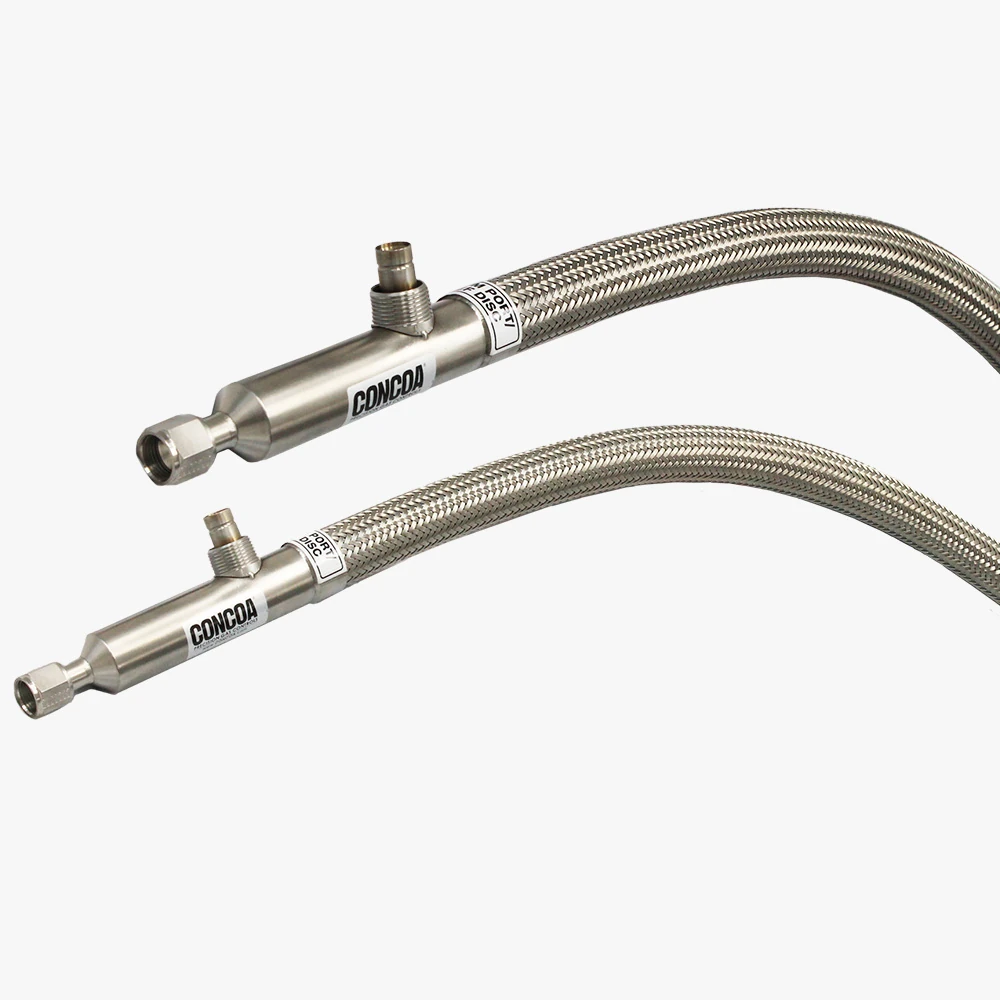

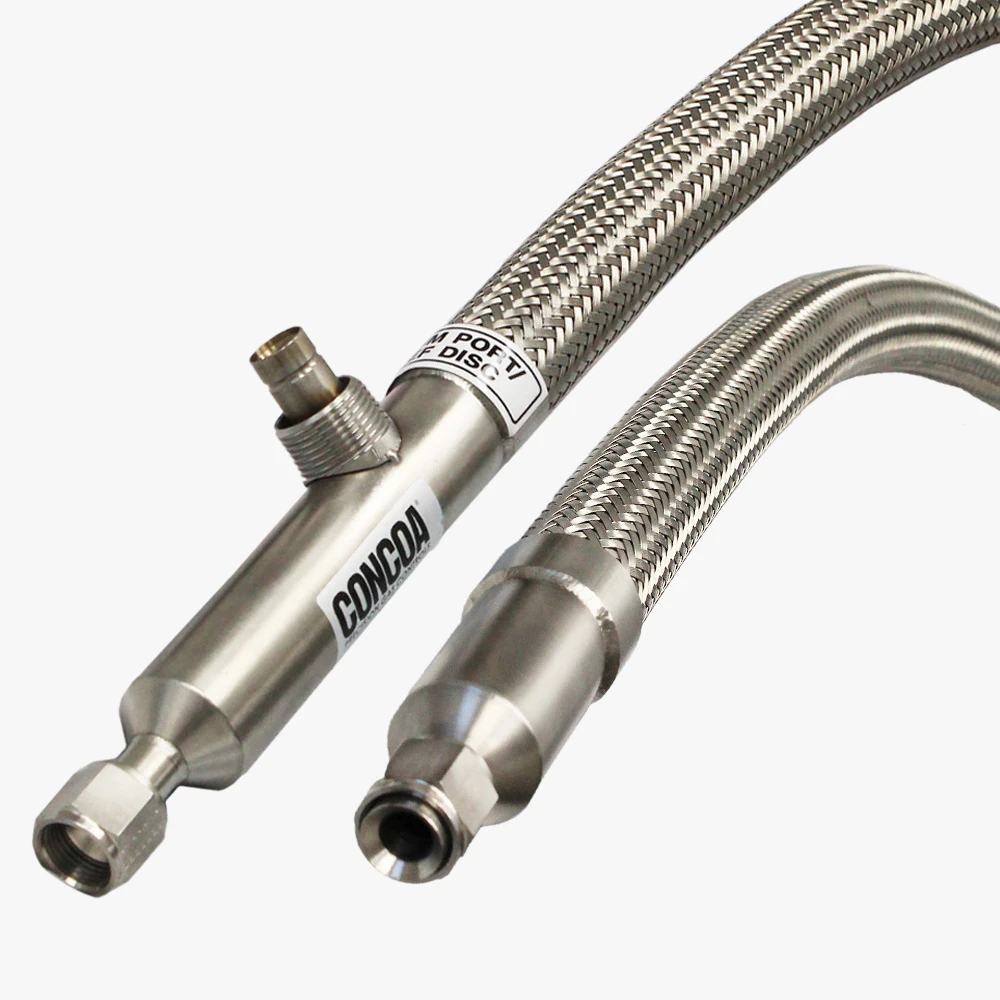

5512200-01-036 shown
Ultra-Flexible Vacuum-jacketed hose for cryogenic liquid supply

The 551 Series Ultra-Flexible Vacuum-Jacketed transfer hose is engineered for optimal performance and ease of handling in cryogenic laboratory applications. Featuring a 3/8-inch unbraided inner core for smooth cryogen flow and a 1.4-inch O.D. braided outer jacket for enhanced flexibility and durability, this hose is ideal for connecting the CryoWiz™ cryogenic switchover system to application distribution points. Its compact, lightweight design allows for tight bends and simplified routing, making it the perfect transfer line for point-of-use connections requiring both reliability and maneuverability.







  • Bayonets, pipe threads, compression and custom end fittings provide flexibility and compatibility across a wide range of systems and applications
  • Lengths from 3 ft to 30 ft provide the flexibility to accommodate a wide variety of laboratory installation requirements
  • Combination of vacuum-jacket and insulation reduce evaporation to eliminate frost and condensation during transfers
  • Vacuum pump-out port ensures continued serviceability
  • Swivel end connectors maintain leak-tight seals
  • Max working pressure: 160 PSIG (11 BAR)
  • Inner core: 3/8 in unbraided 316L stainless steel
  • Outer jacket: 1.4 in OD, braided stainless steel
  • Connections: CGA 295 female flare (both ends)
  • Helium leak integrity: 1x10⁻⁹ scc/sec
  • Minimum static bend radius: 5 in
  • Pump out port: SV-9
◂ scroll to see more ▸
Part NumberDescription
5512200-01-0363 ft (0.9 m) Ultra-flexible, Vacuum-Jacketed Cryogenic Hose
5512200-01-0484 ft (1.2 m) Ultra-flexible, Vacuum-Jacketed Cryogenic Hose
5512200-01-0605 ft (1.5 m) Ultra-flexible, Vacuum-Jacketed Cryogenic Hose
5512200-01-0726 ft (1.8 m) Ultra-flexible, Vacuum-Jacketed, Cryogenic Hose
5512200-01-0968 ft (2.4 m) Ultra-flexible, Vacuum-Jacketed, Cryogenic Hose
5512200-01-120 10 ft (3.0 m) Ultra-flexible, Vacuum-Jacketed Cryogenic Hose
5512200-01-14412 ft (3.7 m) Ultra-flexible, Vacuum-Jacketed Cryogenic Hose
5512200-01-18015 ft (4.5 m) Ultra-flexible, Vacuum-Jacketed Cryogenic Hose
5512200-01-24020 ft (6.1 m) Ultra-flexible, Vacuum-Jacketed Cryogenic Hose
5512200-01-30025 ft (8 m) Ultra-flexible, Vacuum-Jacketed Cryogenic Hose
5512200-01-36030 ft (9.1 m) Ultra-flexible, Vacuum-Jacketed Cryogenic Hose
◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
551 Series Vacuum-jacketed Hoses Catalog Page
English
RS551H
H
Download
CONCOA Life Sciences Brochure
English
SPF1010
B
