625 Series Laser Gas Station

Single station manifold for carbon dioxide laser resonator gases

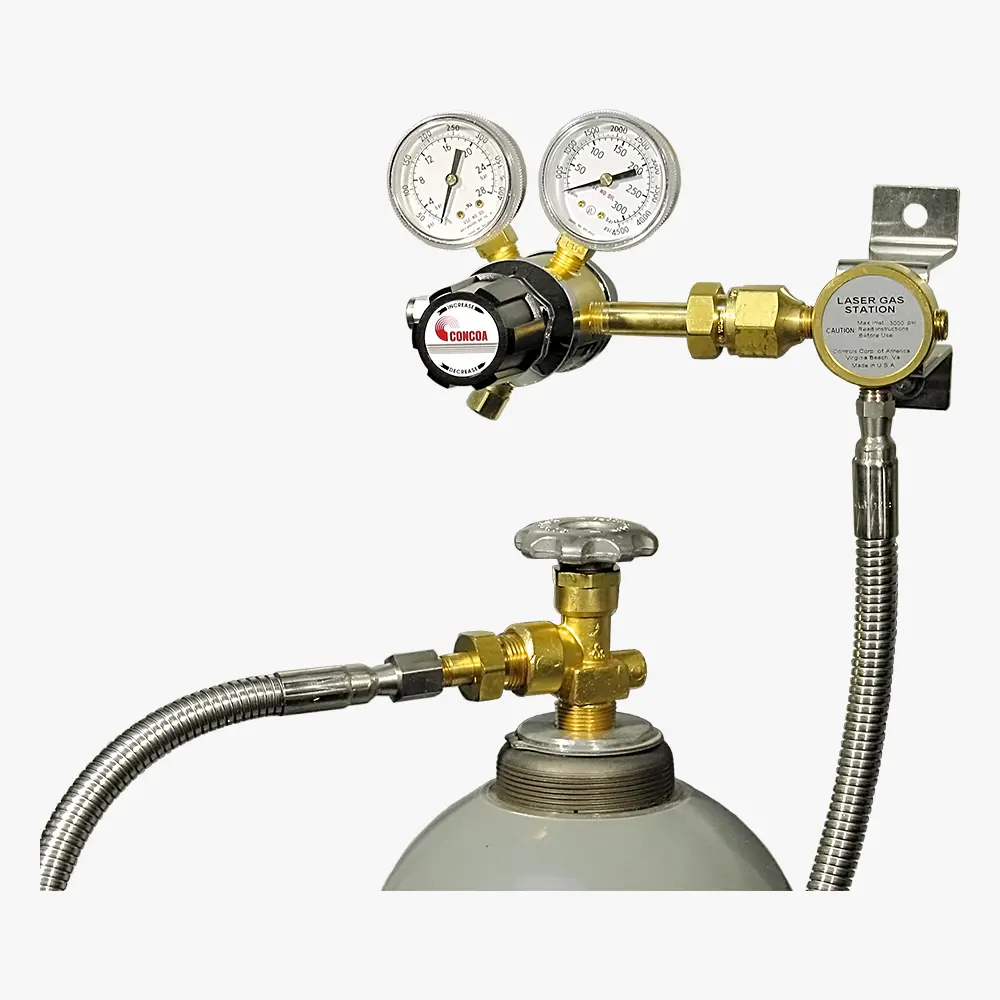

6255265-01-1 shown

The 625 Series Laser Gas Stations are designed to mount to any CONCOA laser gas regulators. Wall mounting a regulator provides ease of use and convenience, prevents regulator damage, and improves safety. CONCOA 625 Series Laser Gas Stations are available in brass barstock construction and come complete with mounting brackets and either 36-inch (915 mm) or 72-inch (1830 mm) flexible hose with armor casing.

Features

Plugged port in the gas block allows purging or dual cylinder use
Integrated check valve at inlet prevents contamination during cylinder changes
Convenient wall mount bracket for regulator facilitates safe installation

Specifications

Max inlet pressure: 3000 PSIG (210 BAR); 4500 PSIG (310 BAR) optional
Gas block: Brass barstock
Hose core 316L stainless steel; Monel®
Hose casing: 316L stainless steel braid (2 layers) and armor-cased 304 stainless steel
Inlet connection: Brass barstock
Check valve: FKM or EPDM
Temperature range: -40°F to 140°F (-40°C to 60°C)
Weight: 8.3 lbs (2.76 kg)
Conformances: Cleanliness meets or exceeds CGA G-4.1; ANSI/ASME B40.1; PED 2014/68/EU; CRN OH5216.5

Ordering Information

◂ scroll to see more ▸

Part Number	Description	Hose Length
6255231-01-1	Laser Gas Station for Carbon Dioxide featuring 5260 Series Liquid Cylinder Single Stage Regulator with 320 Cylinder Connection	36 in (915 mm)
6255231-01-72	Laser Gas Station for Carbon Dioxide featuring 5260 Series Liquid Cylinder Single Stage Regulator with 320 Cylinder Connection	72 in (1830 mm)
6255235-01-1	Laser Gas Station for Carbon Dioxide featuring 5260 Series Liquid Cylinder Single Stage Regulator with 580 Cylinder Connection	36 in (915 mm)
6255235-01-72	Laser Gas Station for Carbon Dioxide featuring 5260 Series Liquid Cylinder Single Stage Regulator with 580 Cylinder Connection	72 in (1830 mm)
6255236-01-1	Laser Gas Station for Carbon Dioxide featuring 5260 Series Liquid Cylinder Single Stage Regulator with 540 Cylinder Connection	36 in (915 mm)
6255236-01-72	Laser Gas Station for Carbon Dioxide featuring 5260 Series Liquid Cylinder Single Stage Regulator with 540 Cylinder Connection	72 in (1830 mm)
6255261-01-1	Laser Gas Station for Carbon Dioxide featuring 5260 Series Liquid Cylinder Single Stage Regulator with 320 Cylinder Connection	36 in (915 mm)
6255261-01-72	Laser Gas Station for Carbon Dioxide featuring 5260 Series Liquid Cylinder Single Stage Regulator with 320 Cylinder Connection	72 in (1830 mm)
6255265-01-1	Laser Gas Station for Nitrogen, Argon, Helium featuring 5260 Series Liquid Cylinder Single Stage Regulator with 580 Cylinder Connection	36 in (915 mm)
6255265-01-72	Laser Gas Station Nitrogen, Argon, Helium featuring 5260 Series Liquid Cylinder Single Stage Regulator with 580 Cylinder Connection	72 in (1830 mm)
6255266-01-1	Laser Gas Station for Oxygen featuring 5260 Series Liquid Cylinder Single Stage Regulator with 540 Cylinder Connection	36 in (915 mm)
6255266-01-72	Laser Gas Station for Oxygen featuring 5260 Series Liquid Cylinder Single Stage Regulator with 540 Cylinder Connection	72 in (1830 mm)
6255267-01-1	Laser Gas Station for Oxygen featuring 5260 Series Liquid Cylinder Single Stage Regulator with 540 Cylinder Connection	36 in (915 mm)
6255267-01-72	Laser Gas Station for Oxygen featuring 5260 Series Liquid Cylinder Single Stage Regulator with 540 Cylinder Connection	72 in (1830 mm)
6255275-01-1	Laser Gas Station for Argon/Helium featuring 5270 Series Single Stage Regulator and One Dual-Scale Flowmeter with 580 Cylinder Connection	36 in (915 mm)
6255275-01-72	Laser Gas Station for Argon/Helium featuring 5270 Series Single Stage Regulator with One Dual-Scale Flowmeter with 580 Cylinder Connection	72 in (1830 mm)
6255278-01-1	Laser Gas Station for Argon/Helium featuring 5270 Series Single Stage Regulator and One Dual-Scale Flowmeter with 680 Cylinder Connection	36 in (915 mm)
6255278-01-72	Laser Gas Station for Argon/Helium featuring 5270 Series Single Stage Regulator and Two Dual-Scale Flowmeters with 680 Cylinder Connection	72 in (1830 mm)
6255279-01-1	Laser Gas Station for Argon/Helium featuring 5270 Series Single Stage Regulator and Two Dual-Scale Flowmeters with 580 Cylinder Connection	36 in (915 mm)
6255279-01-72	Laser Gas Station for Argon/Helium featuring 5270 Series Single Stage Regulator and Two Dual-Scale Flowmeters with 580 Cylinder Connection	72 in (1830 mm)
8307334-01-1	Laser Gas Station with 540 Cylinder Connection (regulator sold separately)	36 in (915 mm)
8307335-01-1	Laser Gas Station with 580 Cylinder Connection (regulator sold separately)	36 in (915 mm)
8307336-01-1	Laser Gas Station with 320 Cylinder Connection (regulator sold separately)	36 in (915 mm)
8307340-01-1	Laser Gas Station with 350 Cylinder Connection (regulator sold separately)	36 in (915 mm)
8307342-01-1	Laser Gas Station with 590 Cylinder Connection (regulator sold separately)	36 in (915 mm)
8307706-01-1	Laser Gas Station with 540 Cylinder Connection (regulator sold separately)	72 in (1830 mm)
8307707-01-1	Laser Gas Station with 580 Cylinder Connection (regulator sold separately)	72 in (1830 mm)
8307708-01-1	Laser Gas Station with 320 Cylinder Connection (regulator sold separately)	72 in (1830 mm)
8307709-01-1	Laser Gas Station with 350 Cylinder Connection (regulator sold separately)	72 in (1830 mm)
8307710-01-1	Laser Gas Station with 590 Cylinder Connection (regulator sold separately)	72 in (1830 mm)
