6530 Series Liquid Cylinder Flowmeter Regulator

Single stage, liquid cylinder flowmeter regulator for medium heavy-duty welding and blanketing applications

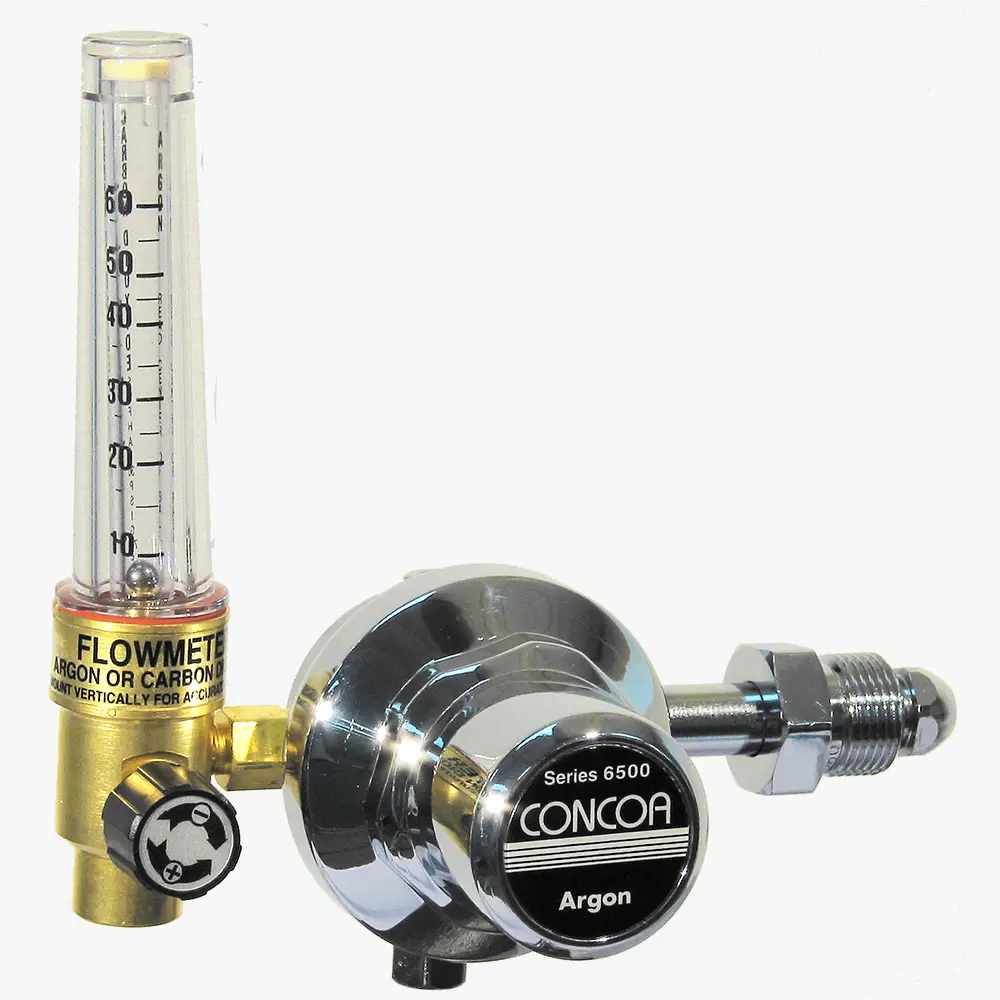

8066537-01-1 shown
Single stage liquid cylinder flowmeter regulator for medium heavy-duty welding and blanketing applications

The 6530 Series liquid cylinder flowmeter regulator provides primary control of industrial gas cylinders in applications requiring outlet pressures up to 200 SCFH. Rugged forged brass construction provides high durability, while the encapsulated seat design maintains accurate pressure control and extended component lifecycle. The CONCOA 6530 Series liquid cylinder flowmeter regulator is available in preset or adjustable models and is compatible with a wide range of gases. CONCOA offers an optional gas-saver model, which keeps a constant level of gas pressure in the downstream system during the welding process.

Gas Saver wizard
  • CAPSULE® Seat assembly provides increased life and serviceability
  • Dual-scale flow tube enables process flexibility
  • 3000 PSIG safe flowmeter regulator permits use on high pressure backup cylinders
  • Optional gas-saver model optimizes weld quality and gas consumption
  • Max inlet pressure: 3000 PSIG (210 BAR)
  • Body: Chrome-plated forged brass
  • Bonnet: Chrome-plated, die-cast zinc
  • Seat: PTFE
  • Filter: 25-micron sintered bronze
  • Temperature range: -40°F to 140°F (-40°C to 60°C)
  • Diaphragm: 316L stainless steel
  • Inlet connections: CGA 580
  • Outlet connections: 5/8 in -18 (B) RH Int
  • Conformances: Cleanliness meets or exceeds CGA G-4.1; CRN OH5216.5R2
◂ scroll to see more ▸
Part Number Description Gas Service Flowmeter
8066534-01-1 Gas-saver, 30 PSIG (2 BAR) Preset Delivery Pressure,
Liquid Cylinder Dual-flowmeter Regulator 		Argon, Carbon Dioxide Two 10-60 SCFH Argon/
10-55 SCFH Carbon Dioxide Flowmeters
8066537-01-1 30 PSIG (2 BAR) Preset Delivery Pressure,
Liquid Cylinder Flowmeter Regulator 		Argon, Carbon Dioxide 10-60 SCFH Argon/
10-55 SCFH Carbon Dioxide Flowmeter
8066538-01-1 Gas-saver, Liquid Cylinder Flowmeter Regulator Argon, Helium 10-60 SCFH Argon/
30-200 SCFH Helium Flowmeter
◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
6530 Series Liquid Cylinder Regulators Catalog Page
English
IN6530LCR
M
Download
Regulators Installation and Operation Instructions
English
ADI1608
L
Download
CONCOA Gas-Saver Brochure
English
SPF200
A
Download
CRN File OH5216
English
CRNOH5216
26
