9000 Series Cutting Torch

Heavy-duty cutting torch with inline tubes and stainless steel heads

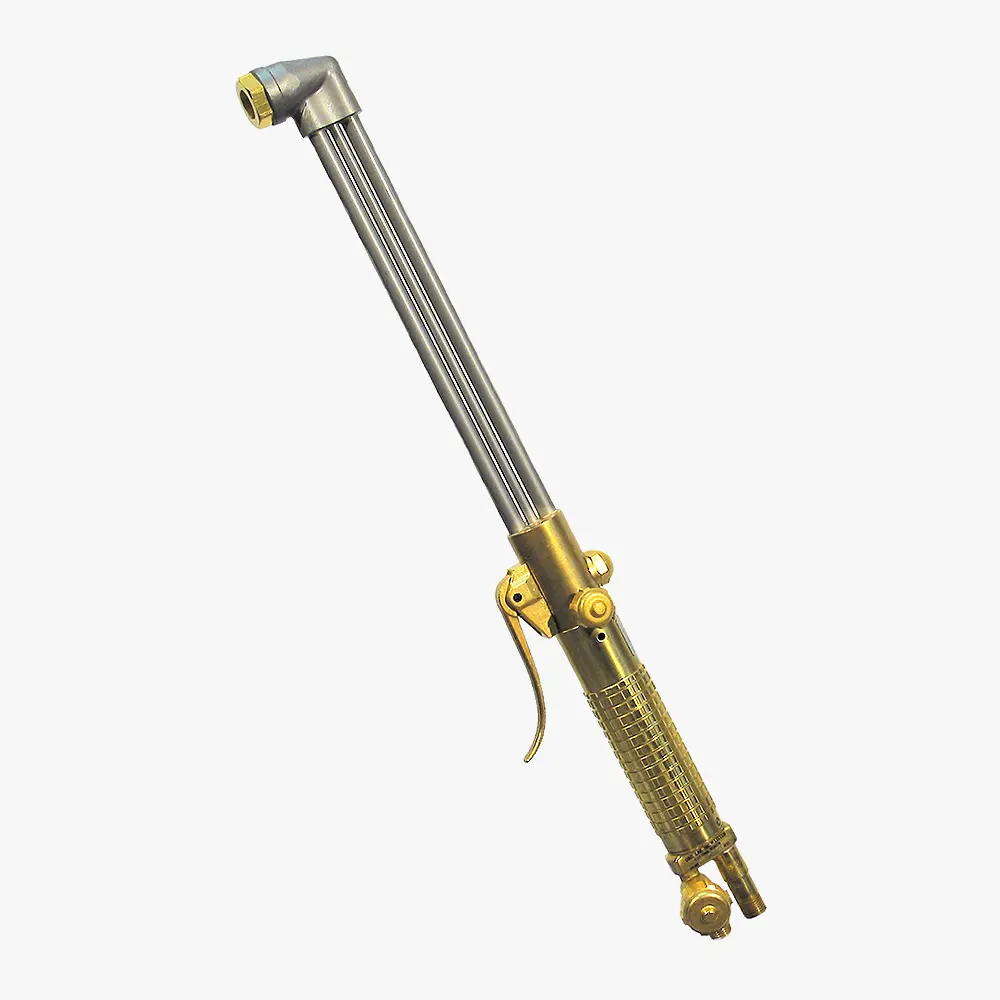

8229086-01-1 shown
9000 Series cutting torch

CONCOA 9000 Series cutting torch features stainless steel heads and three straight, corrosion-resistant stainless steel inline tubes. The straight, three-tube design consists of a separate tube for the fuel gas and the pre-heat oxygen, with a third tube for the cutting oxygen. This provides a smooth, sufficient oxygen flow for optimal performance through the full-cut profile, especially while cutting thicker material. Straight tube construction provides greater visibility of the cutting path and better arc control. This torch is available in 75° and 90° head angles to handle the most common jobs from cutting in corners to gouging applications. The 9000 Series cutting torch provides maximum strength with less maintenance and is ideal for rugged industrial environments.

  • Stainless steel inline tubes offer maximum performance while keeping gases separated to mix safely in the cutting tip
  • Spring-loaded fuel valve permits smooth torque control and anti-backlash for precise flame control
  • Tip mix system reduces risk of flashback and backfire for greater safety
  • Corn Cob® style brass handle provides comfortable and secure, non-slip grip
  • User-friendly cutting oxygen lever increases efficiency and accuracy
  • Head: Stainless steel
  • Tubes: 304 Stainless steel
  • Handle: Extruded brass
  • Hose connection: 3/8 in -19 (B) LH
  • Torch length: 20 in (51 cm)
  • Weight: 3.1 lbs (1.4 kgs)
◂ scroll to see more ▸
Part NumberDescription
8229085-01-1Cutting Torch with 75° Angled Head
8229086-01-1Cutting Torch with 90° Angled Head
◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
9000 Series Cutting Torch Catalog Page
English
IN9000CT
M
Download
Hand Welding and Cutting Torches and Cutting Attachments Installation and Operation
English
ADI1647
K
Download
Safe Practices in Oxy-Fuel Welding and Cutting Brochure
English
ADE0872
AE
