Style 124 Cutting Tip

One-piece, light preheat acetylene cutting tip

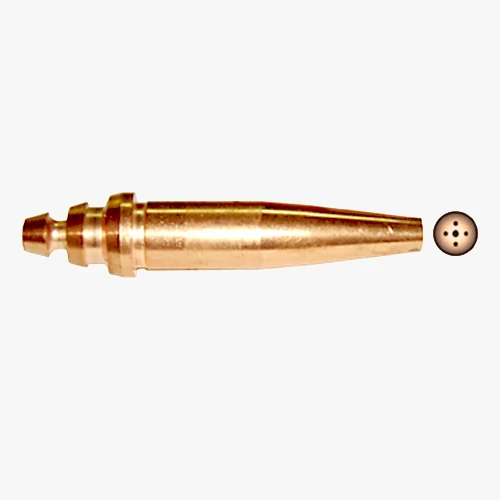

8542401-01-1 shown

Style 124 one-piece cutting tip is designed for straight line and shape cutting applications of clean plate surfaces. The tip has four preheat flames and can be used to cut material up to 2 inches (5.1 cm) in thickness with acetylene at speeds of 7 to 20 inches per minute (IPM) based on tip size and material thickness. For material over 2 inches (5.1 cm) in thickness, use style 164 cutting tip.

Note: Style 124 one-piece cutting tips are no longer available. Please see Style 164 one-piece cutting tip and refer to the Ordering Information matrix for comparable tip sizes and specifications.

Ordering Information

◂ scroll to see more ▸

Part Number	Tip Size	Drill Size	Material Thickness	Speed	Oxygen	Fuel
8542499-01-1	#00	69 (.029 in)	1/8 in (.3 cm)	18-20 IPM	30 PSIG/32 SCFH	3 PSIG/6 SCFH
8542400-01-1	#0	64 (.036 in)	1/4 in (6 cm)	16-18 IPM	30 PSIG/51 SCFH	3 PSIG/9 SCFH
8542401-01-1	#1	57 (.043 in)	3/8 in (0.95 cm)	15-17 IPM	30 PSIG/73 SCFH	3 PSIG/12 SCFH
8542402-01-1	#2	55 (.052 in)	3/4 in (1.9 cm)	11-13 1/2 IPM	40 PSIG/113 SCFH	3 PSIG/14 SCFH
8542403-01-1	#3	53 (.059 in)	1 1/4 in (3.2 cm)	10-12 IPM	40 PSIG/166 SCFH	3 PSIG/16 SCFH
8542403-01-1	#3	53 (.059 in)	1 1/2 in (3.8 cm)	9-11 IPM	45 PSIG/180 SCFH	3 PSIG/16 SCFH
8542403-01-1	#3	53 (.059 in)	2 in (5.1 cm)	7-9 IPM	50 PSIG/195 SCFH	3 PSIG/16 SCFH

Product Documents

◂ scroll to see more ▸

Document

Language

ID Number

Revision

Download

Safe Practices in Oxy-Fuel Welding and Cutting Brochure

English

ADE0872
