Style 138 Cutting Tip

One-piece, light preheat acetylene cutting tip

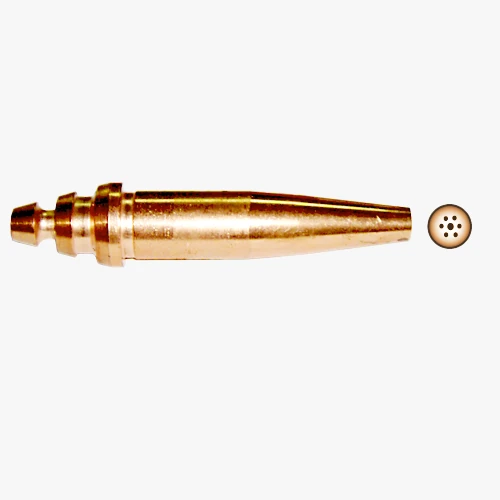

8543801-01-1 shown

Style 138 one-piece cutting tip is designed for fine contour cutting with hand cutting torches and is recommended for machine cutting applications. This light preheat tip has six preheat flames and can be used to cut material up to 2 1/2 inches (6.4 cm) in thickness with acetylene at speeds of 8 to 24 inches per minute (IPM) based on tip size and material thickness. For material over 2 1/2 inches (6.4 cm) in thickness, use style 164 cutting tip.

Note: Style 138 one-piece cutting tips are no longer available. Please see Style 164 one-piece cutting tips and refer to the Ordering Information matrix for comparable tip sizes and specifications.

Ordering Information

◂ scroll to see more ▸

Part Number	Tip Size	Drill Size	Material Thickness	Speed	Oxygen	Fuel
8543899-01-1	#00	69 (.029 in)	1/8 in (.3 cm)	21-24 IPM	30 PSIG/30 SCFH	1 1/2 PSIG/11 SCFH
8543800-01-1	#0	64 (.036 in)	1/4 in (6 cm)	18-22 IPM	30 PSIG/54 SCFH	3 PSIG/11 SCFH
8543801-01-1	#1	57 (.043 in)	3/8 in (0.95 cm)	18-21 IPM	30 PSIG/76 SCFH	3 PSIG/13 SCFH
8543802-01-1	#2	55 (.052 in)	3/4 in (1.9 cm)	14-16 IPM	40 PSIG/127 SCFH	3 PSIG/15 SCFH
8543803-01-1	#3	53 (.059 in)	1 1/4 in (3.2 cm)	11-14 IPM	45 PSIG/183 SCFH	3 PSIG/16 SCFH
8543804-01-1	#4	50 (.070 in)	1 1/2 in (3.8 cm)	8-10 IPM	50 PSIG/257 SCFH	3 PSIG/20 SCFH
