529 Series Protocol Alarm Station
Single station manifold with remote pressure alarm for high purity gas applications

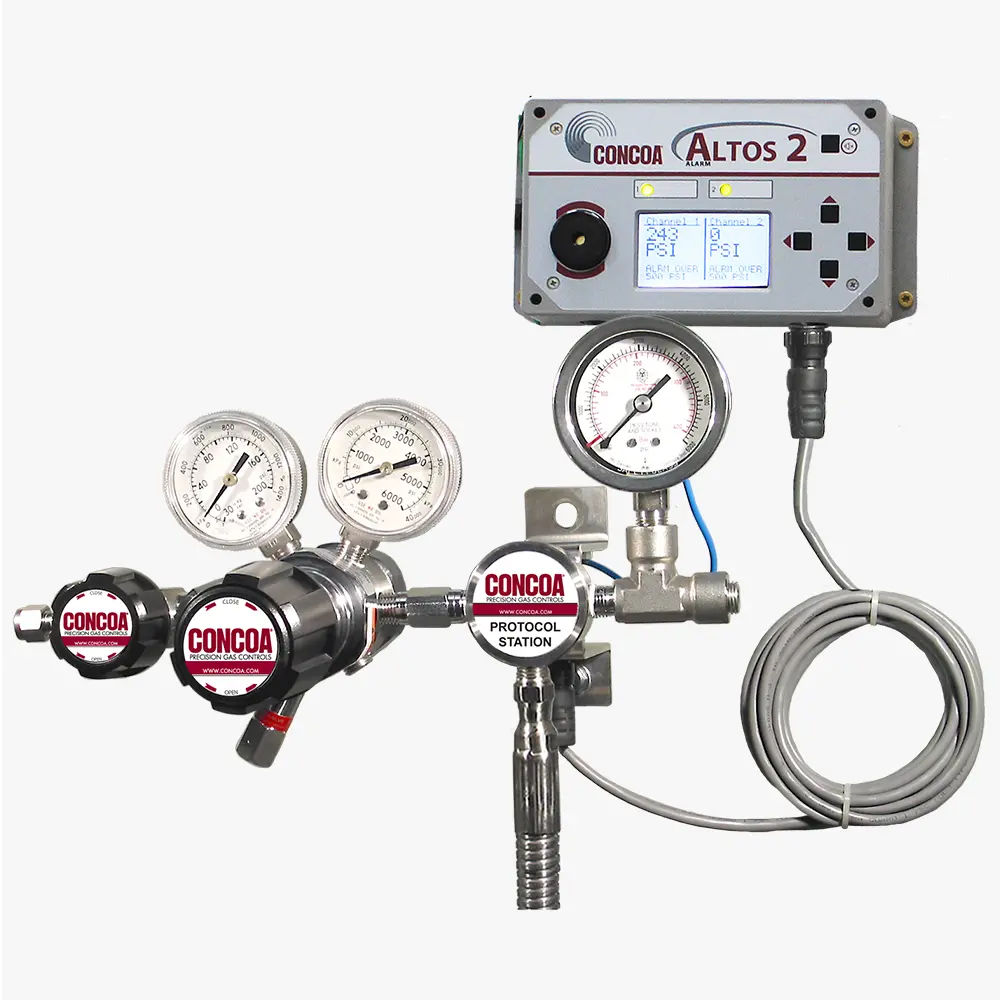

5291123-01-680 shown with regulator
The 529 Series Protocol Alarm Station provides remote annunciation when the source nears depletion. Equipped with a pressure switch gauge that can be set in the field to the desired alarm point and an Altos 2™ System Monitor, the system notifies a remote location of the need to replace a cylinder. The protocol alarm station is available in brass, chrome-plated brass, 316L stainless steel, or Silicon CVD coated 316L stainless steel, and may be used with many CONCOA single or dual stage regulators. To order the CONCOA Protocol Alarm Station with regulator installed at the factory, add the letter "B" after any regulator part number. (For example, to order the 4221332-01-510 regulator with a factory-installed protocol alarm station, the part number would be 4221332-01-510B.)
- Field-adjustable pressure switch gauge provides cylinder depletion warning signal
- Altos 2 remote alarm provides audible and visible warnings of cylinder depletion
- Integral check valve (in optional hose) inlet gland eliminates internal contamination during cylinder change
- Stainless steel bracket allows flexible mounting options
Related Products
529 Series Protocol Monitor Station
Single station manifold with remote pressure monitor for high purity gas applications
WARNING: This product can expose you to chemicals including Lead, Chromium, Nickel, and 1-3 Butadiene, which are known to the state of California to cause cancer, birth defects, or other reproductive harm. And, this product can expose you to chemicals including Bisphenol A (BPA) which is known to the State of California to cause female reproductive harm. For more information go to www. PSWarnings.ca.gov.
Monel® is a registered trademark of Huntington Alloys Corporation; Altos 2™ is a registered trademark of Controls Corporation of America
