529 Series Protocol Purge Station
Single station manifold with process purge for high purity gas applications

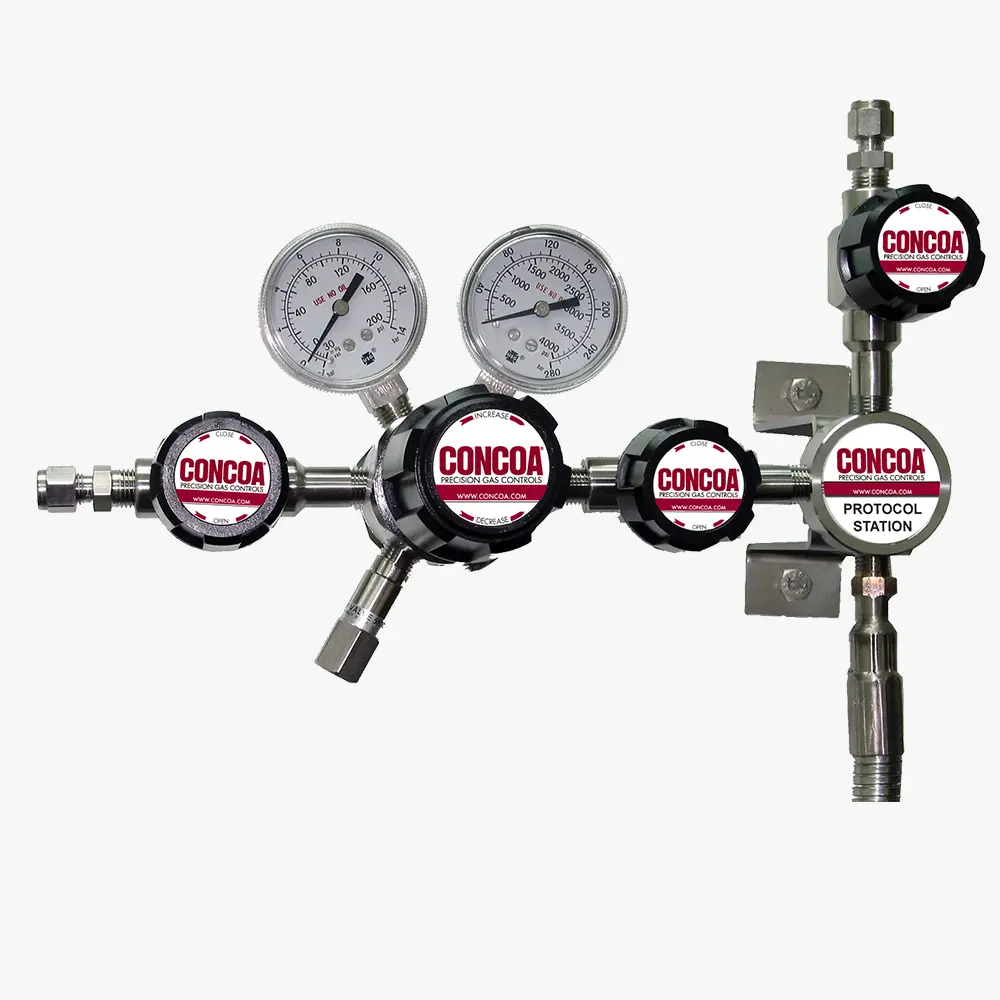

5290176-01-580 shown with regulator
The 529 Series Protocol Purge Station combines all the safety and convenience of a standard protocol station with a feature to purge the hose and inlet side of the regulator. The protocol purge station allows isolation of the regulator inlet and is equipped with a purge valve at the 12 o'clock position on the mounting block to safely pipe away the process gas during purging if required. This station comes complete with a mounting block and bracket, two 533 Series diaphragm valves, and 3 ft (900 mm) stainless steel hoses with armor casing. CONCOA Protocol Purge Stations are available in brass, chrome-plated brass, 316L stainless steel, or Silicon CVD coated stainless steel, and may be used with many CONCOA regulators with a maximum inlet pressure of 3000 PSIG (210 BAR). To order the CONCOA 529 Series Protocol Purge Station with regulator installed at the factory, add the letter "Q" after any regulator part number (e.g. To order a 4327332-01-580 regulator with a factory-installed protocol purge station, the part number would be 4327332-01-580Q).
- Regulator isolation valve isolates regulator inlet during the purging process
- Purge valve with 1/4 in compression tube fitting allows complete and safe purging of the inlet
- Integral check valve (in optional hose) inlet gland eliminates contamination during cylinder change
- Stainless bracket allows flexible mounting options
