5690 Series Pipeline Regulator

Single stage regulator for medium heavy-duty industrial gas pipeline applications

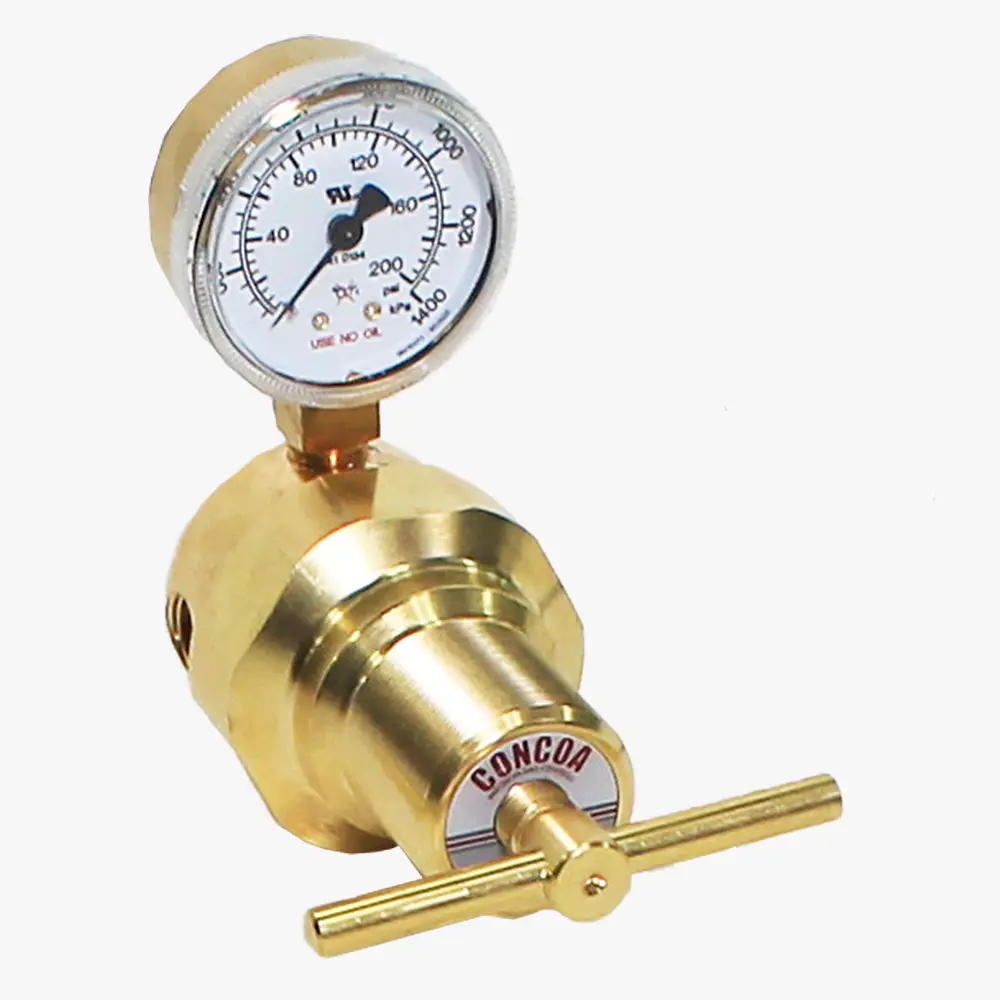

8065693-01-1 shown
Single stage regulator for medium heavy-duty industrial gas pipeline applications

The 5690 Series medium heavy-duty heating and cutting regulator provides steady pressure control and durability in general industrial pipeline applications. The rugged, forged brass construction enables high durability, while the encapsulated seat design provides accurate pressure control and an extended component lifecycle. Combined with a wide range of delivery pressures and mounting options for installation flexibility, the CONCOA 5690 Series regulator is ideal for many general industrial applications.

  • Heavy-duty brass bonnet ensures high durability and long life
  • Medium-large seat displacement supports high flow capacity
  • Chloroprene diaphragm maintains steady pressure control
  • CAPSULE® seat design provides maximum reliability and easy maintenance
  • Max inlet pressure (without peripherals): 3000 PSIG (210 BAR)
  • Body: Forged brass
  • Bonnet: Brass barstock
  • Gauge: 2 in (50 mm) diameter brass
  • Inlet/Outlet connections: 1/4 in FNPT
  • Seat: PTFE
  • Filter: 25-micron sintered bronze
  • Temperature range: -40°F to 140°F (-40°C to 60°C)
  • Diaphragm: Chloroprene
  • Cv: 0.2
  • Conformances: Cleanliness meets or exceeds CGA G-4.1; ANSI/ASME B40.1; CRN OH5216.5R2
