580 Series Molecular Sieve Filter

Molecular sieve filter for high-pressure, high purity applications

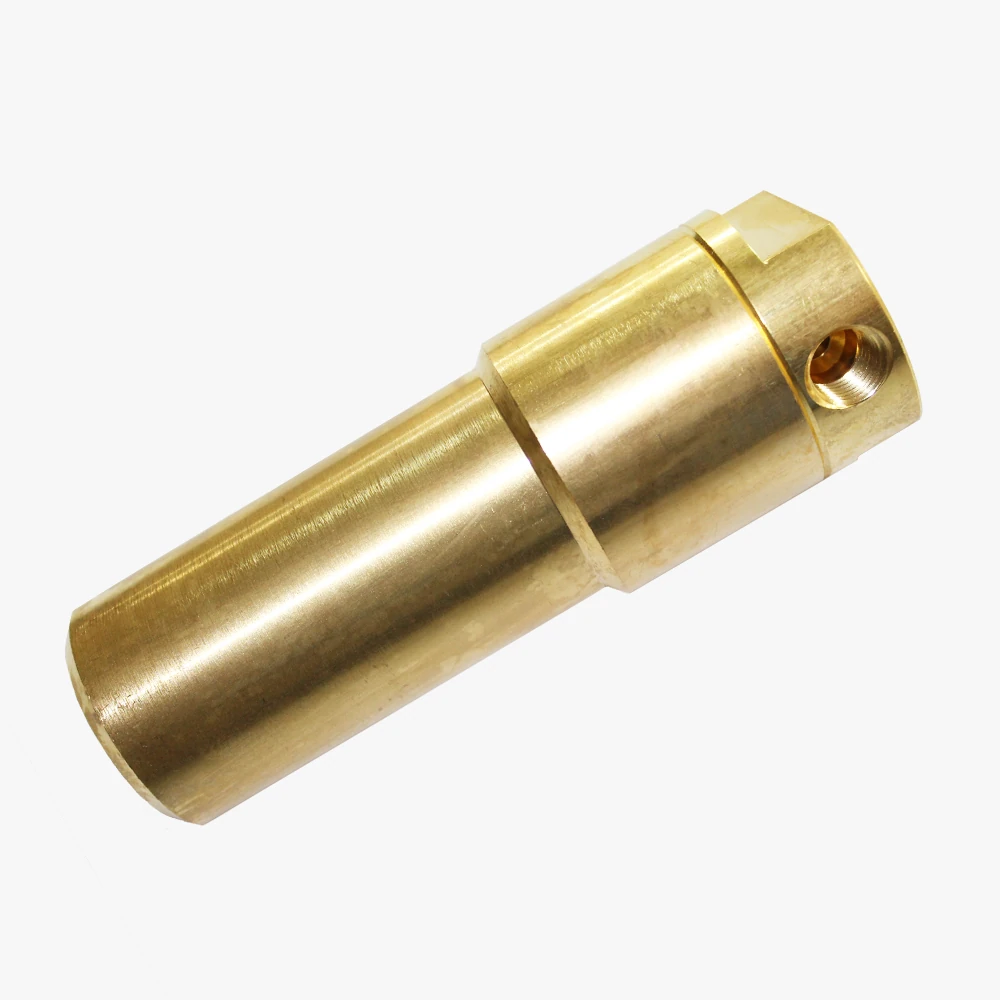

5801701 shown
Molecular sieve filter for high pressure, high purity applications

The 580 Series Molecular Sieve Filter is designed for use in high pressure, high purity laser gas systems to prevent the possible introduction of oil, water, or other contaminants into lasing or purge gas streams. It is not uncommon to find varying levels of these impurities in some industrial gases and occasionally even in specialty carrier gases. The molecular sieve filter housing must be used in conjunction with the specially designed replaceable cartridges. Replacement cartridges 5801723, 5801733, and 5801753 are filled with various adsorbents, and replacement cartridge 5801743 contains a 5-micron sintered bronze filter element for particulate removal. The CONCOA 580 Series replaceable cartridge molecular sieve filter is useful in many industrial and laboratory applications where the introduction of moisture or contaminants may result in poor performance or equipment shutdown.

  • Buna-N® seal resists abrasions and tears
  • Replaceable cartridges provide economical and effective gas filtration
  • Hermetically sealed packaging ensures full retention of capacity in storage until time of use
  • Body: Brass barstock
  • Seals: Buna-N
  • Inlet/Outlet: 1/4 in FNPT
  • Pressure drop: 2.4 PSIG (0.16 BAR) @ 3 SCFM (85 lpm) Air
  • Max inlet pressure: 3000 PSIG (210 BAR); 500 PSIG (35) for oxygen
  • Max operating temperature: -40°F to 165°F (-40°C to 74°C)
  • Weight (with cartridge): 1.5 lb (0.68 kgs)
◂ scroll to see more ▸
Part Number Description Catalyst
5801701 Molecular Sieve Filter Housing for use in High-Pressure, High Purity Laser Gas Systems Prevents Moisture Into Gas Stream, for Applications up to 3000 PSIG (210 BAR) N/A
5801723 Variable Trap Cartridge for 5801701, Aluminum Housing and 6.5 g Absorption Capacity for Water 13X Mole Sieve
5801733 Variable Trap Cartridge for 5801701, Aluminum Housing and 7.2 g Absorption Capacity for Water 4A Mole Sieve
5801743 Variable Trap Cartridge for 5801701, Aluminum Housing and 99.5% Efficiency of Particulate Removal 5-micron Sintered Bronze
5801753 Variable Trap Cartridge for 5801701, Aluminum Housing and 7.2 g Absorption Capacity for Propane (Removes C₃ and Up) Activated Charcoal
◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
Filters and Valves Catalog Page
English
LASF1
J
