6000 Series Gas Filter

Micron in-line and tee filter for high pressure, high purity gas systems

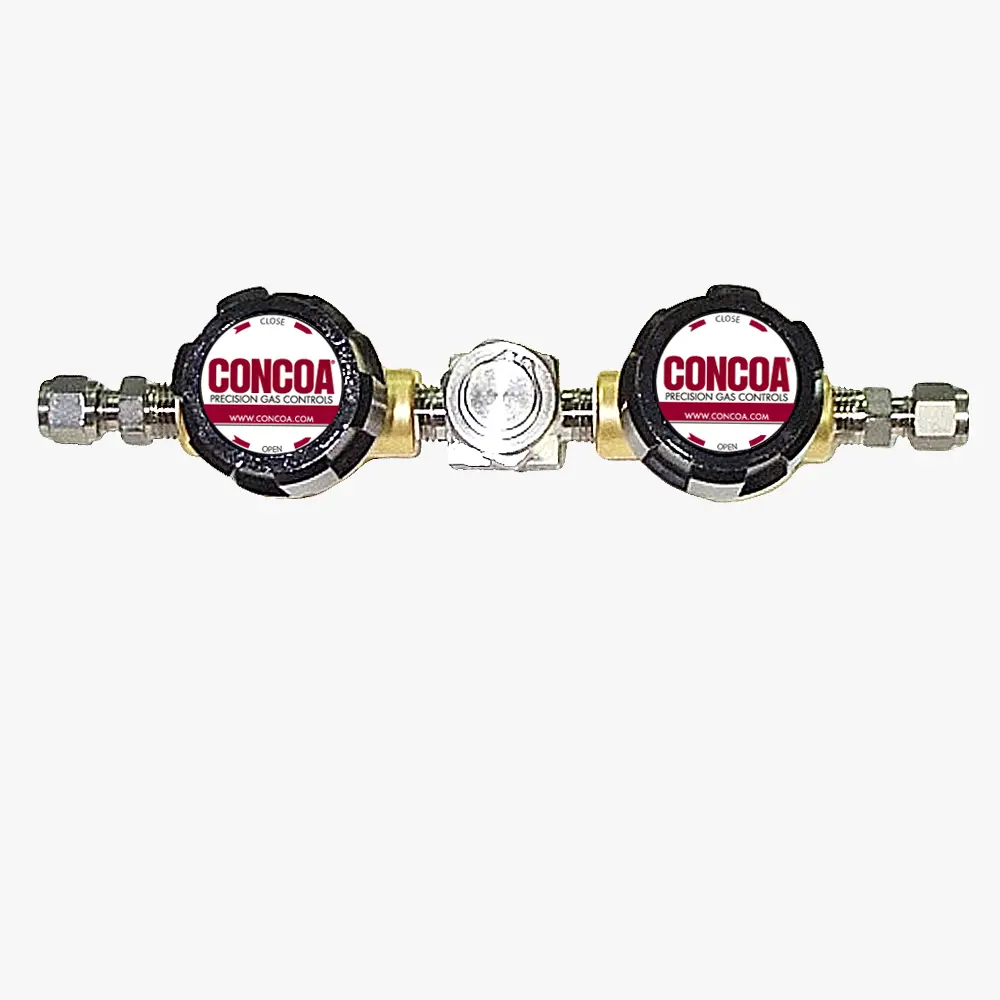

5806001-01-001 shown
Micron in-line and tee filter for high pressure, high purity gas systems

The 6000 Series Gas Filter is designed to remove particulate contaminants in gas where space is limited (in-line) or maintained while still in the system (tee-type). To minimize downtime and improve efficiency, the filter element can be replaced without removing the filter body from the system.

  • Compact size permits use even where space is limited
  • Filter elements as small as 2-micron provides superb filtration efficiency
  • Replaceable filter element maintains system cleanliness
  • Maximum flow capacity (5806001): 138 SCFH (65 LPM) @ 10 PSIG Nitrogen
  • Maximum flow capacity (5806002 and 5806003): 240 SCFH (113 LPM) @ 10 PSIG Nitrogen
◂ scroll to see more ▸
Part Number Description Max Working Pressure
5806001-01-001 2-Micron Brass Tee Filter Assembly with 1/4 in Tube Fittings, Isolation Valve on Inlet and Outlet 1000 PSIG (70 BAR)
5806001-01-M06 2-Micron Brass Tee Filter with 6 mm Tube Fittings, Isolation Valve on the Inlet and Outlet 1000 PSIG (70 BAR)
5806002 40-Micron Brass Tee Filter Assembly with 1/2 in FNPT Valve Inlet and 1/2 in MNPT Outlet 2000 PSIG (137 BAR)
5806003 40-Micron Stainless Steel Tee Filter Assembly with 1/2 in FNPT, 90° Elbow Inlet and 1/2 in MNPT Outlet 4500 PSIG (310 BAR)
8300317 2-Micron Brass Tee Filter Assembly with 1/4 in MNPT Inlet and Outlet 1000 PSIG (70 BAR)
8300318 Replacement 2-Micron Filter Element for 5806001 and 8300317 N/A
8308989 Replacement 40-Micron Filter Element for 5806002, 5806003, 8308990 and 8309830 N/A
8308990 40-Micron Stainless Steel Tee Filter Assembly with 1/2 in MNPT Inlet and Outlet 6000 PSIG (413 BAR)
8308999 Replacement 40-Micron Filter Element for 5806001 and 8300317 N/A
8309830 40-Micron Brass Tee Filter Assembly with 1/2 in MNPT Inlet and Outlet 2000 PSIG (137 BAR)
◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
Particulate Filter Assembly Catalog Page
English
LAFILTER
J
Download
Micron Filter Assembly Instructions (5806001)
English
ADI3205
B
Download
Micron Filter Assembly Instructions (5806002~ 5806003)
English
ADI3216
B
