580 Series Trap

Trap and purifier system for specific contaminants in laboratory and industrial gas applications

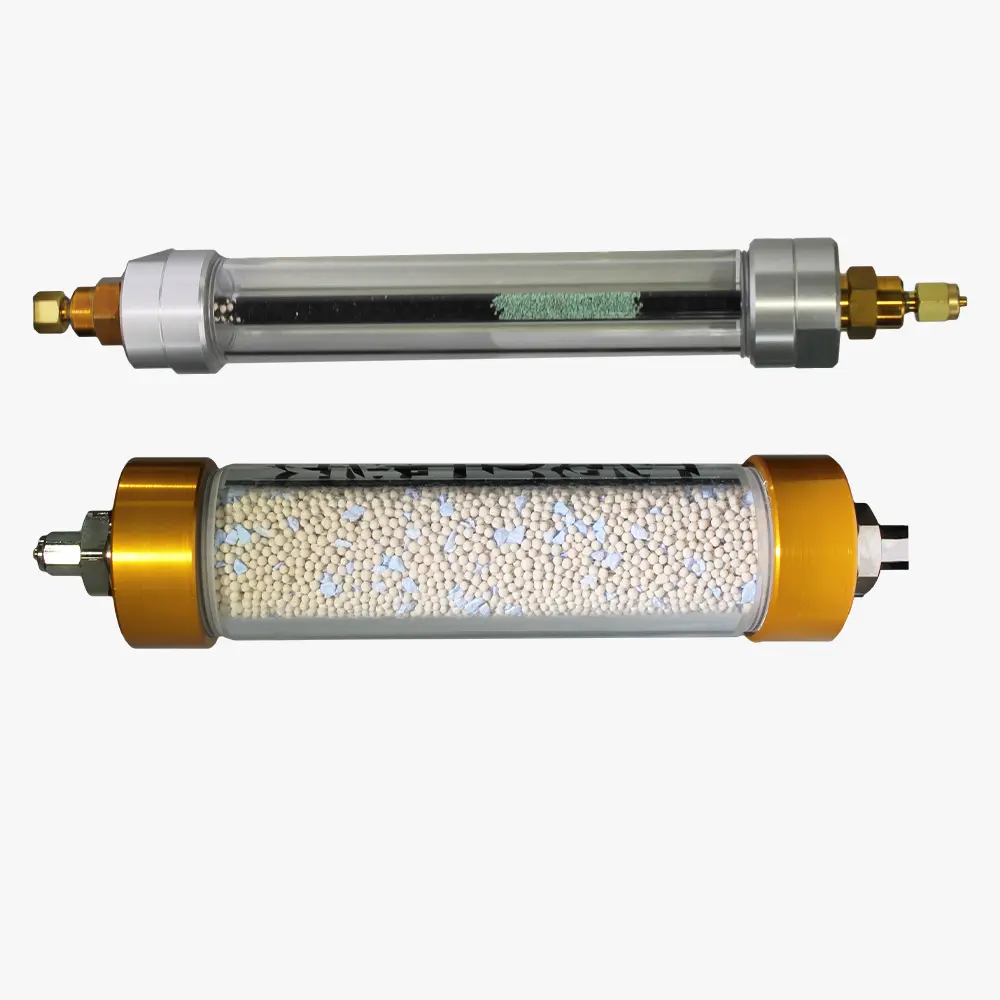

5801608 and 5801805 shown
Trap and purifier system for specific contaminants in laboratory and industrial gas applications

The 580 Series Gas Trap uses a catalyst to remove specific contaminants such as moisture, hydrocarbons, or oxygen that may threaten applications where the gas must be clean and moisture-free. Clean gas delivered to analytical instruments ensures the ability to produce consistent and reliable results. To optimize contamination removal, the gas trap should be installed in the vertical position to prevent channeling. Additionally, they should be replaced or refilled before they become fully saturated. CONCOA offers the 580 Series gas trap in several configurations ideally suited to serve a variety of analytical applications.

  • Wide range of sizes and configurations protect gas delivery systems across a variety of analytical applications
  • Indicating oxygen traps alert user when adsorption capacity is depleted by changing color as it absorbs oxygen
  • Moisture traps with refillable filters provide economical and effective gas purification
◂ scroll to see more ▸
Part Number Description Max Operating Pressure Catalyst
5801602 Oxygen Trap with Aluminum Housing, 1/8 in Compression Tube Fitting, 135 ml Removal Capacity (at normal flow rate), and 212°F (100°C) Max Operating Temperature 125 PSIG (8 BAR) 13X Mole Sieve
5801604 Oxygen Trap with Aluminum Housing, 1/4 in Compression Tube Fitting, 135 ml Removal Capacity (at normal flow rate), and 212°F (100°C) Max Operating Temperature 125 PSIG (8 BAR) 13X Mole Sieve
5801608 Indicating Oxygen Trap with Glass Housing, 1/8 in Compression Tube Fitting, 40 ml Removal Capacity, with 212°F (100°C) Max Operating Temperature 100 PSIG (7 BAR) Activated Metal
5801609 Indicating Oxygen Trap with Glass Housing, 1/4 in Compression Tube Fitting, 40 ml Removal Capacity, with 212°F (100°C) Max Operating Temperature 100 PSIG (7 BAR) Activated Metal
5801800 Refill for Moisture Traps 5801805 - 5801808 N/A 13X Mole Sieve
5801805 Moisture Trap with Cast Acrylic Housing, 1/8 in Compression Tube Fitting, Removal Capacity 29 g of Water from an Air Stream @ 1 atm, 10% RH and 68°F (20°C), and 100°F (37.7°C) Max Operating Temperature 120 PSIG (8.3 BAR) 13X Mole Sieve
5801806 Moisture Trap with Cast Acrylic Housing, 1/4 in Compression Tube Fitting, Removal Capacity 29 g of Water from an Air Stream @ 1 atm, 10% RH and 68°F (20°C), and , and 100°F (37.7°C) Max Operating Temperature 120 PSIG (8.3 BAR) 13X Mole Sieve
5801807 Moisture Trap with Cast Acrylic Housing, 1/8 in Compression Tube Fitting, Removal Capacity 58 g of Water from an Air Stream @ 1 atm, 10% RH and 68°F (20°C), and 100°F (37.7°C) Max Operating Temperature 120 PSIG (8.3 BAR) 13X Mole Sieve
5801808 Moisture Trap with Cast Acrylic Housing, 1/4 in Compression Tube Fitting, Removal Capacity 58 g of Water from an Air Stream @ 1 atm, 10% RH and 68°F (20°C), and 100°F (37.7°C) Max Operating Temperature 120 PSIG (8.3 BAR) 13X Mole Sieve
5801903 Hydrocarbon Trap with Cast Acrylic Housing, 1/8 in Compression Tube Fitting, 200 CC Filtering Media, 200 ml Removal Capacity, and 100°F (37.7°C) Max Operating Temperature 120 PSIG (8.3 BAR) Activated Carbon
5801904 Hydrocarbon Trap with Cast Acrylic Housing, 1/4 in Compression Tube Fitting, 200 CC Filtering Media, 200 ml Removal Capacity, and 100°F (37.7°C) Max Operating Temperature 120 PSIG (8.3 BAR) Activated Carbon
5801905 Hydrocarbon-Moisture Trap with Polycarbonate Housing, 1/8 in Compression Tube Fitting, 400 CC Filtering Media, 400 ml Removal Capacity, and 100°F (37.7°C) Max Operating Temperature 120 PSIG (8.3 BAR) Activated Carbon
5801906 Hydrocarbon Trap with Polycarbonate Housing, 1/4 in Compression Tube Fitting, 400 CC Filtering Media, 400 ml Removal Capacity, and 100°F (37.7°C) Max Operating Temperature 120 PSIG (8.3 BAR) Activated Carbon
◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
Traps Catalog Page
English
RSTRP
AG
