603 Series Pipeline Regulator

High flow pipeline regulator for industrial laser process gases

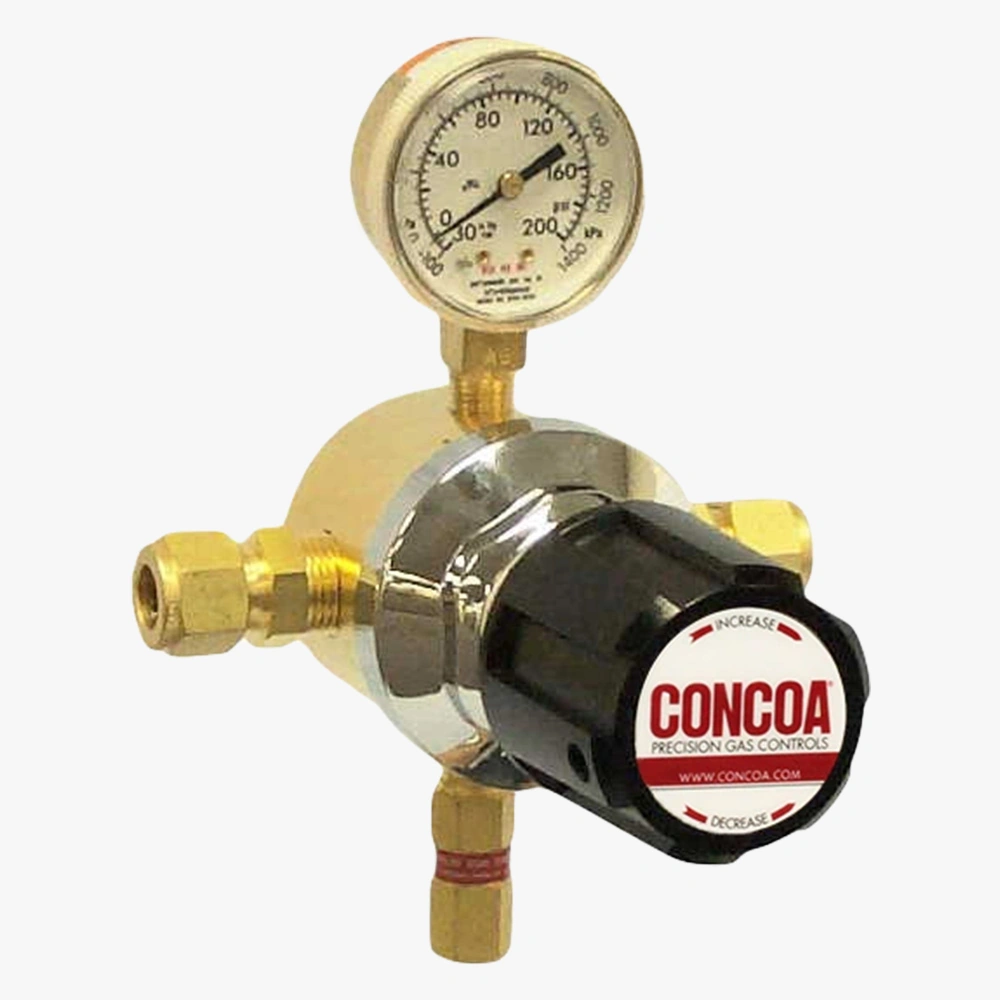

6033011-01-000 shown
603 Series high flow pipeline regulator

The 603 Series regulator is intended for secondary pressure control of laser pipeline applications with requirements up to 250 PSIG (17 BAR).

  • Stainless steel diaphragm ensures high purity design
  • 40-micron stainless steel internal filter limits the possibility of gas contamination
  • Balanced stem seat design provides steady pressure even with decaying inlet conditions
  • Max inlet pressure: 3000 PSIG (210 BAR)
  • Body: Brass barstock
  • Bonnet: Chrome-plated, die-cast zinc
  • Temperature Range: -40°F to 140°F (-40°C to 60°C)
  • Gauges: 2 in (50 mm) diameter brass
  • Inlet/Outlet connections: 1/2 in FNPT; 1/4 in FNPT (gauges)
  • Helium leak integrity: 1 x 10⁻⁸ scc/sec
  • Cv: 1.0
  • Seat: PCTFE
  • Filter: 40-micron 316L stainless steel
  • Diaphragm: 316L stainless steel
  • Internal seals: PTFE
  • Weight: 4.4 lbs (2 kgs)
  • Conformances: Cleanliness meets or exceeds CGA G-4.1; ANSI/ASME B40.1; CRN OH5216.5R2
◂ scroll to see more ▸

See catalog page for ordering information.

◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
603 Series Pipeline Regulators Catalog Page
English
LA603R
J
Download
Regulators, Reguladores, Détendeurs Installation and Operation Instructions
English, Spanish, French
ADI2062
M
Download
CRN File OH5216
English
CRNOH5216
26
