Compact Manifold Heater

Compact inline gas heater for carbon dioxide, argon, and nitrogen gas applications

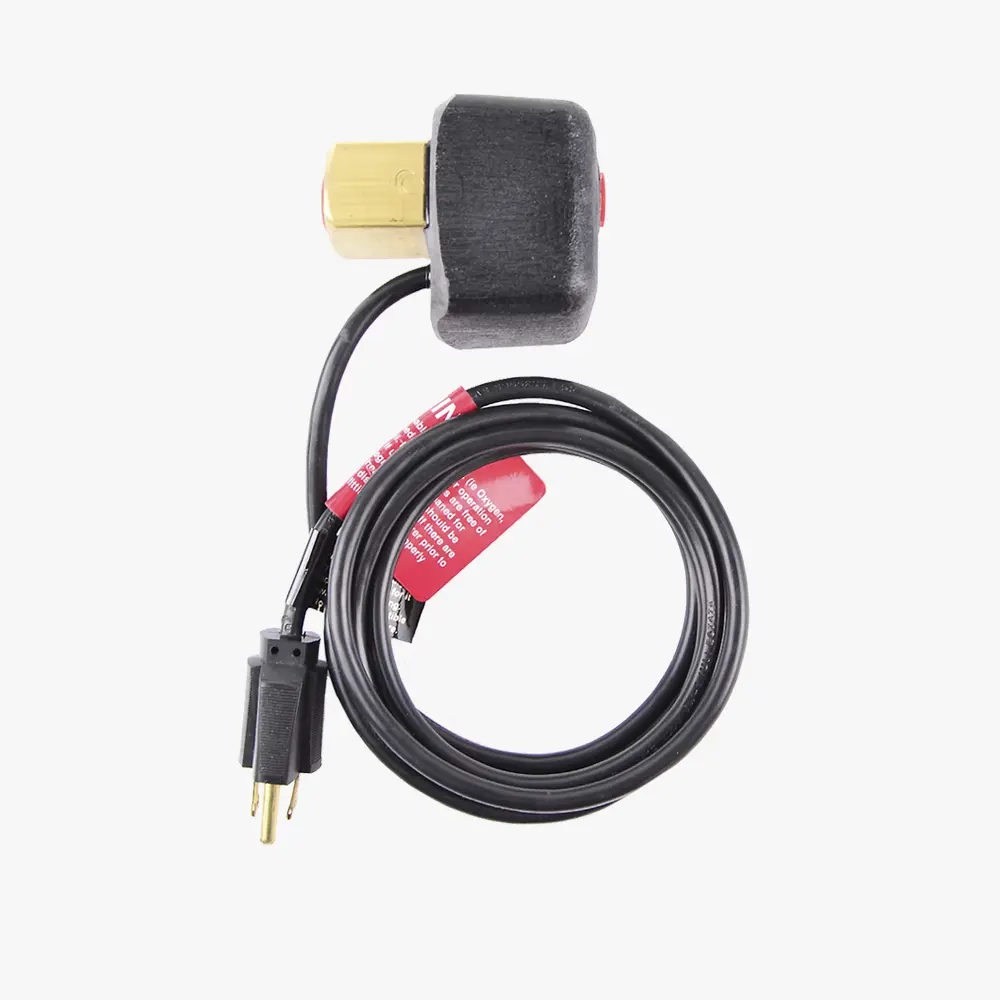

8514282 shown
Compact inline gas heater for carbon dioxide, argon, and nitrogen gas applications

Compact manifold heaters easily warm a variety of compressed gases to prevent equipment freeze-ups caused by high flow rates and warm conditions. Designed with flexibility in mind, optional fittings allow these compact gas heaters to work with a variety of tanks, regulators, and compressed gases.  They can be installed between manifold inlet connections and flexible hose outlets, or between the cylinder valve and a suitable regulator. Optional oxygen cleaned models are available to meet industry-specific standards.

  • Thermostatically controlled at 160°F (70°C) process temperature prevents overheating the gas
  • Internal, brass-bodied heating element optimizes gas flow without freeze-ups
  • Sturdy outer jacket insulates heater for added safety
  • Max operating pressure: 3000 PSIG (210 BAR)
  • Max flow rate: 160 SCFH (2.5 SCFM)
  • Temperature setting: 160°F ±5°F (70°C ± -15°C )
  • Connections: 1/4 in FNPT
  • Dimensions: 4 in L x 2 in X 2 in
  • Cord length: 5.5 ft (170 cm)
  • Weight: 2 lbs (0.9 kgs)
◂ scroll to see more ▸
Part Number Description
8514281 Compact Inline Gas Heater, 120 Volts (1 amp), Oxygen Cleaned
8514282 Compact Inline Gas Heater, 120 Volts (1 amp), Not Oxygen Cleaned
8514283 Compact Inline Gas Heater, 240 Volts (0.5 amp), Oxygen Cleaned
8514284 Compact Inline Gas Heater, 240 Volts (0.5 amp), Not Oxygen Cleaned
◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
Compact Gas Heater Catalog Page
English
RSCHeat
AH
