Cylinder Scale

Electronic cylinder scale for use with all liquefied gas applications

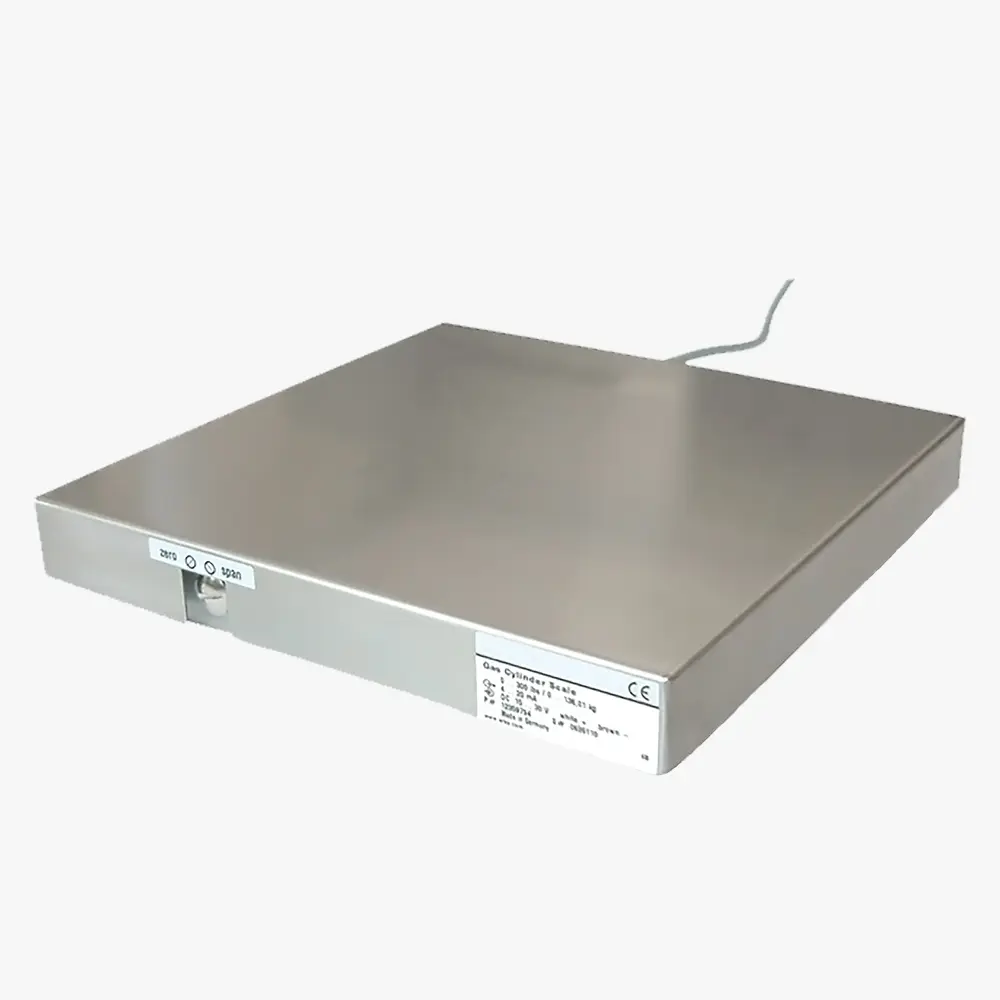

5180121-01-001 shown

Gas Cylinder Scale for use with liquefied gas applications and chemical gas delivery systems when running out of gas will cause a serious disruption in operation or a loss of product. They are designed for hazardous and non-hazardous applications, indoor and outdoor use, and in gas cabinets or process systems.

Features

Compact design provides high accuracy and temperature stability
High ingress protection of case permits outdoor use and processes with heavy condensation
High overload and EMC rating ensures safe, error-free, and accurate operation
Optional ramp allows cylinders to roll easily on and off scale platform

Specifications

Materials: IP65 stainless steel (case and base plate)
Sensor: Aluminum
Accuracy: ±0.1% full scale
Measuring range: 0 lbs - 300 lbs (0 kg - 136 kg)
Output signal: 4-20mA
Weight: 13 lbs (6 kg)
Conformances: CE approved (case); EU compliant

Ordering Information

◂ scroll to see more ▸

Part Number	Description	Platform Dimensions
5180121-01-001	Electronic Cylinder Scale with 300 lb. (136 kg) Capacity	9 1/4 in x 9 1/4 in
5182105-01-001	Single Cylinder Ramp, Rubber	2.5 in rise x 24 in depth x 14.875 in width
5182105-01-002	Pair of Cylinder Ramps, Rubber	2.5 in rise x 24 in depth x 14.875 in width
