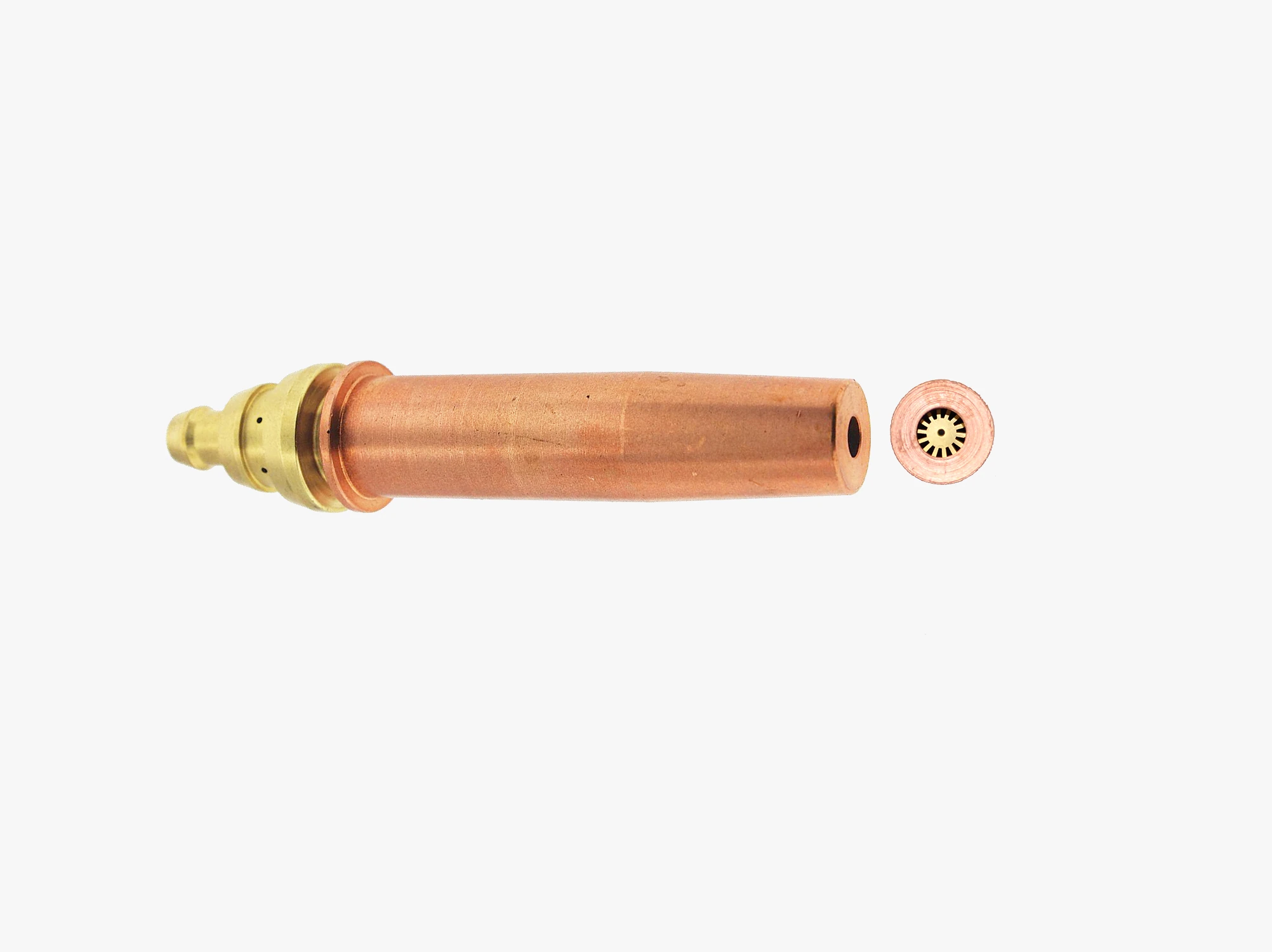

Style 319 Cutting Tip

Two-piece, natural gas and propane machine cutting tip
Style 319 Two-piece, natural gas and propane machine cutting tip

CONCOA Style 319 two-piece, hand or machine cutting tip is identical to Style 219 cutting tip, except the cutting oxygen bore is diverged to allow higher cutting oxygen pressure for increased speed in machine cutting operation. Style 319 cutting tip is suitable for cutting plate up to 4 inches (10.2 cm) with natural gas or propane. For plate over 4 inches (10.2 cm), CONCOA Style 219 cutting tip may be used.

Note: Style 319 two-piece cutting tips are no longer available. Please see Style 275 Two-Piece Cutting Tips and refer to the Ordering Information matrix for comparable tip sizes and specifications.

◂ scroll to see more ▸
Part Number Tip Size Drill Size Material Thickness Speed Oxygen Natural Gas Propane
8133190-00-1 #0 68 (.031 in) 3/8 in (0.9 cm) 20-22 IPM 70 PSIG/62 SCFH 2-4 PSIG/25-33 SCFH 2-3 PSIG/11-14 SCFH
8133191-00-1 #1 62 (.038 in) 1/2 in (1.3 cm) 18-22 IPM 80 PSIG/115 SCFH 3-5 PSIG/30-40 SCFH 3-4 PSIG/12-16 SCFH
8133191-00-1 #1 62 (.038 in) 5/8 in (1.6 cm) 18-21 IPM 85 PSIG/121 SCFH 3-5 PSIG/30-40 SCFH 3-4 PSIG/12-16 SCFH
8133192-00-1 #2 56 (.046 in) 1 in (2.5 cm) 18 IPM 95 PSIG/133 SCFH 3-5 PSIG/30-40 SCFH 3-4 PSIG/12-16 SCFH
8133193-00-1 #3 54 (.055 in) 1 in (3.5 cm) 16 IPM 90 PSIG/186 SCFH 4-8 PSIG/35-45 SCFH 4-5 PSIG/14-18 SCFH
8133194-00-1 #4 52 (.063 in) 2 in (6.4 cm) 12 IPM 90 PSIG/270 SCFH 4-8 PSIG/35-45 SCFH 4-5 PSIG/14-18 SCFH
8133195-00-1 #5 49 (.073 in) 3 in (7.6 cm) 11 IPM 90 PSIG/380 SCFH 5-7 PSIG/40-50 SCFH 5-6 PSIG/16-20 SCFH
8133195-00-1 #5 49 (.073 in) 4 in (10.2 cm) 10 IPM 90 PSIG/380 SCFH 5-7 PSIG/40-50 SCFH 5-6 PSIG/16-20 SCFH
◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
Safe Practices in Oxy-Fuel Welding and Cutting Brochure
English
ADE0872
AE
