Style 219 Cutting Tip

Two-piece, natural gas and propane cutting tip

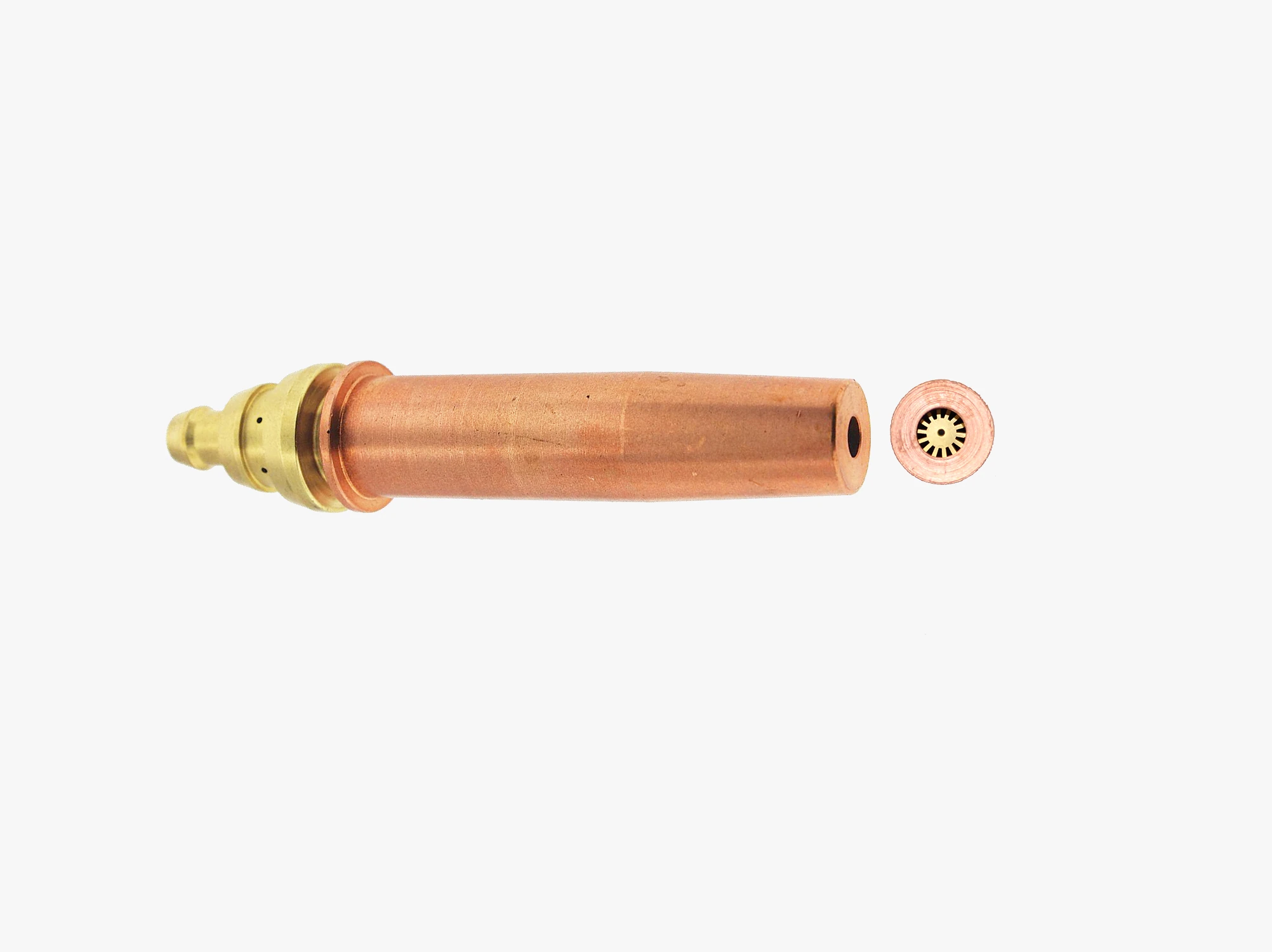

8132190-00-1 shown
Style 219 two-piece, natural gas and propane cutting tip

CONCOA Style 219 two-piece, hand or machine cutting tip is suitable for cutting up to 14 inches (35.5 cm) with natural gas or propane. This precision-made tip features excellent preheat flames and a cutting Oxygen stream or "Stinger®" design which is significantly better than with conventional cutting tips. Tip sizes 00 through 5 feature a 22° "V" spline for maximum heat transfer and flame stability. Sizes 6, 7, and 8 employ a 36° "V" spline for increased gas flows and extra secondary flame length required on thicker plate.

Note: Style 219 two-piece cutting tips are no longer available. Please see Style 275 Two-Piece Cutting Tips and refer to the Ordering Information matrix for comparable tip sizes and specifications.

◂ scroll to see more ▸
Part Number Tip Size Drill Size Material Thickness Speed Oxygen Natural Gas Propane
8132189-00-1 #00 72 (.025 in) 1/4 in (0.64 cm) 20-24 IPM 35 PSIG/65 SCFH 2-4 PSIG/18 SCFH 2 PSIG/8 SCFH
8132190-00-1 #0 68 (.031 in) 3/8 in (0.9 cm) 19-23 IPM 40-45 PSIG/86-115 SCFH 3-5 PSIG/25 SCFH 3 PSIG/11 SCFH
8132191-00-1 #1 62 (.038 in) 1/2-5/8 in (1.3-1.6 cm) 19-23 IPM 45-55 PSIG/115-137 SCFH 3-5 PSIG/28 SCFH 3 PSIG/12 SCFH
8132192-00-1 #2 56 (.046 in) 3/4-1 in (1.9-2.5 cm) 14-19 IPM 50-55 PSIG/177 SCFH 3-5 PSIG/28 SCFH 3 PSIG/12 SCFH
8132193-00-1 #3 54 (.055 in) 1 1/2 in (3.8 cm) 12-16 IPM 50-55 PSIG/235 SCFH 4-7 PSIG/30 SCFH 4 PSIG/14 SCFH
8132194-00-1 #4 52 (.064 in) 2-2 1/2 in (5 - 6.4 cm) 9-13 IPM 50-55 PSIG/300 SCFH 4-7 PSIG/30 SCFH 4 PSIG/14 SCFH
8132195-00-1 #5 49 (.073 in) 3-4 in (7.6 - 10.2 cm) 8-11 IPM 50-55 PSIG/365-392 SCFH 5-8 PSIG/35 SCFH 5 PSIG/16 SCFH
8132196-00-1 #6 39 (.99 in) 6 in (15.2 cm) 5-8 IPM 60 PSIG/610 SCFH 5-8 PSIG/35 SCFH 5 PSIG/16 SCFH
8132196-00-1 #6 39 (.99 in) 8 in (20.3 cm) 4-6 IPM 65 PSIG/635 SCFH 5-8 PSIG/35 SCFH 5 PSIG/16 SCFH
8132197-00-1 #7 30 (.129 in) 10 in (25.4 cm) 3-5 IPM 65 PSIG/900 SCFH 5-8 PSIG/50 SCFH 6 PSIG/18 SCFH
8132197-00-1 #7 30 (.129 in) 12 in (30.5 cm) 3-5 IPM 70 PSIG/975 SCFH 5-8 PSIG/50 SCFH 6 PSIG/18 SCFH
8132198-00-1 #8 18 (.169 in) 14 in (35.5 cm) 2-4 IPM 70 PSIG/1290 SCFH 5-8 PSIG/50 SCFH 6 PSIG/18 SCFH
◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
Safe Practices in Oxy-Fuel Welding and Cutting Brochure
English
ADE0872
AE
